Cisco TEO Adapter Guide for SAP Java
OL-24781-02
Chapter 3 Using SAP Java Activities
Defining Start Java Service Activity
Step 6 Click the Save tool to complete the activity definition.
Viewing Start Java Service Results
When the Start Java Service activity is executed, results are displayed in the Operations workspace
activity instance view.
Step 1 In the Operations workspace, expand the Activity Views folder and then click the view that represents
how the process was executed (for example, View Adhoc if the process was manually executed).
Step 2 In the results pane, expand the process, and double-click the activity instance or right-click and choose
Properties.
Step 3 On the Start Java Service Properties dialog box, review the activity results in the State field on the
General tab.
Step 4 Click the Start Java Service tab to view the activity properties.
Step 5 Click the Result tab to view error messages if the activity failed.

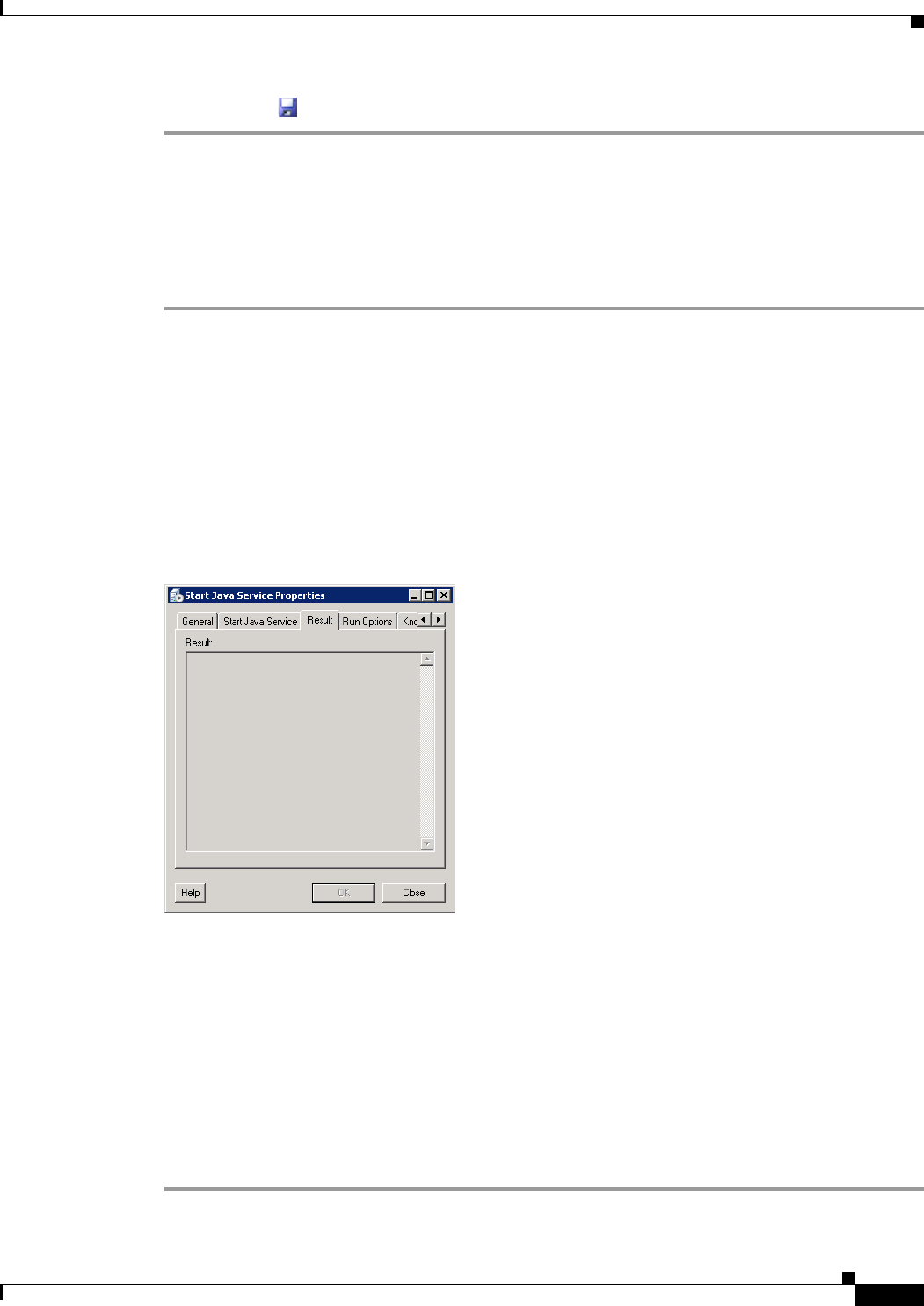

Figure 3-19 Start Java Service Properties—Result Tab
When the Start Service activity instance is executed properly, no result message is returned. If there is
any error, it will return an error message. For example, if the service name is not correct, then an error
message similar to the following displays:
>startservice test
[Shell -> STARTSERVICE] Could not start the service 'test'!
[Shell -> STARTSERVICE] Reason :
com.sap.default:name=test,j2eeType=SAP_J2EEServicePerNode,SAP_J2EEClusterNode=8865151,SA
P_J2EECluster=NW1 not in repository
Step 6 Click Close to close the dialog box.
