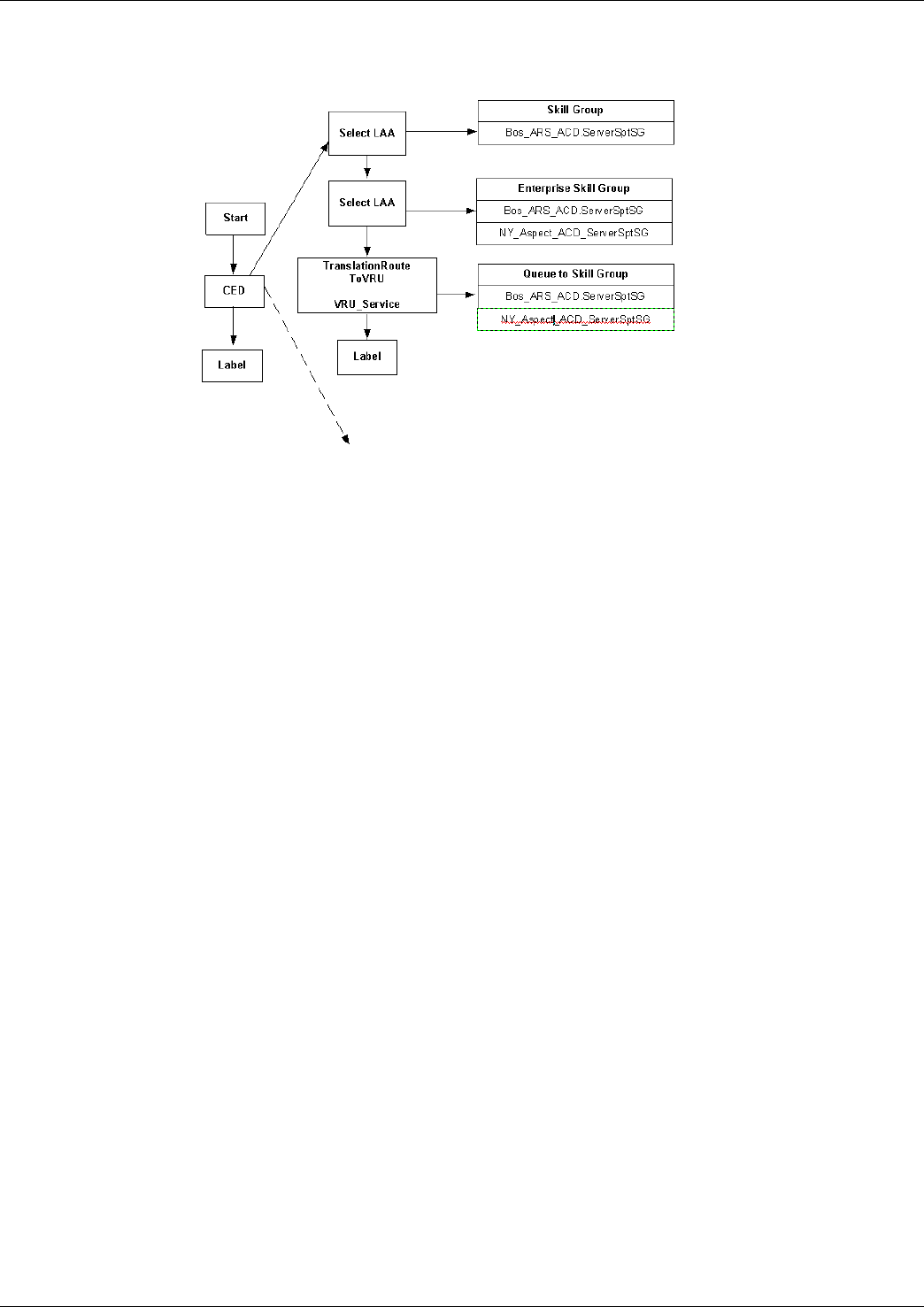

Figure 12: Sample Script for Hybrid Routing
The script above is used for the following:
1. The script is associated with a Call Type to route support calls. The call type is used to
define the treatment provided by the call centers.
2. The script uses Caller entered digits (CED) to determine the skill group (Laptop Support
or Server Support) required to handle the call.
3. The script uses the LAA (longest available agent) node to look for an available at a
particular call center. In this case the call may have arrived at Boston call center, and you
prefer to look for an available agent from that call center first.
4. If an agent is not available, the script uses the LAA (longest available agent) node to look
for an available agent across the enterprise.
5. If an agent is not available, the script instructs the ICM software to translation route the
call to the VRU and queue the call (Enterprise queuing)
6. Depending on the call center where there is an available agent the ICM software does the
following:
–
If an agent is available at the New York call center, the call routes to the Aspect
ACD. The ACD at the site then picks an agent and assigns the call.
–
If an agent is available at the Boston (ARS) call center, the Unified ICM software
selects the agent and provides instructions to the routing client (VRU) to direct the
call to the agent.
Reporting Guide for Cisco Unified ICM Enterprise & Hosted Release 7.2(1)
56
Chapter 3: Understanding Routing and Queuing
Deployments with Hybrid Routing
