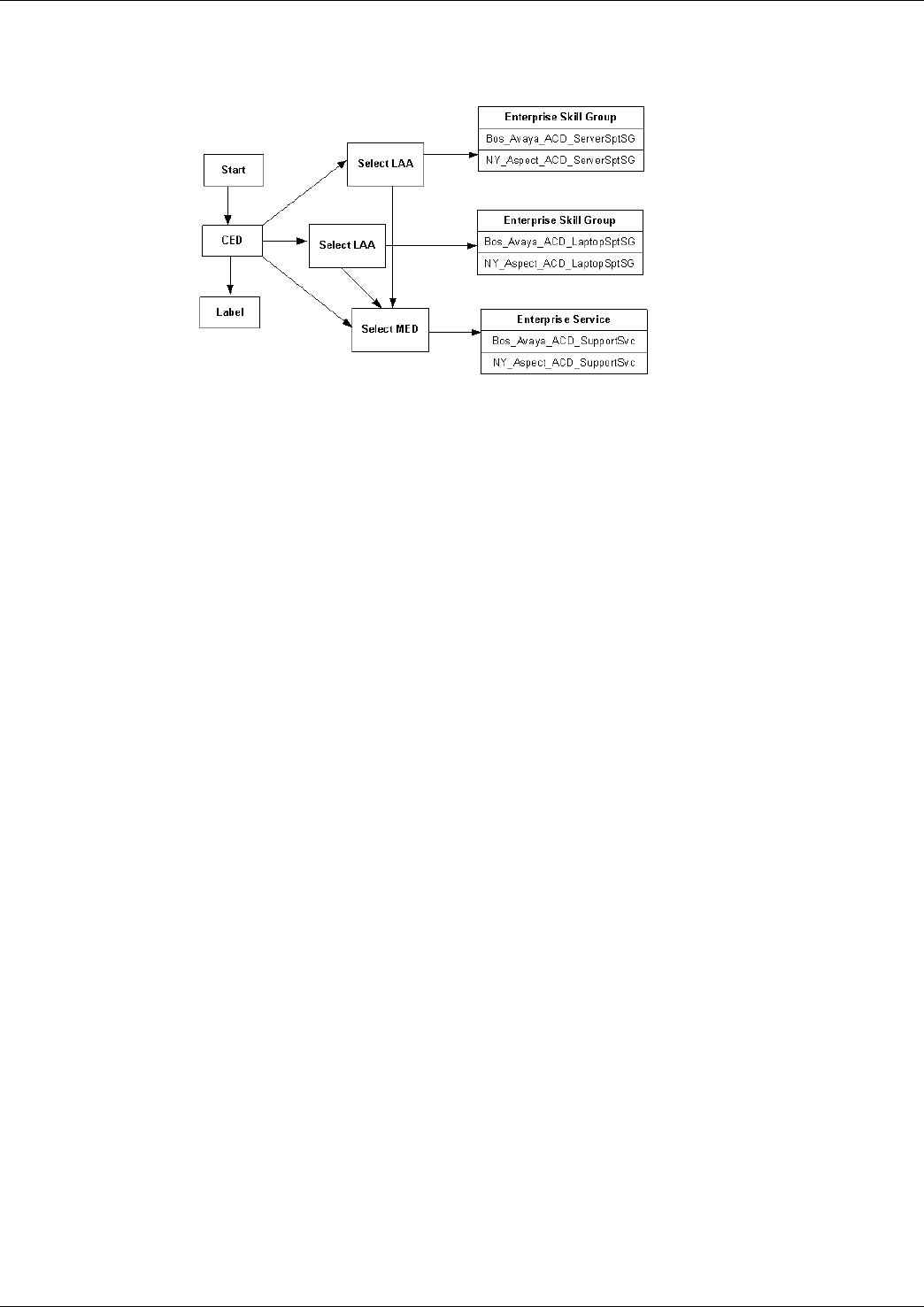

Figure 10: Sample Script for Enterprise Routing
The script illustrated above shows an example of pre-routing and ACD queuing, processed as
follows:
1. The script is associated with a Call Type to route Support calls.
2. The script uses caller entered digits (CED) to determine the skill group (Laptop Support
or Server Support) required to handle the call and/or the Service treatment (Support)
required by the caller.
3. The script uses the LAA (longest available agent) node to look for an available agent
across the enterprise who can handle the call.
Unified ICM software routes the call to the call center site that has an available agent. The
ACD at that site picks an agent and assigns the call.
4. If an agent is not available, the script uses the MED (Minimum Expected Delay) node to
select a site that can handle the call with minimum delay.
Once the site with the least expected wait time is selected, the call is routed to the ACD
at that site.
After the call arrives on the ACD, call treatment is provided by the ACD. If an agent is
available, the ACD assigns the call to that agent.
If an agent is not available, the ACD will queue the call to skill group to wait for an
available agent.
Reporting Considerations
This section is an overview of reporting categories to use to meet the reporting needs for your
enterprise in this deployment.
Two key factors that affect reporting are:
Reporting Guide for Cisco Unified ICM Enterprise & Hosted Release 7.2(1)
45
Chapter 3: Understanding Routing and Queuing
Deployments with Enterprise Routing
