Figure 6: ICM Data Environment
Real-Time Data
In real-time, each PG passes current status information to Unified ICM software. This current
(real-time) data, which is kept in the Router's memory, includes data about agents, skill groups,
services, Call Types, trunk groups, and other entities.
Every 15 seconds (by default), the Router forwards the current (in-memory) data to the Distributor
Admin Workstation, where it is stored on a number of real-time tables in the local Admin
Workstation databases and distributed to the Client AWs.
Old real-time data is constantly overwritten by new real-time data.

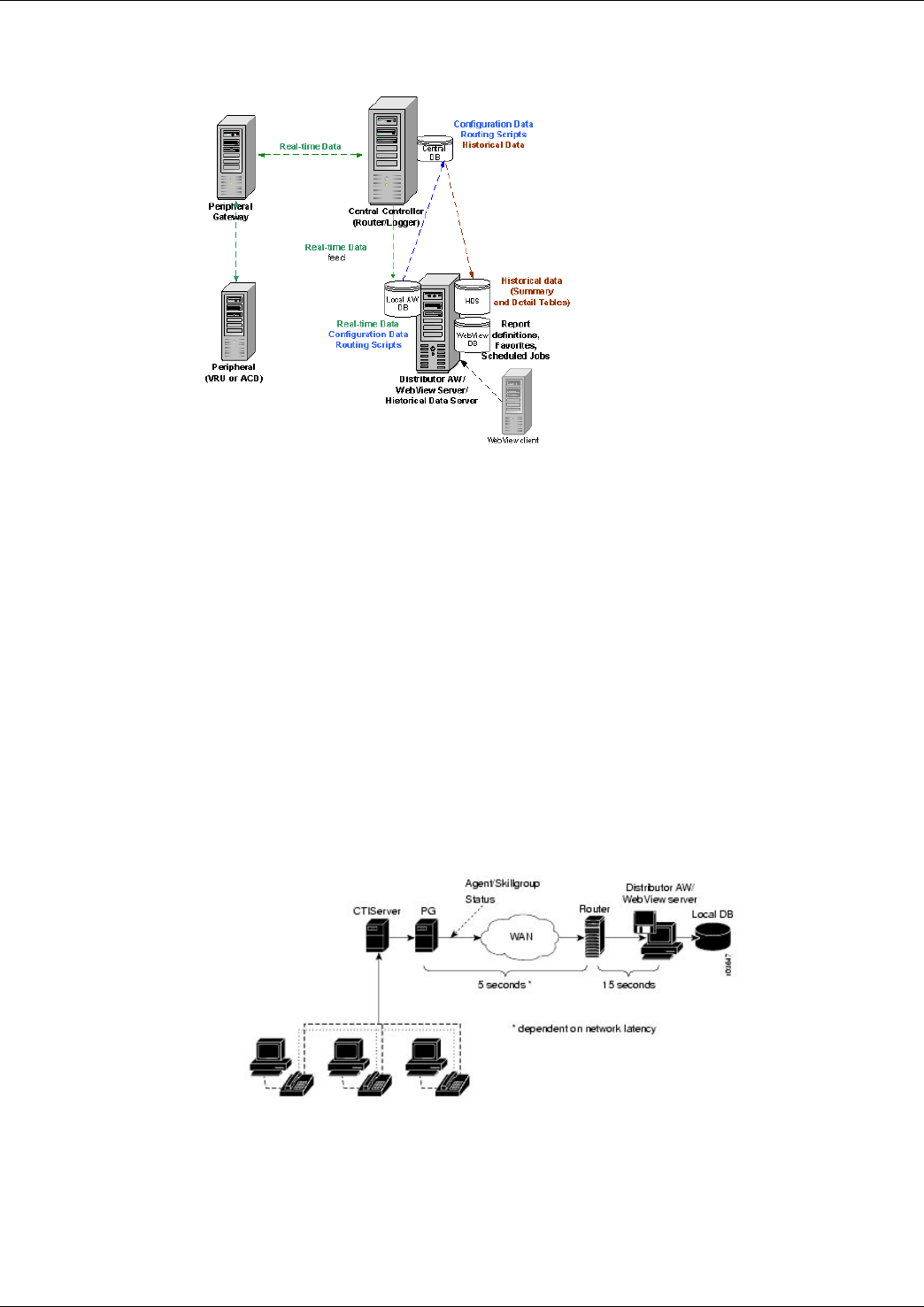

The illustration below illustrates how real-time data moves from the peripherals to the Router
to the local database at the Distributor Admin Workstation.
Figure 7: Real-Time Data Moves to AW Local Database
Real-time data is stored in tables in data fields that reflect four time increments, as described
below.
