Can have an HDS Database, if the HDS option is enabled at setup
•
Can also be a WebView Server (page 17)
•
Has all the Unified ICM AW tools
•
Acts as a data distributor to the other AW(s)
A Client AW has these characteristics:
•
Has all Unified ICM AW tools
•
Is not a real time distributor
•
Has no databases
•
Cannot be a WebView Server
•
Must point to a Distributor AW/HDS for configuration and real time data information

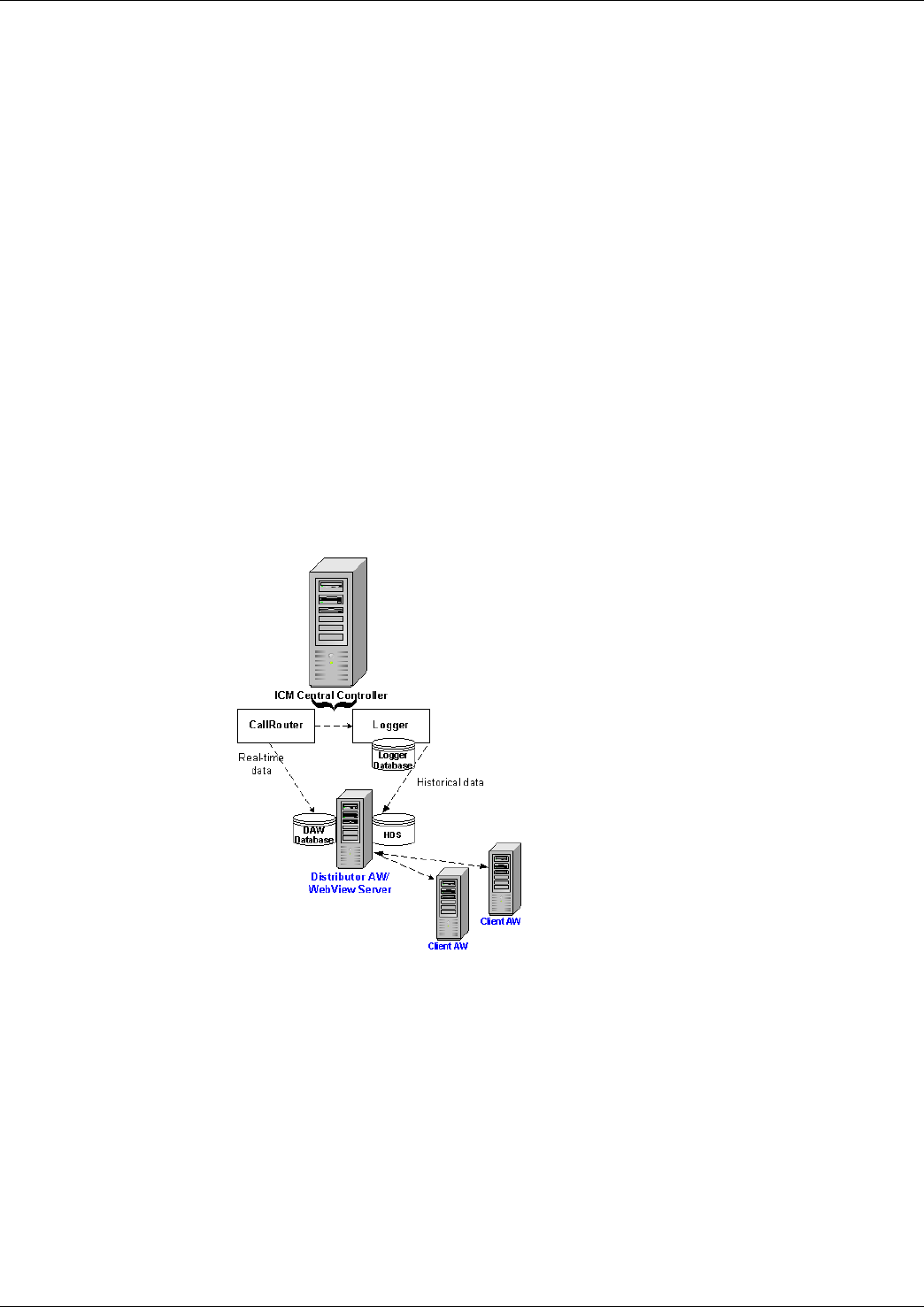

Figure 3: Administrative Workstation
Historical Data Server
An Historical Data Server (HDS) is required if you plan to use WebView historical reports. The
Historical Data Server (HDS) must reside on a Distributor Admin Workstation. It is enabled at
setup and created using the ICMDBA tool.
Note that as a fault-tolerant strategy, two Distributor AWs are typically set up at a site as HDS
machines, each with its own HDS database.
Reporting Guide for Cisco Unified ICM Enterprise & Hosted Release 7.2(1)
16
Chapter 1: System Architecture and Reporting
Historical Data Server
