Each transponder supports up to two CWDM or DWDM line SFP optics (plugged into the ports
labeled “NTWK1” and “NTWK2”) as well as two client SFP optics (plugged in the ports labeled
“EQPT1” and “EQPT2”). The range of Cisco SFP optics on the transponder supports any protocol
and speed between 155 Mbps and 2.488 Gbps.
The transponder is compatible with the passive Cisco CWDM chassis (Figure 3) (part number
CWDM-CHASSIS-2=). Two transponder devices can coexist together in the two-slot chassis.
There is no limit to the number of chassis that can be stacked in a rack. Alternatively, the
transponder can coexist in the same chassis with any Cisco CWDM passive filters.

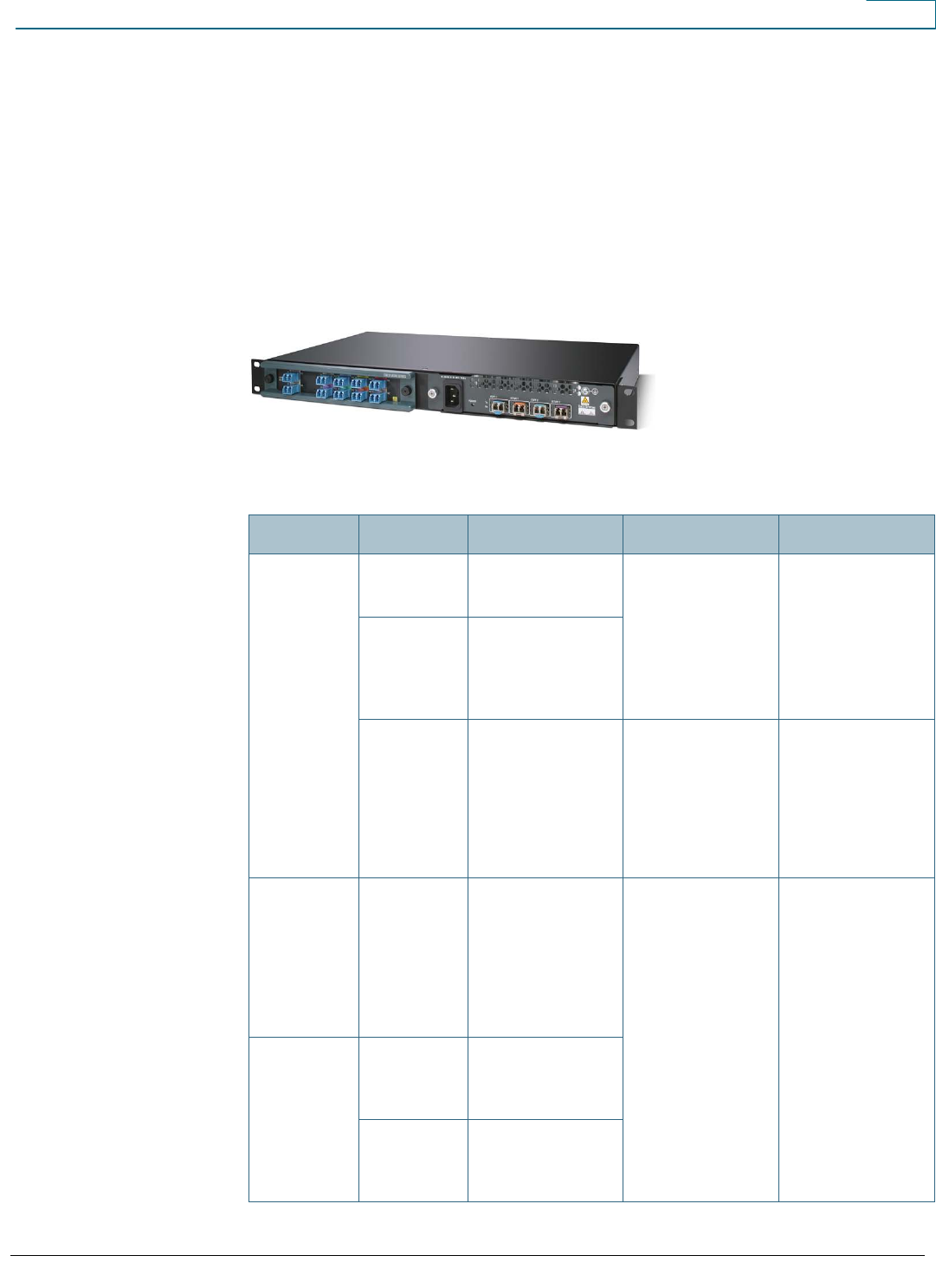

Figure 3. Cisco CWDM Chassis
Table 1 lists the compatible SFP optics required by each application.
Table 1. Supported SFP Optics and Applications
Client Protocol Bit Rate (Mbps)
Client SFP (Product
Number)
CWDM Line SFP
(Product Number)
DWDM Line SFP
(Product Number)
2488 SFP-OC48-SR
SFP-OC48-IR1
SFP-OC48-LR2
622 SFP-OC12-SR
SFP-OC12-IR1
SFP-OC12-LR1
SFP-OC12-LR2
SFP-OC12-MM
●
CWDM-SFP-1470=
●
CWDM-SFP-1490=
●
CWDM-SFP-1510=
●
CWDM-SFP-1530=
●
CWDM-SFP-1550=
●
CWDM-SFP-1570=
●
CWDM-SFP-1490=
●
CWDM-SFP-1610=
32 channels
●
DWDM-SFP-3033=
●
DWDM-SFP-3112=
–
●
DWDM-SFP-XXXX=
–
●
DWDM-SFP-5979=
●
DWDM-SFP-6061=
SONET/SDH
155 SFP-OC3-SR
SFP-OC3-IR1
SFP-OC3-LR1
SFP-OC3-LR2
SFP-OC3-MM
●
ONS-SE-155-1470=
●
ONS-SE-155-1490=
●
ONS-SE-155-1510=
●
ONS-SE-155-1530=
●
ONS-SE-155-1550=
●
ONS-SE-155-1570=
●
ONS-SE-155-1590=
●
ONS-SE-155-1610=
–
Gigabit Ethernet 1250 GLC-LH-SM=
GLC-SX-MM=
GLC-ZX-SM=
GLC-BX-D=
GLC-BX-U=
SFP-GE-L=
SFP-GE-S=
SFP-GE-Z=
1063 DS-SFP-FC-2G-LW=
ONS-SE-G2F-LX=
DS-SFP-FC-2G-SW=
ONS-SE-G2F-SX=
Fibre Channel
2125 DS-SFP-FC-2G-LW=
ONS-SE-G2F-LX=
DS-SFP-FC-2G-SW=
ONS-SE-G2F-SX=
●
CWDM-SFP-1470=
●
CWDM-SFP-1490=
●
CWDM-SFP-1510=
●
CWDM-SFP-1530=
●
CWDM-SFP-1550=
●
CWDM-SFP-1570=
●
CWDM-SFP-1490=
●
CWDM-SFP-1610=
32 channels
●
DWDM-SFP-3033=
●
DWDM-SFP-3112=
–
●
DWDM-SFP-XXXX=
–
●
DWDM-SFP-5979=
●
DWDM-SFP-6061=
