Private Network Traffic Management - LTE QoS Design and Configuration Scenarios

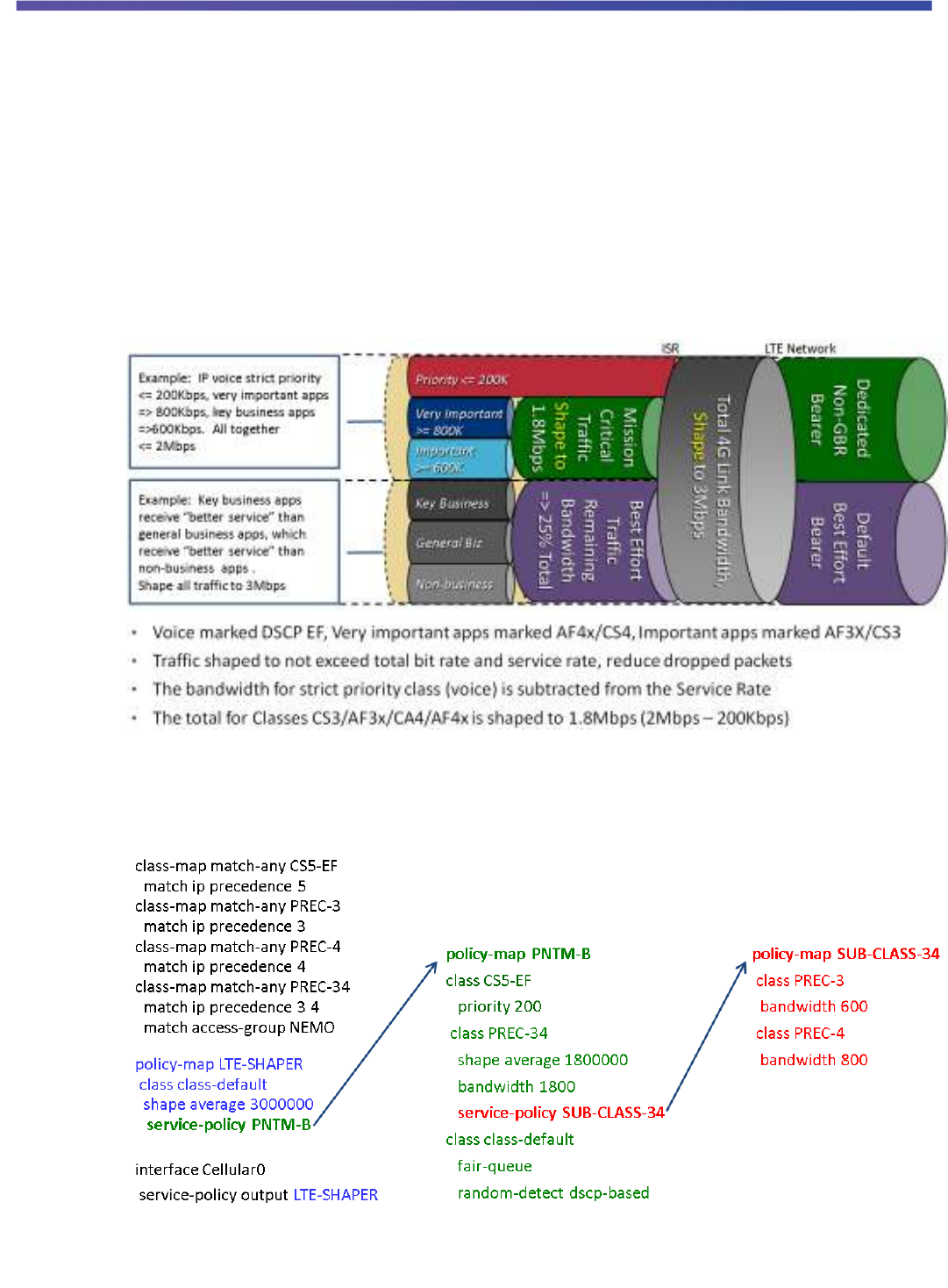

Typical Deployment: The following scenario may be seen in a typical deployment. After an ISR installation with
LTE site survey, downstream LTE performance may consistently exceed 10Mbps and upstream LTE total bit rate
may consistently exceed 3Mbps. Leveraging Verizon PNTM with the 2Mbps service rate, below is a feasible
logical and configuration model. It assumes 200Kbps of voice traffic (e.g. 5 simultaneous G.729 calls), a maximum
of 1.8Mbps of important traffic (CS3/AF3x/CS4/AF4x), with 2 important traffic sub-classes (CS3/AF3x, CS4/AF4x)
each of which is offered a minimum of 800Kbps and 600Kbps respectively. More granlular policies are feasible.
Ingress marking will not be shown as that is not specific to the LTE QoS egress deployment. It is assumed.
The ISR QoS egress policies depicted in the diagram below implement the logical design shown above.
