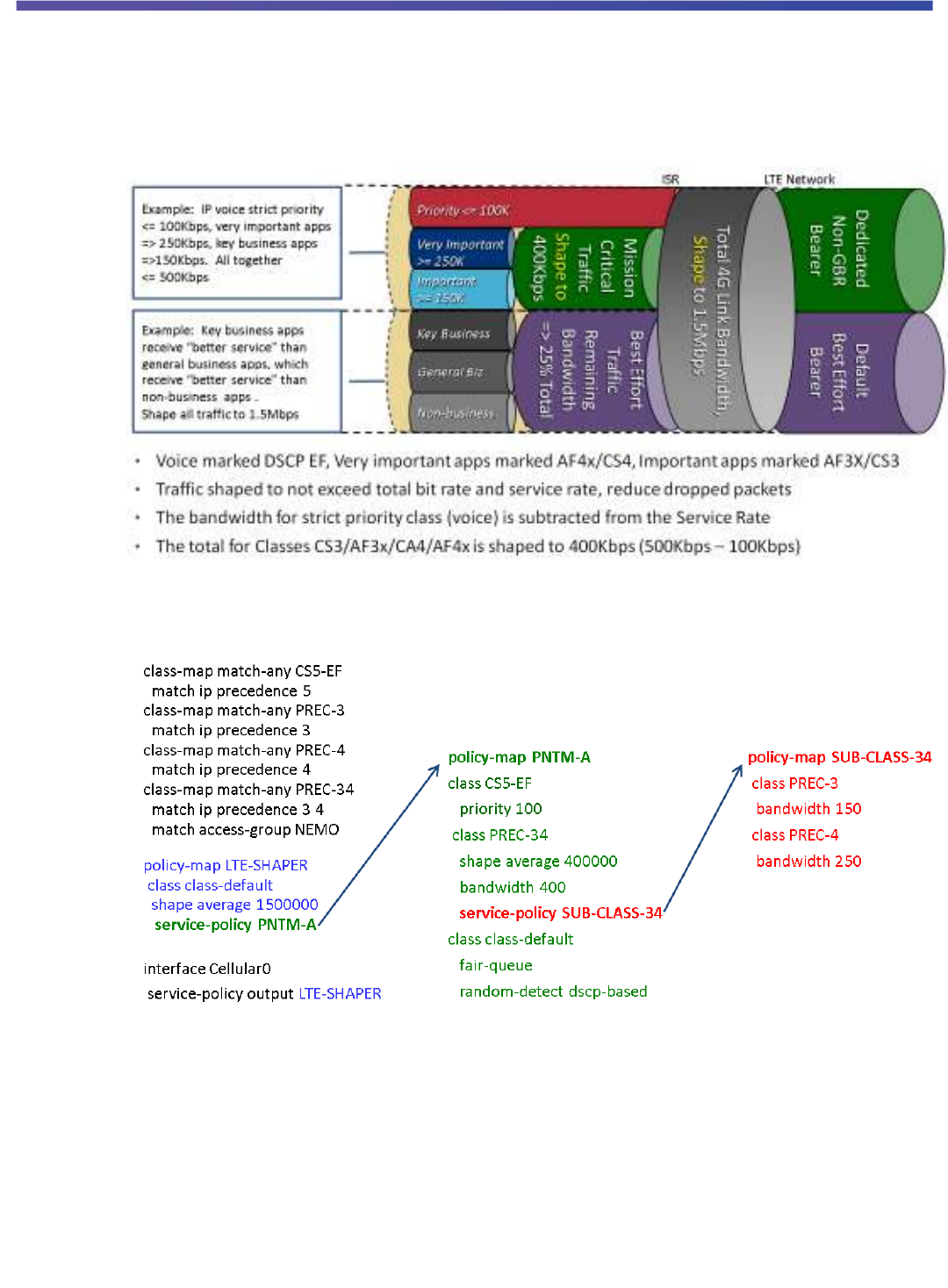

The diagram below depicts the logical QoS egress policy, assuming 1.5Mbps consistently achievable upstream
total LTE bit rate.
The ISR QoS egress policies depicted in the diagram below implements the logical design shown above.
There are three example configurations that follow, based on scenario above. Note that commands that do not
impact QoS and are optional or are included by default may not be included:
- LTE eHWIC (ISR 1900, 2900, 3900) and GRWIC (CGR2010)
- 800 series (C819(H)G-4G-V, C819G-4G-VZ, C819GW-LTE-MNA, C899G-LTE-VZ).
- LTE NIM (ISR 4321, 4331, 4451)
