2-20
Cisco ONS 15454 SDH Reference Manual, R7.0
October 2008
Chapter 2 Common Control Cards
2.6.2 XC-VXC-10G Card-Level Indicators

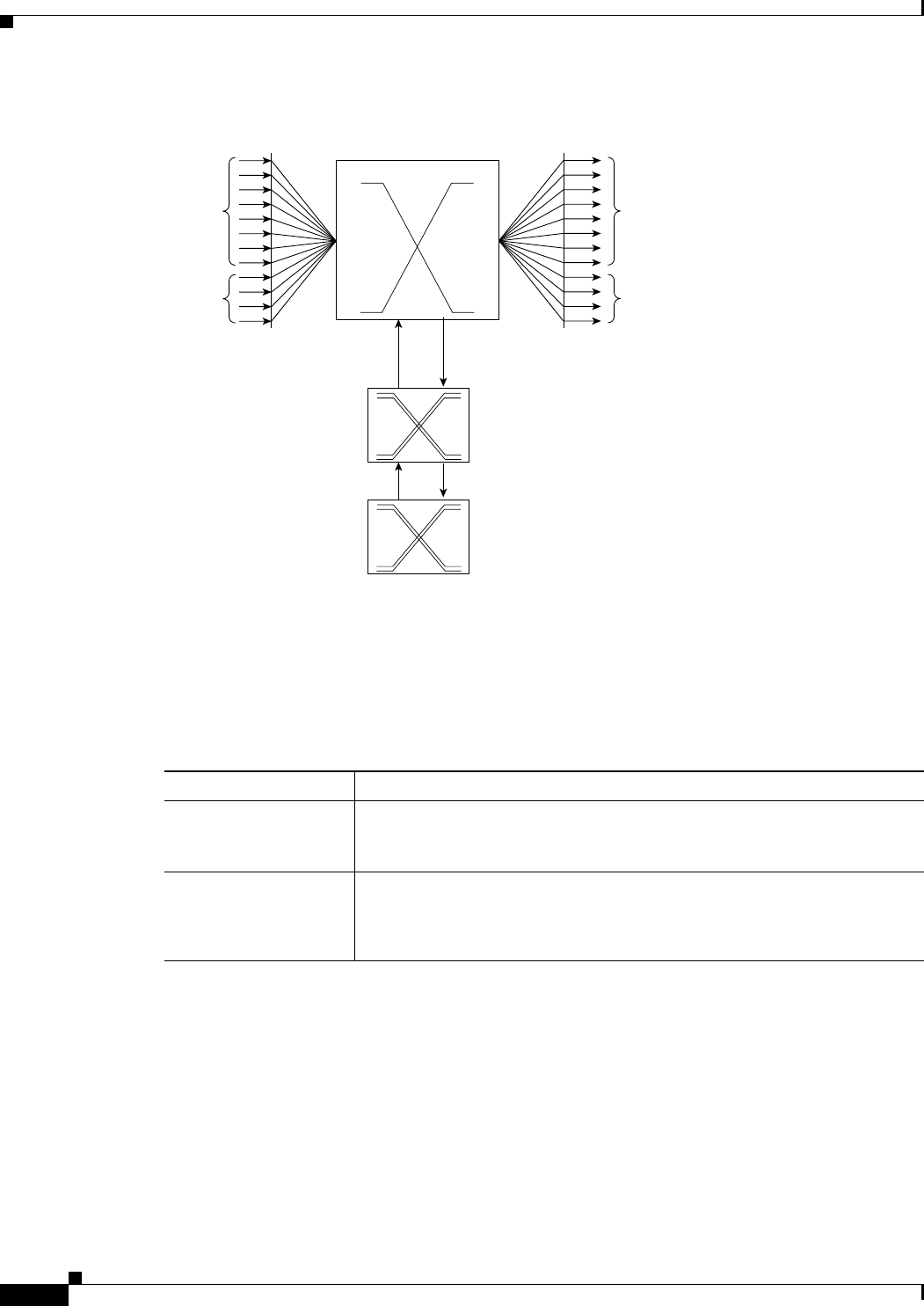

Figure 2-8 XC-VXC-10G Cross-Connect Matrix
2.6.2 XC-VXC-10G Card-Level Indicators
Table 2-17 describes the two card-level LEDs on the XC-VXC-10G faceplates.
2.6.3 XC-VXC-10G Compatibility
The XC-VXC-10G card supports the same features as the XC-VXL-10G and XC-VXL-2.5G cards. The
XC-VXC-10G card supports STM-64 operation.
If you are using Ethernet cards, the E1000-2-G or the E100T-G must be used when the XC-VXC-10G
cross-connect card is in use. When upgrading from an XC-VXL-10G card to an XC-VXC-10G card,
refer to the “Upgrade Cards and Spans” chapter in the Cisco ONS 15454 SDH Procedure Guide for more
information See also the “2.1.2 Card Compatibility” section on page 2-2.
1
2
.
.
.
.
20
Input Ports
Output Ports
4X
STM-64
8X
STM-16
8X
STM-16
4X
STM-64
XC-XVC-10G STM-1 Cross-connect ASIC (384x384 STM-1)
1
2
.
.
.
.
20
VTXC
TUXC
6X STM-16 (Aux Ports)
2X STM-16 (VT Ports)
134271
TU -11, TU-12 Cross-connect ASIC
TU-3 Cross-connect ASIC (uses all 8 STM-16 ports)
192 bidirectional TU-3 cross-connects
1008 bidirectional TU-12 cross-connects
1344 bidirectional TU-11 cross-connects
Table 2-17 XC-VXC-10G Card-Level Indicators
Card-Level Indicators Definition
Red FAIL LED Indicates that the cards processor is not ready. This LED illuminates during
reset. The FAIL LED flashes during the boot process. Replace the card if the
red FAIL LED persists.
ACT/STBY LED
Green (Active)
Amber (Standby)
Indicates whether the XC-VXC-10G is active and carrying traffic (green), or
in standby mode to the active XC-VXC-10G card (amber).
