15-38
Cisco ONS 15454 SDH Reference Manual, R7.0
October 2008
Chapter 15 Performance Monitoring
15.7.4 STM-16 and STM-64 Card Performance Monitoring Parameters

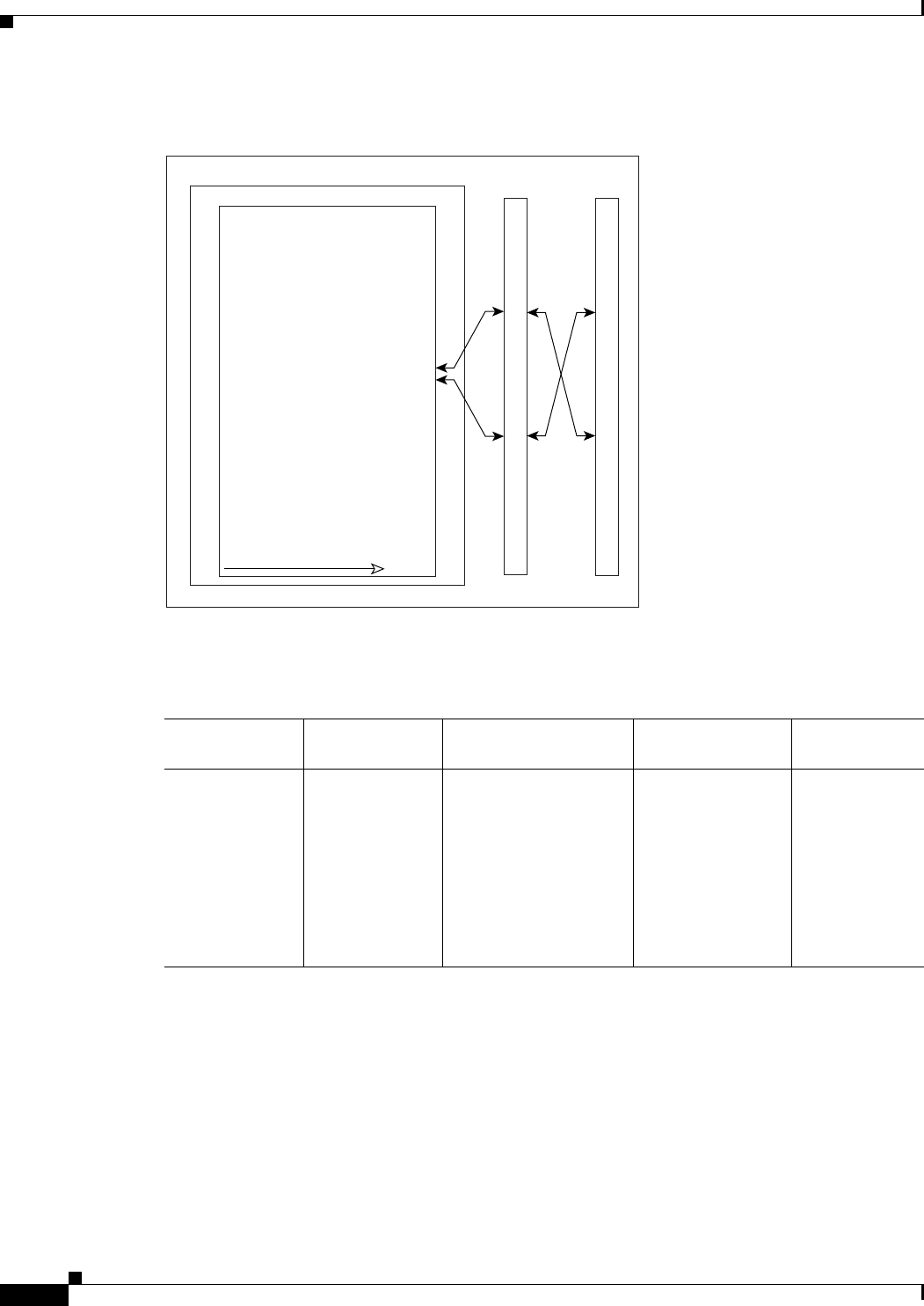

Figure 15-14 PM Read Points on STM-16 and STM-64 Cards
The PM parameters for STM-16 and STM-64 cards are listed Table 15-19.
ONS 15454 SDH
STM-16 and STM-64 Cards
BTC ASIC
Cross-Connect
Card
E1
RS-EB
RS-BBE
RS-ES
RS-SES
MS-EB
MS-BBE
MS-ES
MS-SES
MS-UAS
HP-PPJC-Pdet
HP-NPJC-Pdet
HP-PPJC-Pgen
HP-NPJC-Pgen
HP-EB
HP-BBE
HP-ES
HP-SES
HP-UAS
HP-ESR
HP-SESR
HP-BBER
PMs read on BTC ASIC
Note: The STM-16 and STM-64 have 1 port per card.
71107
Table 15-19 PM Parameters for STM-16 and STM-64 Cards
RS (NE/FE) MS (NE/FE) PSC (NE)
1
1. For information about troubleshooting SNCP switch counts, refer to the “Alarm Troubleshooting” chapter in the
Cisco ONS 15454 SDH Troubleshooting Guide. For information about creating circuits that perform a switch, see the
Chapter 11, “Circuits and Tunnels.”
PJC (NE)
2
2. In CTC, the count fields for HP-PPJC and HP-NPJC PM parameters appear white and blank unless they are enabled on the
Provisioning > Line tab. See the “15.3 Pointer Justification Count Performance Monitoring” section on page 15-4.
VC4 and VC4-Xc
HP Path (NE)
3
3. SDH path PM parameters do not increment unless IPPM is enabled. See the “15.2 Intermediate-Path Performance
Monitoring” section on page 15-3.
RS-BBE
RS-EB
RS-ES
RS-SES
MS-BBE
MS-EB
MS-ES
MS-SES
MS-UAS
MS-PSC (1+1)
MS-PSC (MS-SPRing)
MS-PSD
MS-PSC-W
MS-PSD-W
MS-PSC-S
MS-PSD-S
MS-PSC-R
MS-PSD-R
HP-PPJC-Pdet
HP-NPJC-Pdet
HP-PPJC-Pgen
HP-NPJC-Pgen
HP-PJCDiff
HP-PJCS-Pdet
HP-PJCS-Pgen
HP-BBE
HP-BBER
HP-EB
HP-ES
HP-ESR
HP-SES
HP-SESR
HP-UAS
