15-34
Cisco ONS 15454 SDH Reference Manual, R7.0
October 2008
Chapter 15 Performance Monitoring
15.7.2 STM-1E Card Performance Monitoring Parameters
15.7.2 STM-1E Card Performance Monitoring Parameters
Figure 15-9 shows where overhead bytes detected on the ASICs produce performance monitoring
parameters for the STM-1E card.

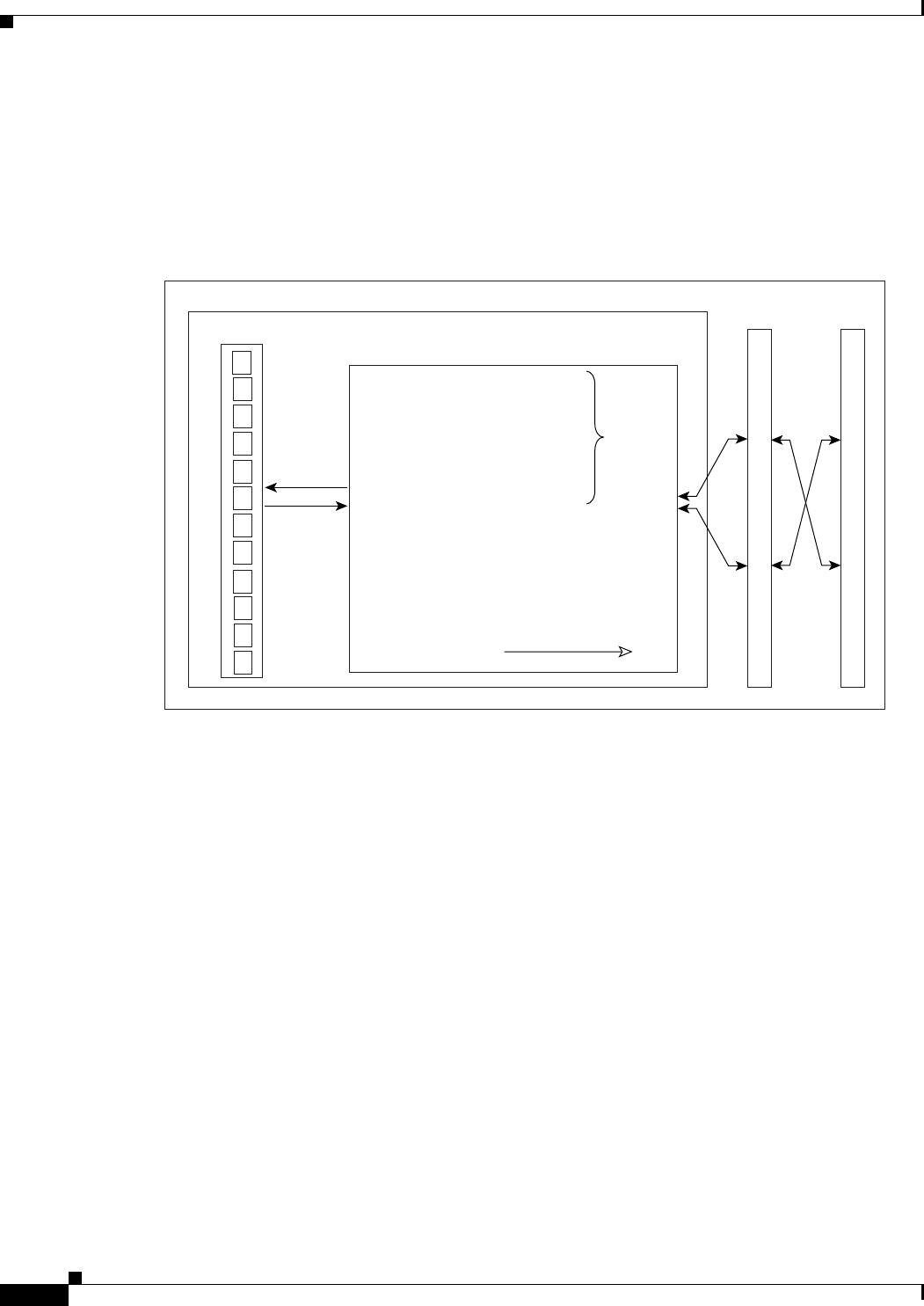

Figure 15-9 PM Read Points on the STM-1E Cards
Ports 9 to 12 can be provisioned as E4 framed from the Provisioning > Ports tabs. Figure 15-10 shows
the VC4 performance monitoring parameters in E4 mode.
110404
ONS 15454 SDH
STM-1E Card
Pointer Processors
OCEAN
ASIC
Cross-Connect
Card E1
RS-ES
RS-ESR
RS-SES
RS-SESR
RS-BBE
RS-BBER
RS-UAS
RS-EB
MS-ES
MS-ESR
MS-SES
MS-SESR
MS-BBE
MS-BBER
MS-UAS
MS-EB
High-
Order
Path
Level
HP-ES
HP-ESR
HP-SES
HP-SESR
HP-BBE
HP-BBER
HP-UAS
HP-EB
PMs read on OCEAN ASIC
MS-PPJC-Pdet
MS-NPJC-Pdet
MS-PPJC-Pgen
MS-NPJC-Pgen
