Chapter 13 Management Network Connectivity
13.3 Provisionable Patchcords

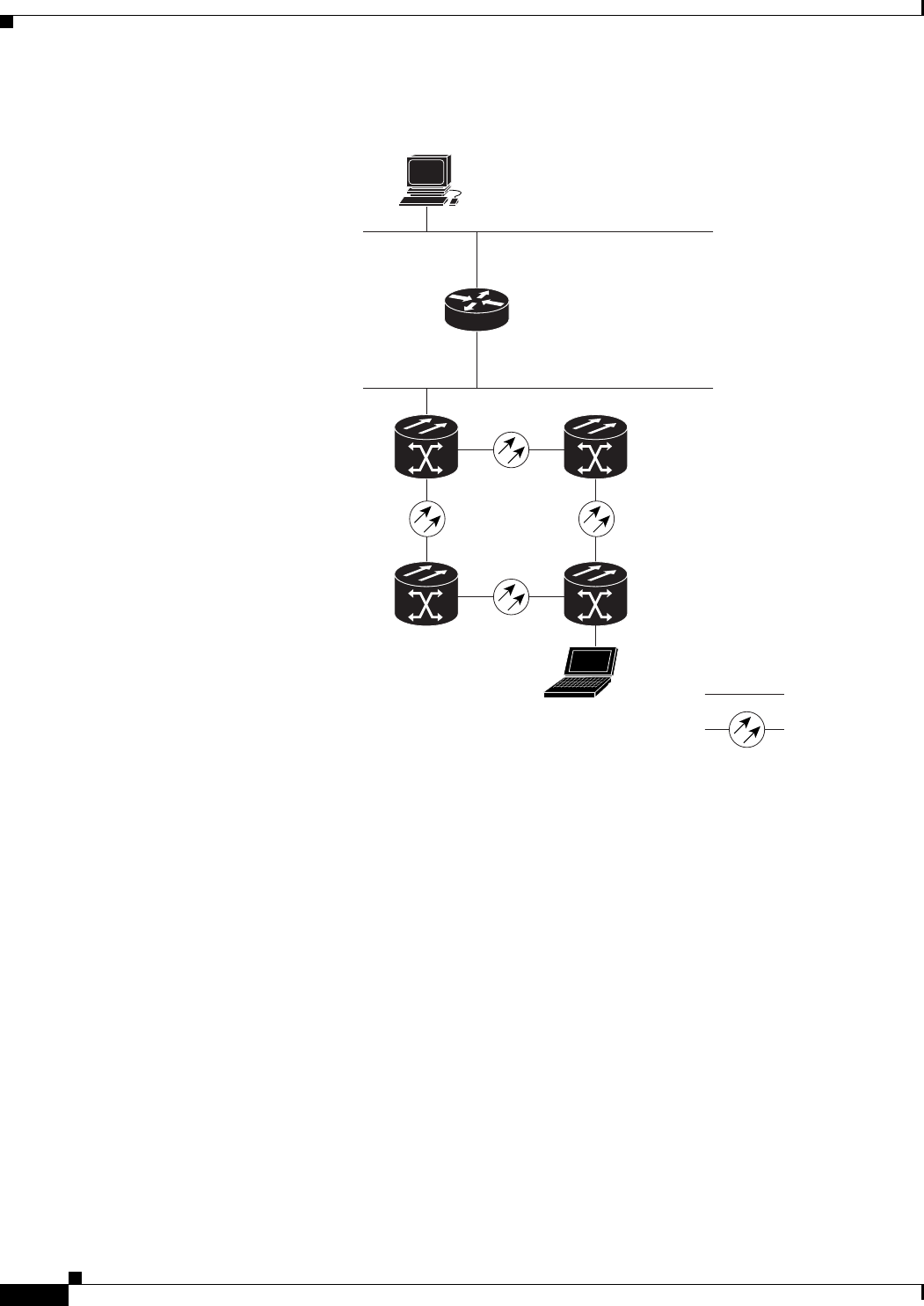

Figure 13-17 Scenario 9: ONS 15454 SDH GNE and ENEs on Different Subnets with Secure Mode
Enabled
13.3 Provisionable Patchcords
A provisionable patchcord is a user-provisioned link that is advertised by OSPF throughout the network.
Provisionable patchcords, also called virtual links, are needed in the following situations:
• An optical port is connected to a transponder or muxponder client port provisioned in transparent
mode.
• An optical ITU port is connected to a DWDM optical channel card.
• Two transponder or muxponder trunk ports are connected to a DWDM optical channel card and the
generic control channel (GCC) is carried transparently through the ring.
• Transponder or muxponder client and trunk ports are in a regenerator group, the cards are in
transparent mode, and DCC/GCC termination is not available.
Provisionable patchcords are required on both ends of a physical link. The provisioning at each end
includes a local patchcord ID, slot/port information, remote IP address, and remote patchcord ID.
Patchcords appear as dashed lines in CTC network view.
Table 13-5 lists the supported card combinations for client and trunk ports in a provisionable patchcord.
Remote CTC
10.10.20.10
10.10.20.0/24
10.10.10.0/24
Interface 0/0
10.10.20.1
Router A
Interface 0/1
10.10.10.1
ONS 15454 SDH
Gateway NE
MIC-C/T/P - 10.10.10.100/24
TCC2P - 176.20.20.40/24
ONS 15454 SDH
External NE
MIC-C/T/P - 192.168.10.250/24
TCC2P - 176.20.20.30/24
ONS 15454 SDH
External NE
192.168.10.150/24 - MIC-C/T/P
176.20.20.10/24 - TCC2P
ONS 15454 SDH
External NE
192.168.10.200/24 - MIC-C/T/P
176.20.20.20/24 - TCC2P
Local/Craft CTC
192.168.20.20
Ethernet
SDH
124682
