13-16
Cisco ONS 15454 SDH Reference Manual, R7.0
October 2008
Chapter 13 Management Network Connectivity
13.2.7 Scenario 7: Provisioning the ONS 15454 SDH Proxy Server

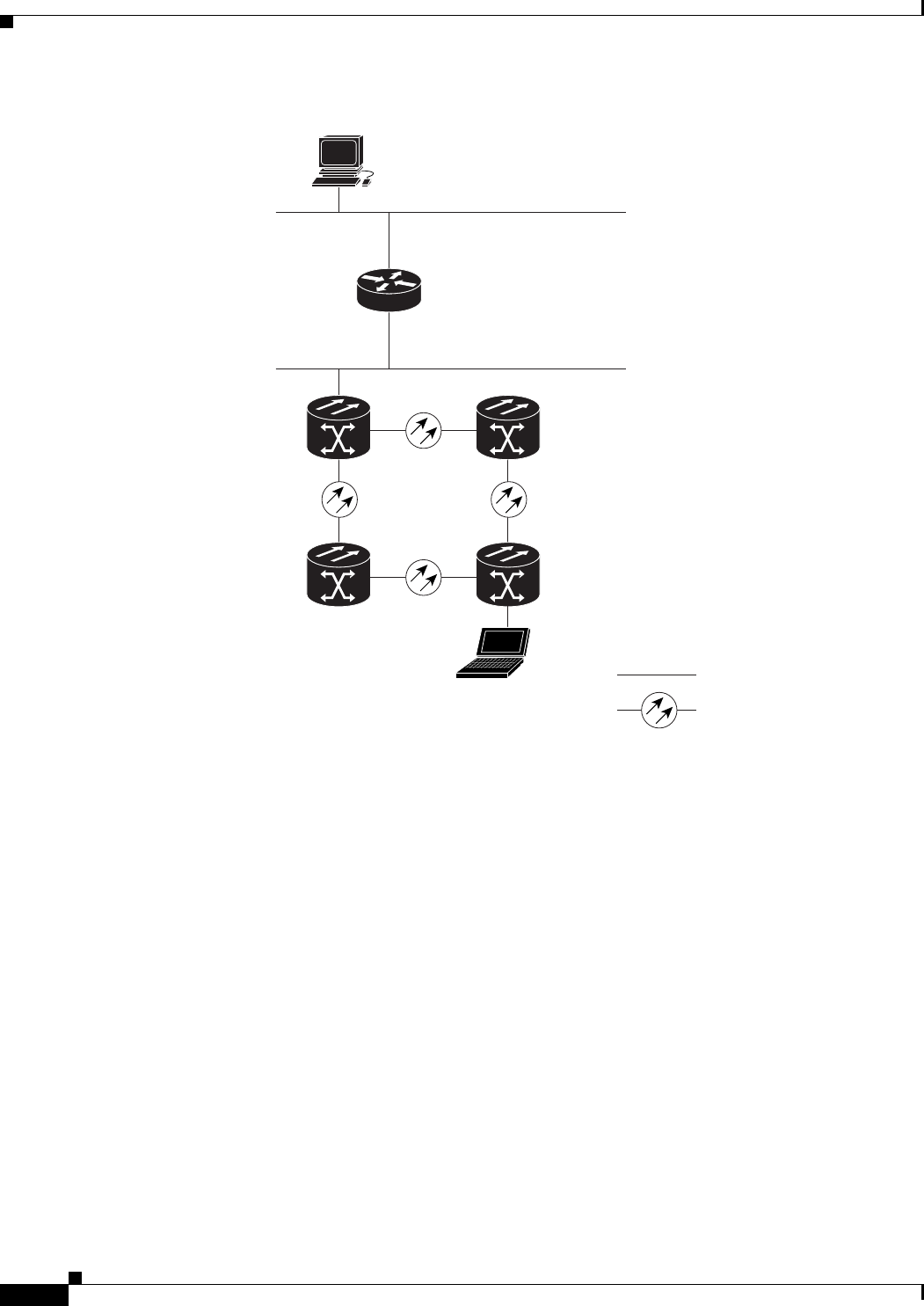

Figure 13-12 Scenario 7: ONS 15454 SDH Proxy Server with GNE and ENEs on Different Subnets
Figure 13-13 shows the implementation with ONS 15454 SDH ENEs in multiple rings. In the example,
ONS 15454 SDH GNEs and ENEs are provisioned with the settings shown in Table 13-2 on page 13-15.
Remote CTC
10.10.20.10
10.10.20.0/24
10.10.10.0/24
Interface 0/0
10.10.20.1
Router A
Interface 0/1
10.10.10.1
ONS 15454 SDH
GNE
10.10.10.100/24
ONS 15454 SDH
ENE
192.168.10.250/24
ONS 15454 SDH
ENE
192.168.10.150/24
ONS 15454 SDH
ENE
192.168.10.200/24
Local/Craft CTC
192.168.20.20
Ethernet
SDH
78237
