Chapter 11 Circuits and Tunnels
11.16.3 Single and Dual Rolls

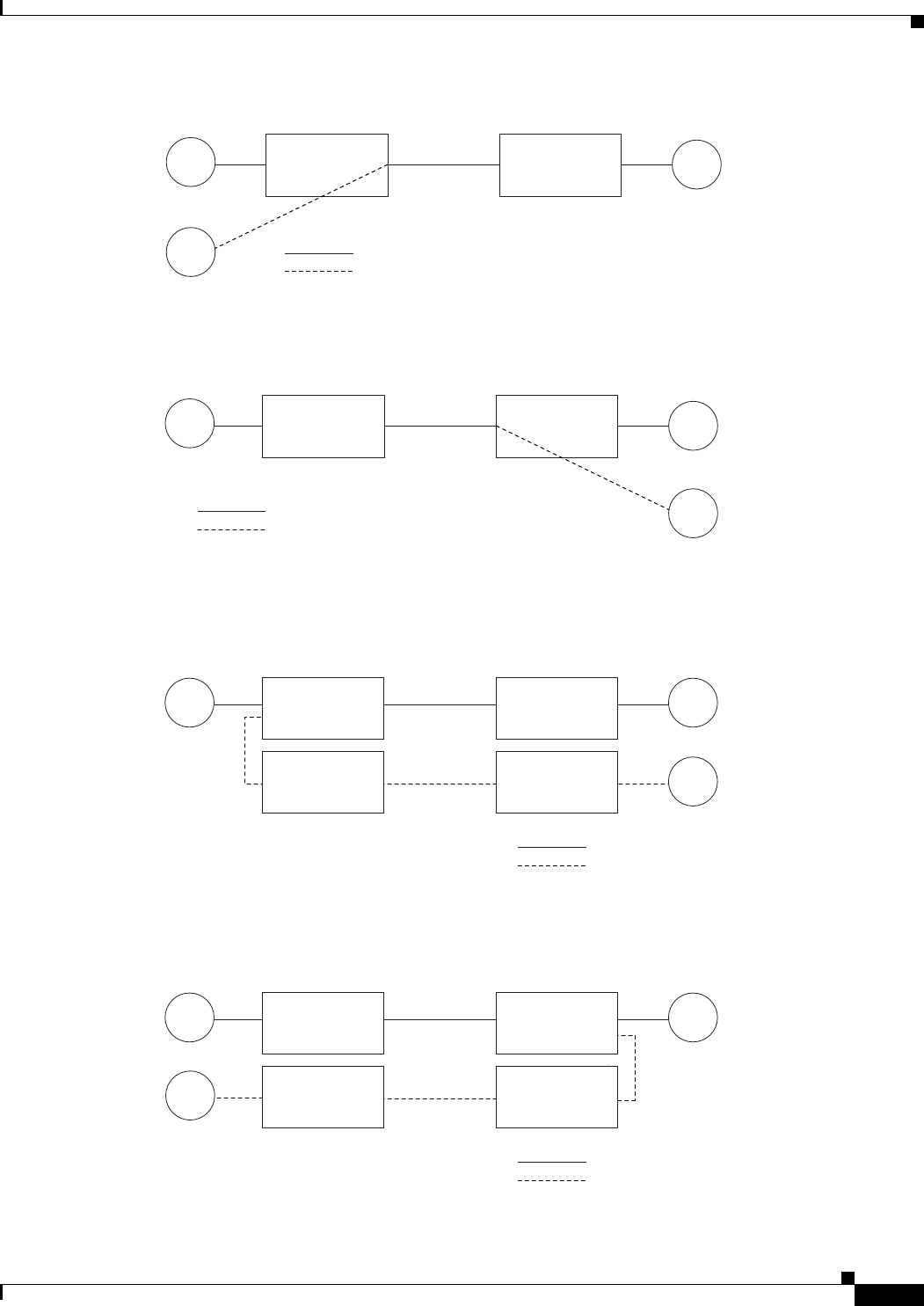

Figure 11-14 Single Source Roll
In Figure 11-15, you can select any available VC4 on Node 2 for a new destination.
Figure 11-15 Single Destination Roll
Figure 11-16 shows one circuit rolling onto another circuit at the destination. The new circuit has
cross-connects on Node 1, Node 3, and Node 4. CTC deletes the cross-connect on Node 2 after the roll.
Figure 11-16 Single Roll from One Circuit to Another Circuit (Destination Changes)
Figure 11-17 shows one circuit rolling onto another circuit at the source.
Figure 11-17 Single Roll from One Circuit to Another Circuit (Source Changes)
