Chapter 11 Circuits and Tunnels
11.2.1 Concatenated VC4 Time Slot Assignments

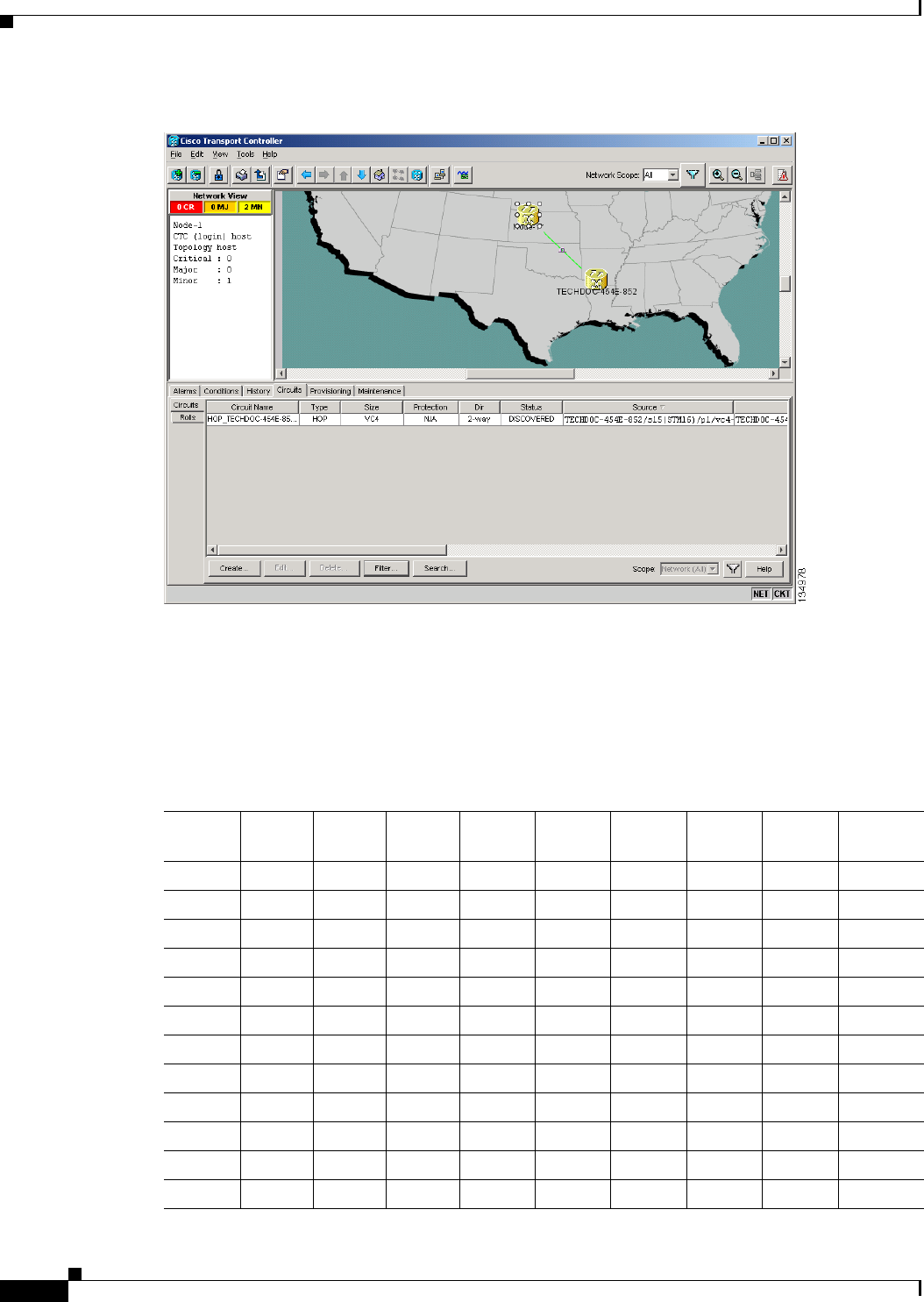

Figure 11-1 ONS 15454 SDH Circuit Window in Network View
11.2.1 Concatenated VC4 Time Slot Assignments
Table 11-1 shows the available time slot assignments for concatenated VC4s when using CTC to
provision circuits.
Table 11-1 VC4 Mapping Using CTC
Starting
VC4 VC4 VC4-2c VC4-3c VC4-4c VC4-6c VC4-8c VC4-12c VC4-16c VC4-64c
1 Yes Yes Ye s Yes Yes Yes Ye s Ye s Yes
2 YesYesYesNo Yes Yes Yes No No
3 Yes Yes N o No Yes Ye s Ye s N o No
4 Yes No Yes No Yes Yes Yes No No
5 Yes Yes Ye s Yes Yes Yes Ye s N o No
6 YesYesYesNo Yes Yes No No No
7 YesYesYesNo Yes Yes No No No
8 YesNoNoNo YesYesNo No No
9 Yes Yes Yes Yes Yes Yes No No No
10 Yes Yes Yes No Yes No No No No
11 YesYesNoNoYesNoNoNoNo
12 YesNoNoNoNoNoNoNoNo
