Chapter 8 Cisco Transport Controller Operation
8.5.3 Card View

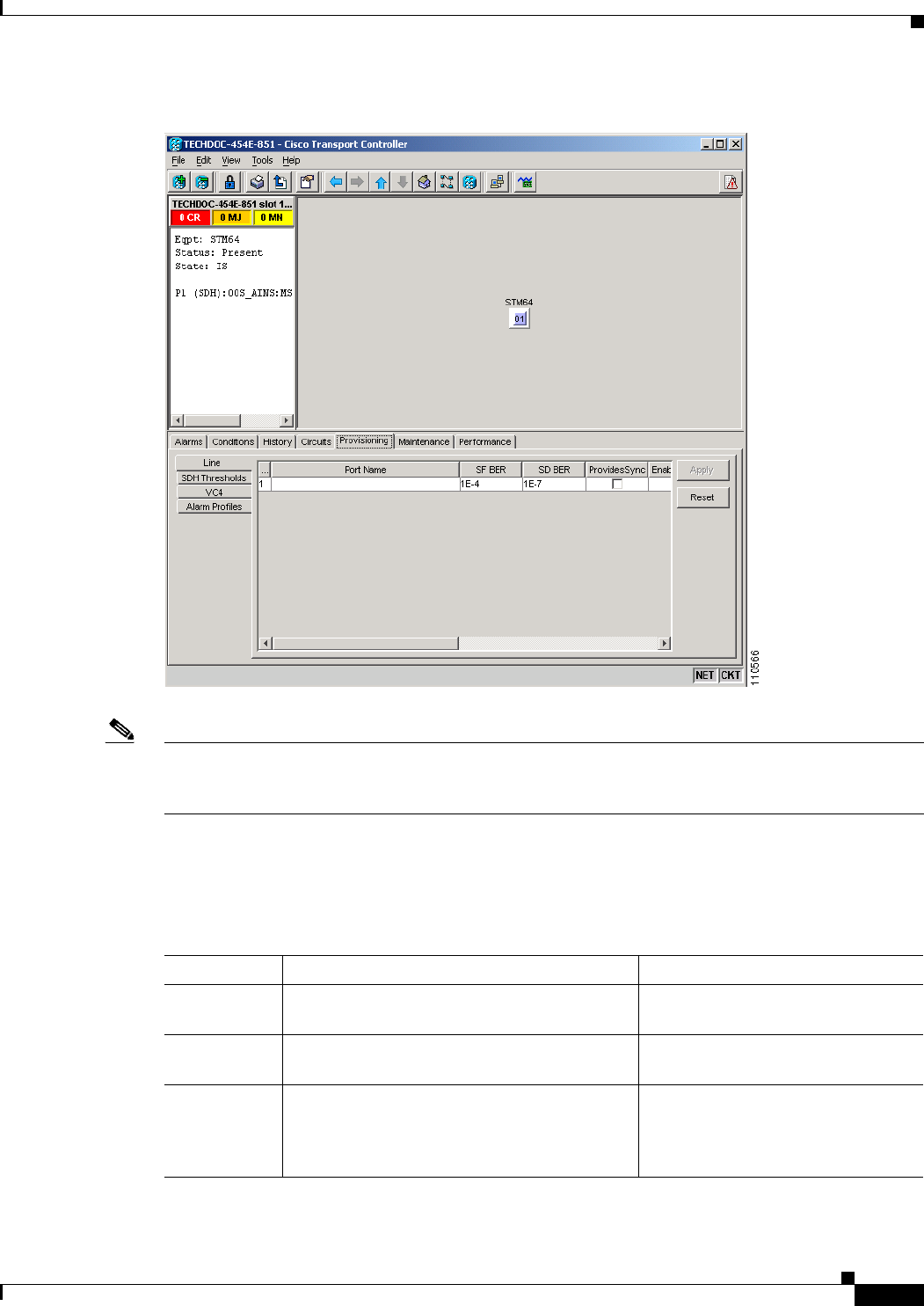

Figure 8-7 CTC Card View
Note CTC provides a card view for all ONS 15454 SDH cards except the TCC2, TCC2P, XC10G,
XC-VXL-10G, XC-VXL-2.5G, XC-VXC-2.5G, and SC-VSC-10G cards. Provisioning for these
common control cards occurs at the node view; therefore, no card view is necessary.
Use the card view tabs and subtabs, shown in Table 8-13, to provision and manage the ONS 15454 SDH.
The subtabs, fields, and information shown under each tab depend on the card type selected. The
Performance tab is not available for the AIC-I card.
Table 8-13 Card View Tabs and Subtabs
Tab Description Subtabs
Alarms Lists current alarms (CR, MJ, MN) for the card
and updates them in real time.
—
Conditions Displays a list of standing conditions on the
card.
—
History Provides a history of card alarms including
date, object, port, and severity of each alarm.
Session (displays alarms and events
for the current session), Card
(displays alarms and events retrieved
from a fixed-size log on the card)
