5.9 CE-100T-8 Card
• Low order (LO) VCAT VC-3 circuit sizes of up to three members: VC-3-1v, VC-3-2v, or VC-3-3v
• Low order (LO) VCAT VC-12 circuit sizes of up to 63 members: VC-12-Nv (where N=1 to 63)
VC-3 VCAT circuits map administrative unit 4 (AU-4), and VC-12 VCAT circuits map tributary unit 12
(TU-12).
In addition, the CE-100T-8 card supports Generic Framing Procedure (GFP-F) and point-to-point
protocol/high-level data link control (PPP/HDLC) framing protocols. It also supports the link capacity
adjustment scheme (LCAS), which allows dynamic reconfiguration of the VC groups.
The CE-100T8 card also supports the link capacity adjustment scheme (LCAS), which allows hitless
dynamic adjustment of SONET link bandwidth. The CE-100T-8 card’s LCAS is hardware-based, but the
CE-100T-8 also supports SW-LCAS. This makes it compatible with the ONS 15454 SDH ML-Series
card, which supports only SW-LCAS and does not support the standard hardware-based LCAS.
SW-LCAS is supported when a circuit from the CE-100T-8 terminates on the ONS 15454 SDH
ML-Series card.

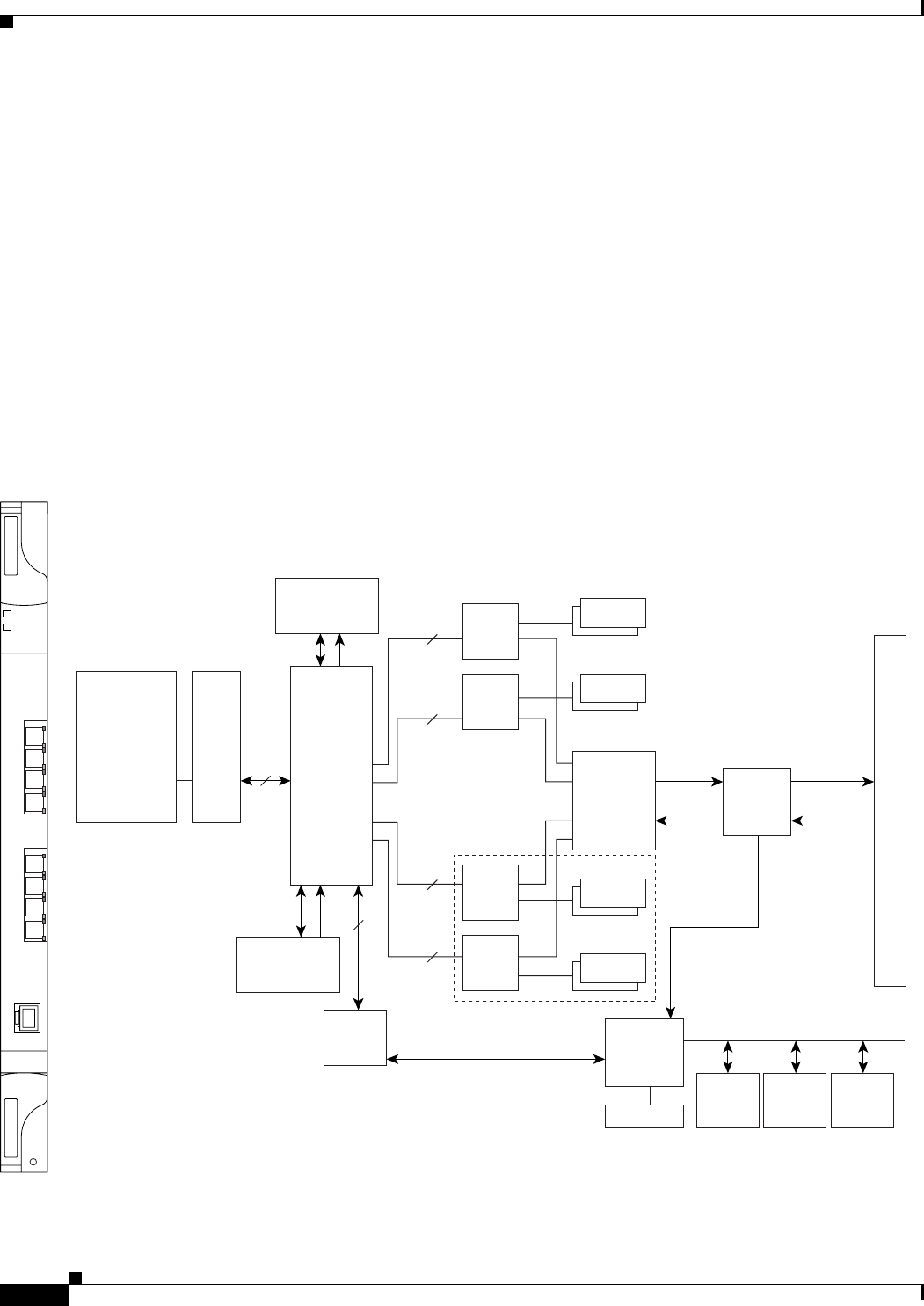

Figure 5-8 shows the CE-100T-8 card faceplate and block diagram.
Figure 5-8 CE-100T-8 Faceplate and Block Diagram
CE100T
8
FAIL
ACT
CONSOLE
1
2
3
4
5
6
7
8
134366
Packet Buffer
3x0.5MB
Control Mem
1x2MB
ETS
#1
SDRAM
qMDM
FPGA
Packet
Processor/
Switch
Fabric
qMDM
FPGA
Octal
PHY
SMII
8
8x
10/100BaseT
RJ45
Part of qMDM FPGA
FCC3
SMII
MII
4 SMII
STS3
STS3
STS3
ETS
#2
SDRAM
SDRAM
STS3
SCC1
60x
Flash
8MB
SDRAM
128MB
CPLD
SDRAM
1
4 SMII
ETS
#3
4 SMII
STS12
Add_Bus
Drop_Bus
ETS
#4
3 SMII
BTC
CPU
nVRAM
B
a
c
k
p
l
a
n
e
Option
