Chapter 5 Ethernet Cards
5.6 ML100T-12 Card
determine whether to enable or disable flow control. For ML-Series configuration information, see the
Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454
SDH, and Cisco ONS 15327.

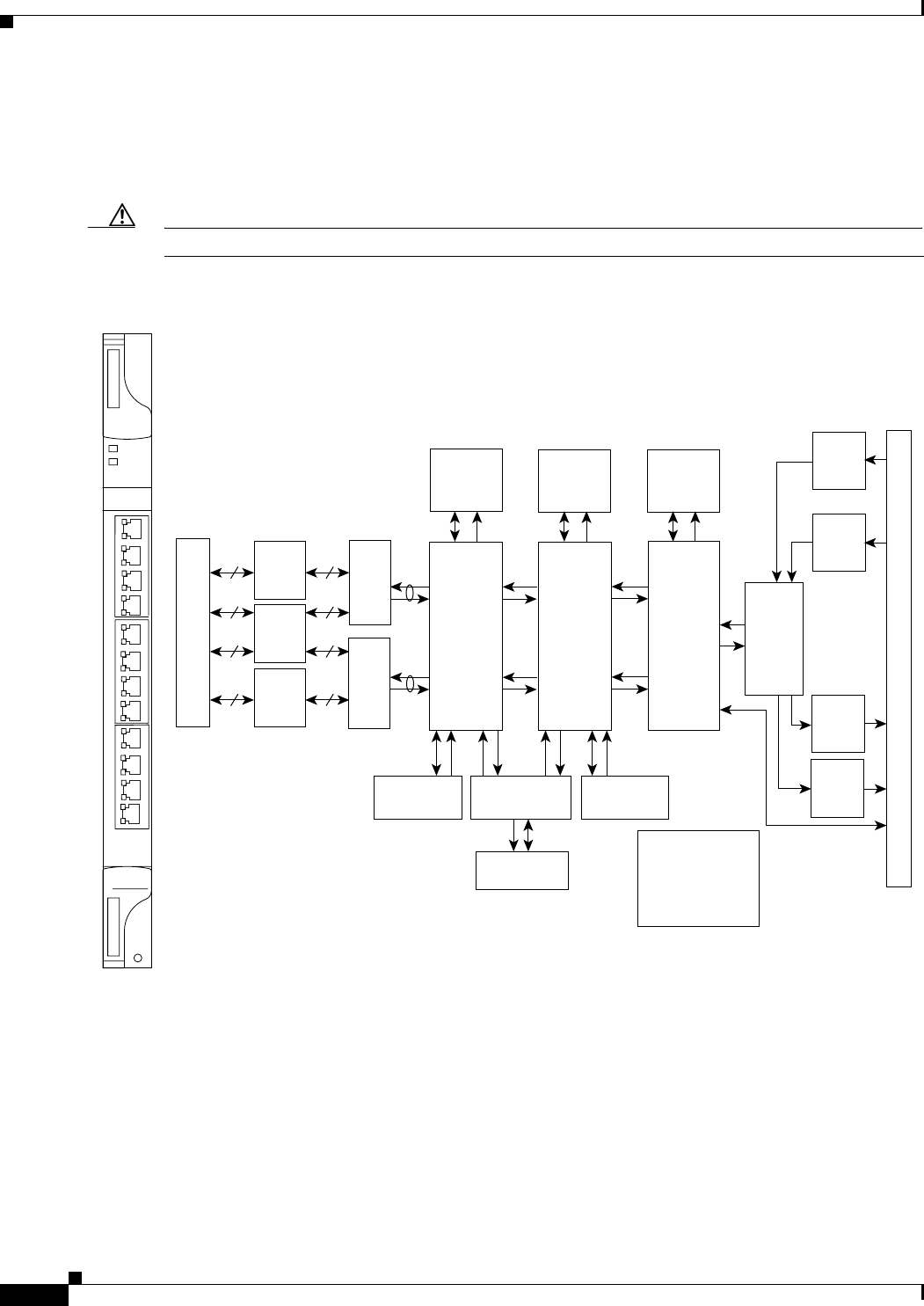

Figure 5-5 shows the card faceplate and block diagram.
Caution Shielded twisted-pair cabling should be used for inter-building applications.
Figure 5-5 ML100T-12 Faceplate and Block Diagram
ML-Series cards feature two SDH virtual ports with a maximum combined bandwidth of VC4-16c. Each
port carries an STM concatenated circuit (CCAT) with a size of VC3, VC4, VC4-2c, VC4-3c, VC4-4c,
and VC4-8c. To configure an ML-Series card SDH STM circuit, refer to the “Create Circuits and
Low-Order Tunnels” chapter of the Cisco ONS 15454 SDH Procedure Guide.
The ML-Series packet-over-SDH (POS) ports supports virtual concatenation (VCAT) of SONET/SDH
circuits and a software link capacity adjustment scheme (SW-LCAS). The ML-Series card supports a
maximum of two VCAT groups with each group corresponding to one of the POS ports. Each VCAT
group must be provisioned with two circuit members. An ML-Series card supports VC-3-2v, VC-4-2v
and VC-4-4c-2v. To configure an ML-Series card SDH VCAT circuit, refer to the “Create Circuits and
Low-Order Tunnels” chapter of the Cisco ONS 15454 SDH Procedure Guide.
