Chapter 5 Ethernet Cards
5.5.1 G1K-4 Card-Level Indicators

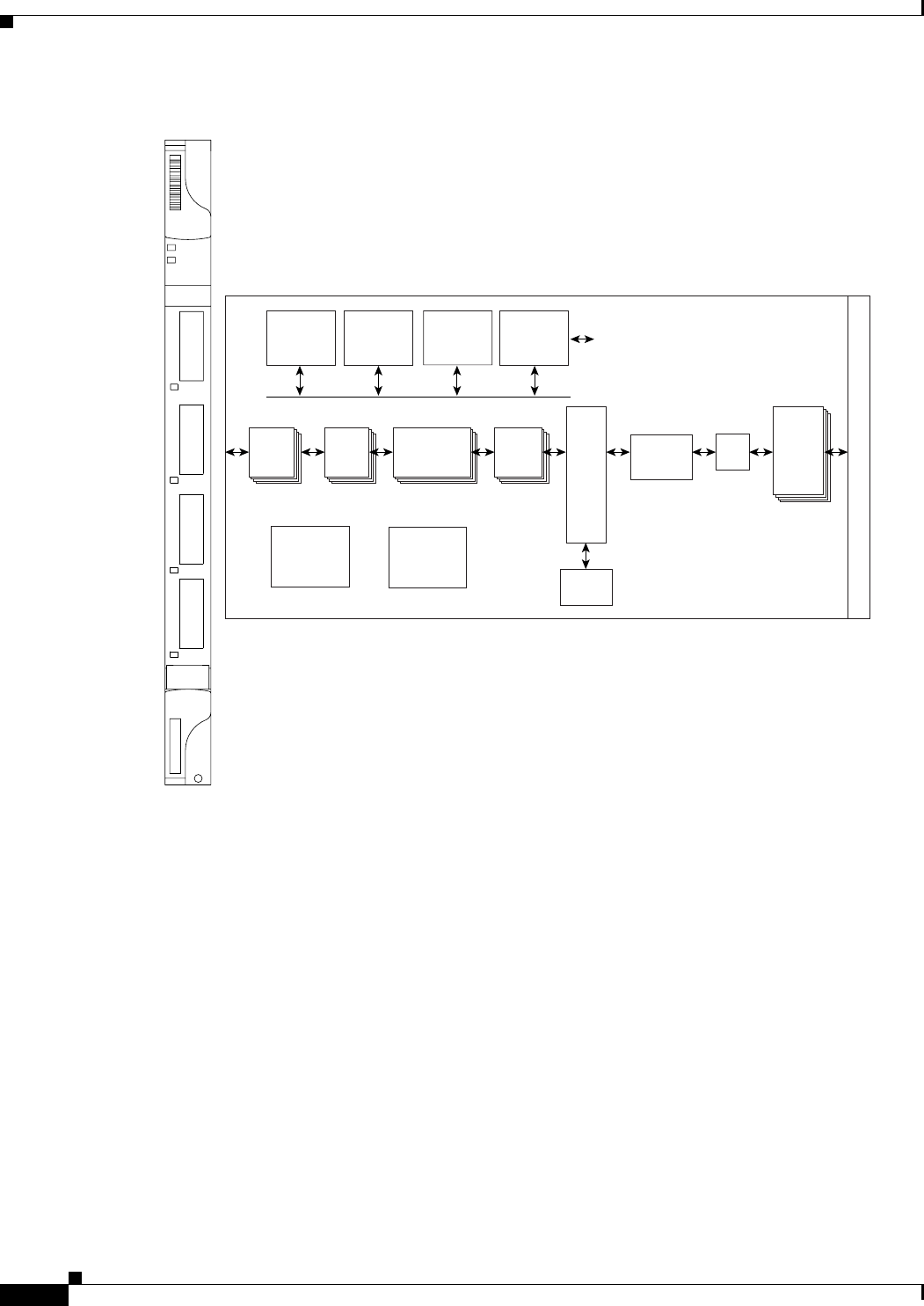

Figure 5-4 G1K-4 Faceplate and Block Diagram
The G1K-4 Gigabit Ethernet card provides high-throughput, low-latency transport of Ethernet
encapsulated traffic (IP and other Layer 3 protocols) across a SDH network while providing a greater
degree of reliability through SDH self-healing protection services. Carrier-class Ethernet transport is
achieved by hitless (< 50 ms) performance in the event of any failures or protection switches (such as
1+1 APS, path protection, BLSR, or optical equipment protection) and full provisioning and
manageability, as in SDH service. Full provisioning support is possible via CTC or CTM. Each G1K-4
card performs independently of the other cards in the same shelf.
5.5.1 G1K-4 Card-Level Indicators
The G1K-4 card faceplate has two card-level LED indicators, described in Table 5-9.
