4-17
Cisco ONS 15454 SDH Reference Manual, R7.0
October 2008
Chapter 4 Optical Cards
4.8.1 OC48 IR/STM16 SH AS 1310 Card Functionality
The OC48 IR/STM16 SH AS 1310 card provides one intermediate-range, ITU-T G.707- and
G.957-compliant, SDH STM-16 port per card. The interface operates at 2.488 Gbps over a single-mode
fiber span. The card supports concatenated or nonconcatenated payloads at STM-1, STM-4, or STM-16
signal levels on a per VC-4 basis.
Warning
The laser is on when the optical card is booted. The port does not have to be in service for the laser
to be on.

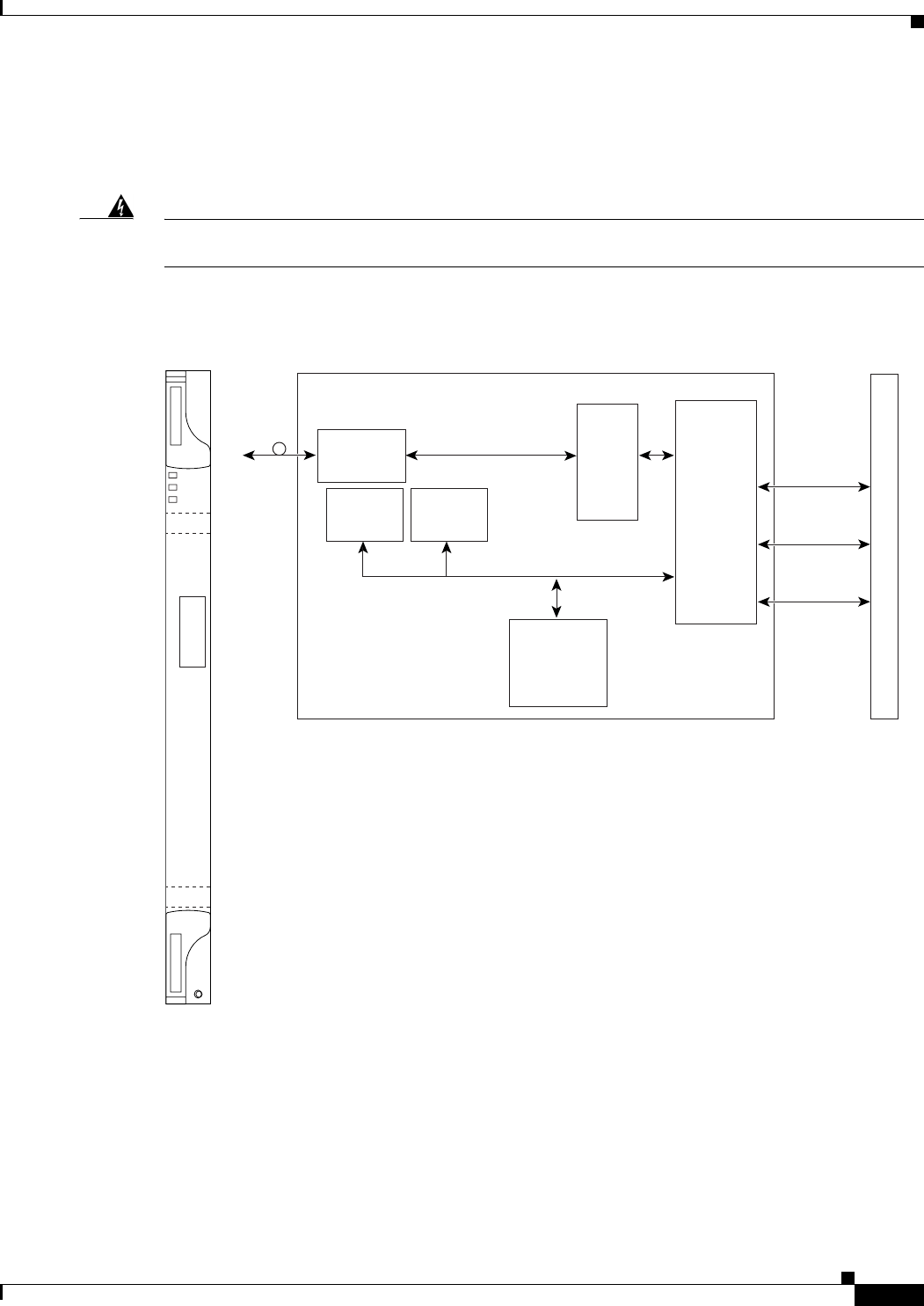

Figure 4-7 shows the OC48 IR/STM16 SH AS 1310 faceplate and block diagram.
Figure 4-7 OC48 IR/STM16 SH AS 1310 Faceplate and Block Diagram
4.8.1 OC48 IR/STM16 SH AS 1310 Card Functionality
You can install the OC48 IR/STM16 SH AS 1310 card in Slots 1 to 6 and 12 to 17. You can provision
the card as part of a MS-SPRing or SNCP. In an ADM configuration, you can provision the card as either
an access tributary or a transport span interface.
uP bus
uP
Flash
RAM
BTC
ASIC
Optical
Transceiver
STM-16
Main SCI
Protect SCI
STM-16
134384
Mux/
Demux
B
a
c
k
p
l
a
n
e
FAIL
ACT
SF
TX
1
RX
OC48IR
STM16SH
AS 1310
