3.18 MIC-C/T/P FMEC

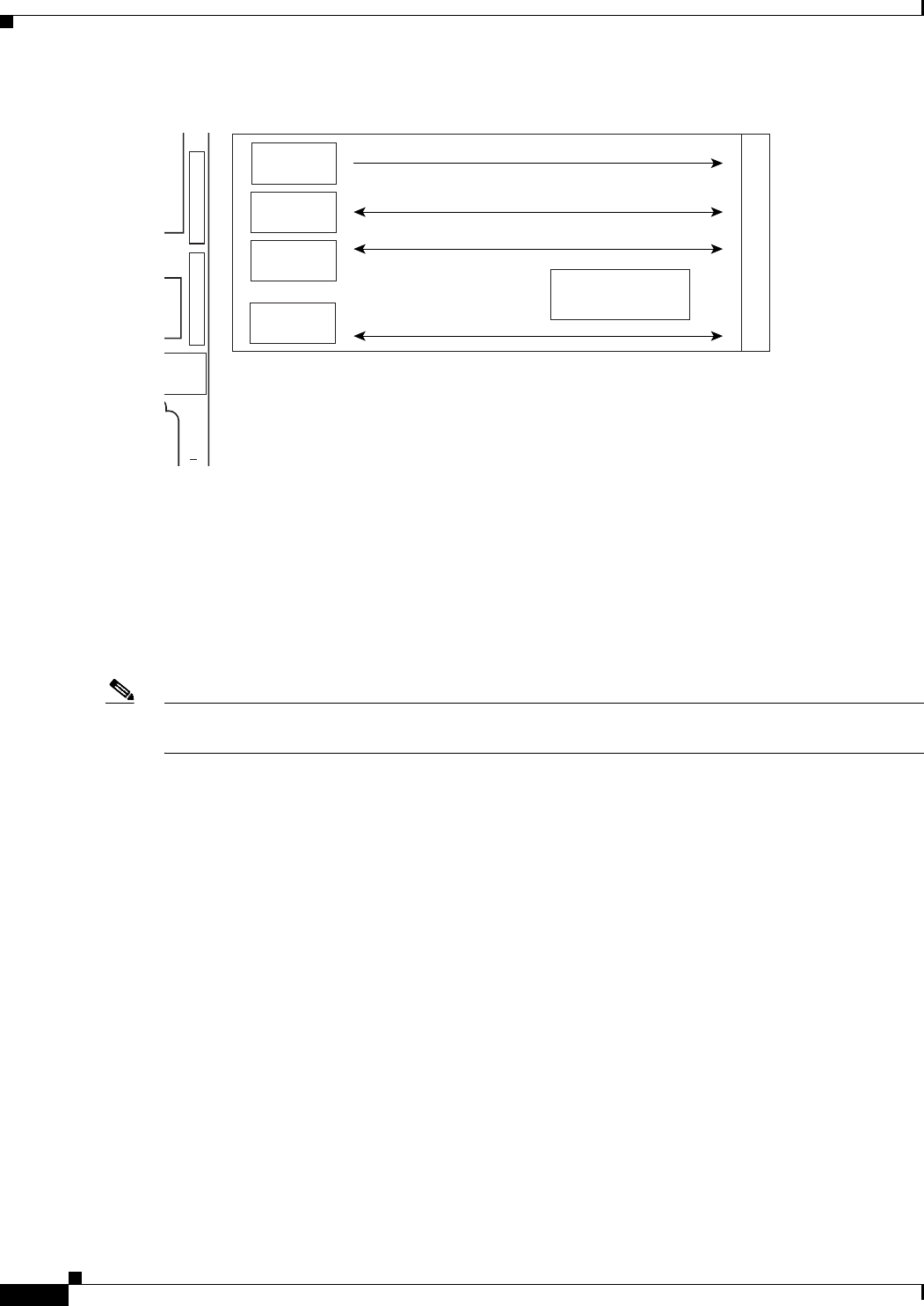

Figure 3-19 MIC-C/T/P Faceplate and Block Diagram
The MIC-C/T/P FMEC has the following features:
• Connection for one of the two possible redundant power supply inputs
• Connection for two serial ports for local craft/modem (for future use)
• Connection for one LAN port
• Connection for two system timing inputs
• Connection for two system timing outputs
• Storage of manufacturing and inventory data
Note For proper system operation, both the MIC-A/P and the MIC-C/T/P FMECs must be installed in the
shelf.
The MIC-C/T/P FMEC has one pair of LEDs located on the RJ-45 LAN connector. The green LED is on
when a link is present, and the amber LED is on when data is being transferred.
