Product Overview
Linksys X2000/X3000
4

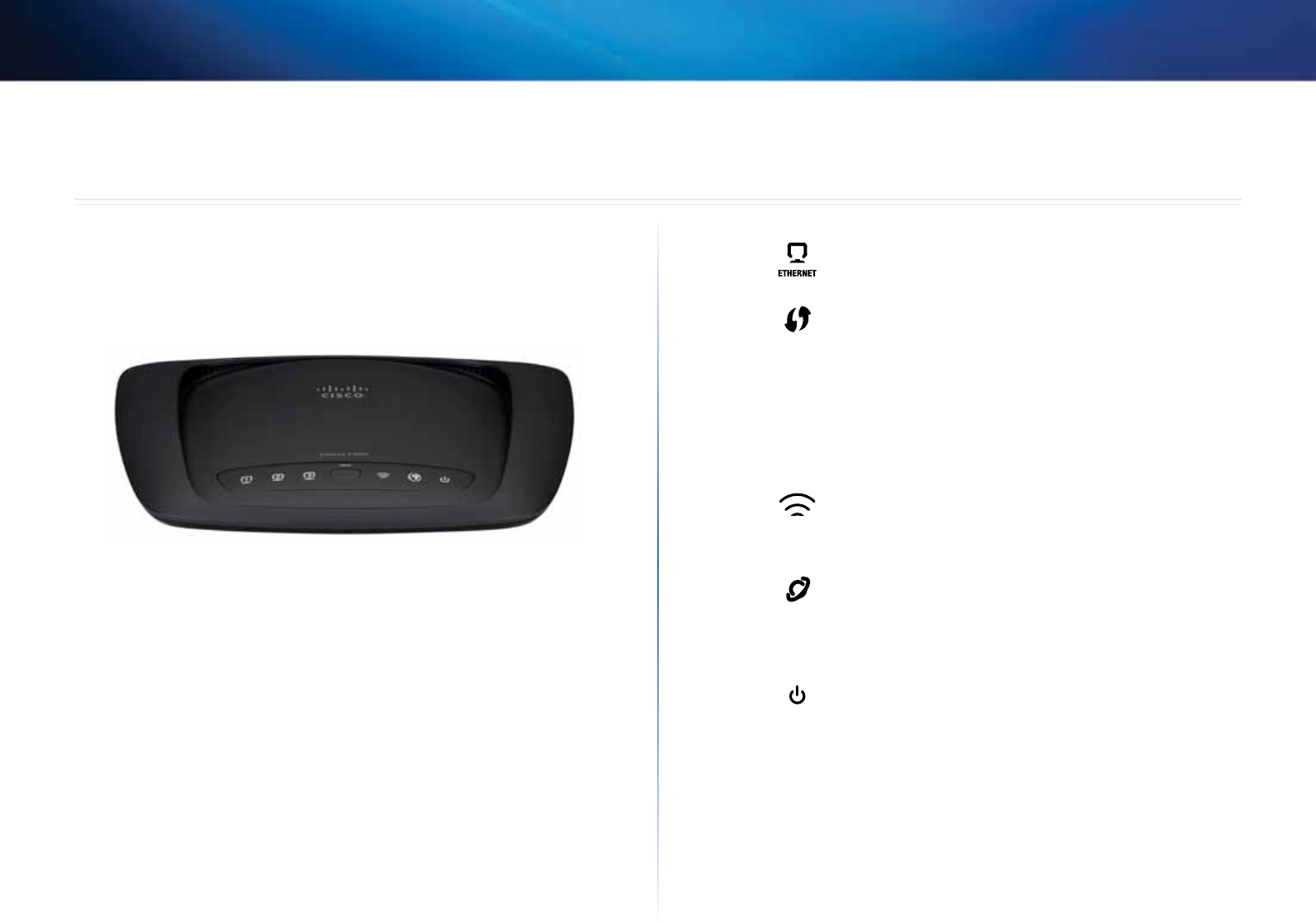

X2000
Top
Ethernet If the LED is continuously lit, the
modem router is successfully connected to a
device through that port.
Wi-Fi Protected Setup™ Button Press this
button to have Wi-Fi Protected Setup™ search for
your Wi-Fi Protected Setup™-supported wireless
device. The LED is continuously lit when a Wi-
Fi Protected Setup™ connection is successfully
established. The LED blinks slowly while Wi-Fi
Protected Setup™ is setting up a connection, and
blinks rapidly in amber if an error occurs. The LED
is off when Wi-Fi Protected Setup™ is idle.
Wireless The Wireless LED lights up when the
wireless feature is enabled. It flashes when the
modem router is actively sending or receiving
data over the network.
WAN Lights up white when the modem router
is connected directly to an ADSL line. Lights up
blue when the modem router is set up as a router
only and is connected to the internet through a
separate modem.
Power The Power LED lights up when the
modem router is powered on. When the modem
router goes through its self-diagnostic mode
during every boot-up, the LED flashes. When the
diagnostic is complete, the LED is continuously
lit.
