3-7
User Guide for Internetwork Performance Monitor
OL-11291-01
Chapter 3 Using IPM to Measure Network Performance
Measuring Network Performance for DLSw
Viewing Statistics for DLSw
The DLSw Historical Statistics window displays statistical and graphical information gathered over the
monitoring period for the selected DLSw collector.
To view end-to-end statistics for DLSw:
Step 1 From the IPM Main Window, select one or more DLSw collectors (up to 10).
Step 2 Select View > Statistics.
The DLSw Historical Statistics window (Figure 3-4) appears.

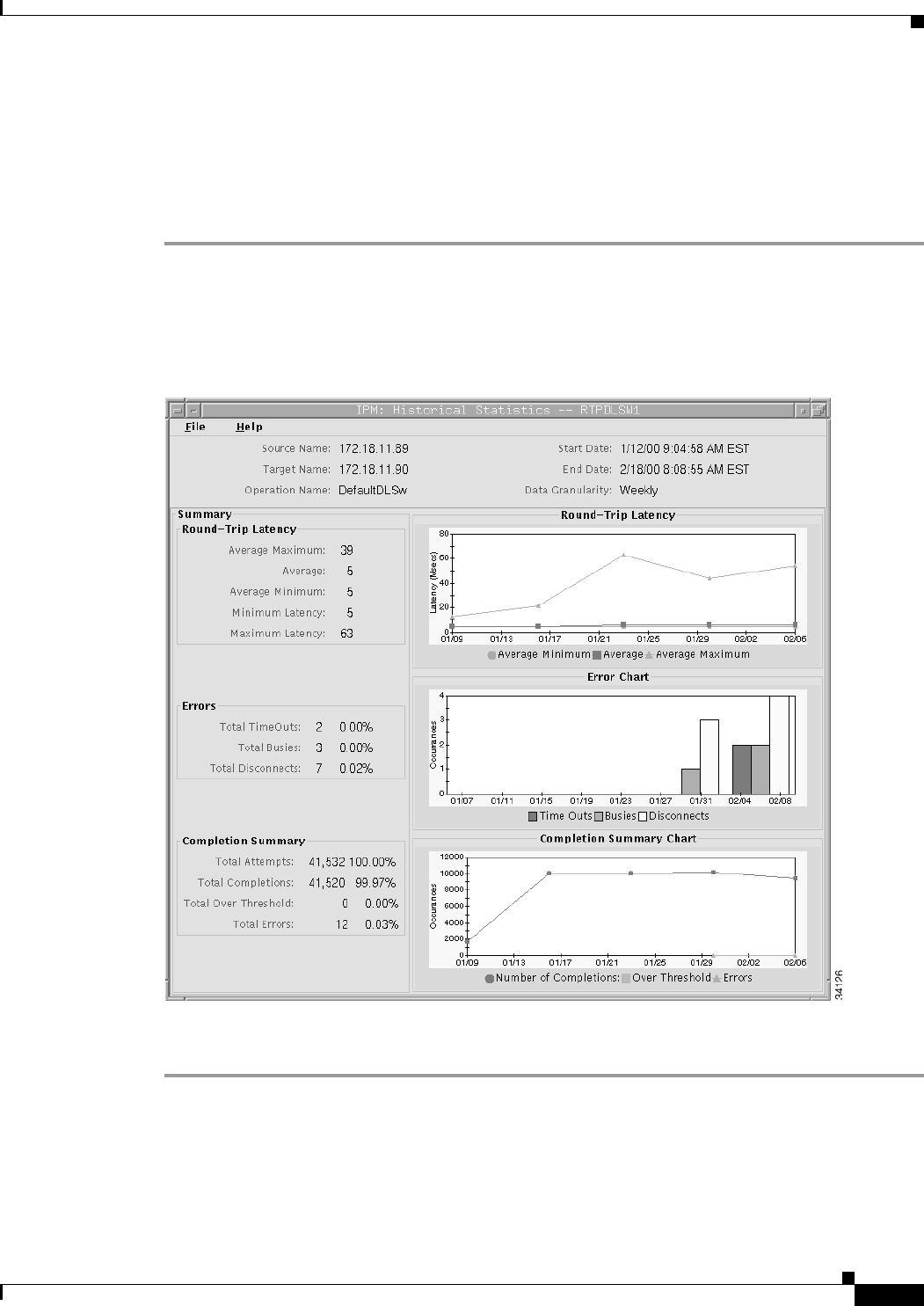

Figure 3-4 DLSw Historical Statistics Window
If you selected more than one collector, their statistics appear in a single graph in the Historical
Statistics—Multi-Collector Graph window (see Figure 2-14 for an example).
For more detailed information about the statistics displayed in the DLSw Historical Statistics window,
see the “DLSw Historical Statistics Window” topic in the online help.
