5-15
User Guide for Internetwork Performance Monitor
OL-11291-01
Chapter 5 Working With IPM From the CiscoWorks Homepage
Viewing Configuration Information

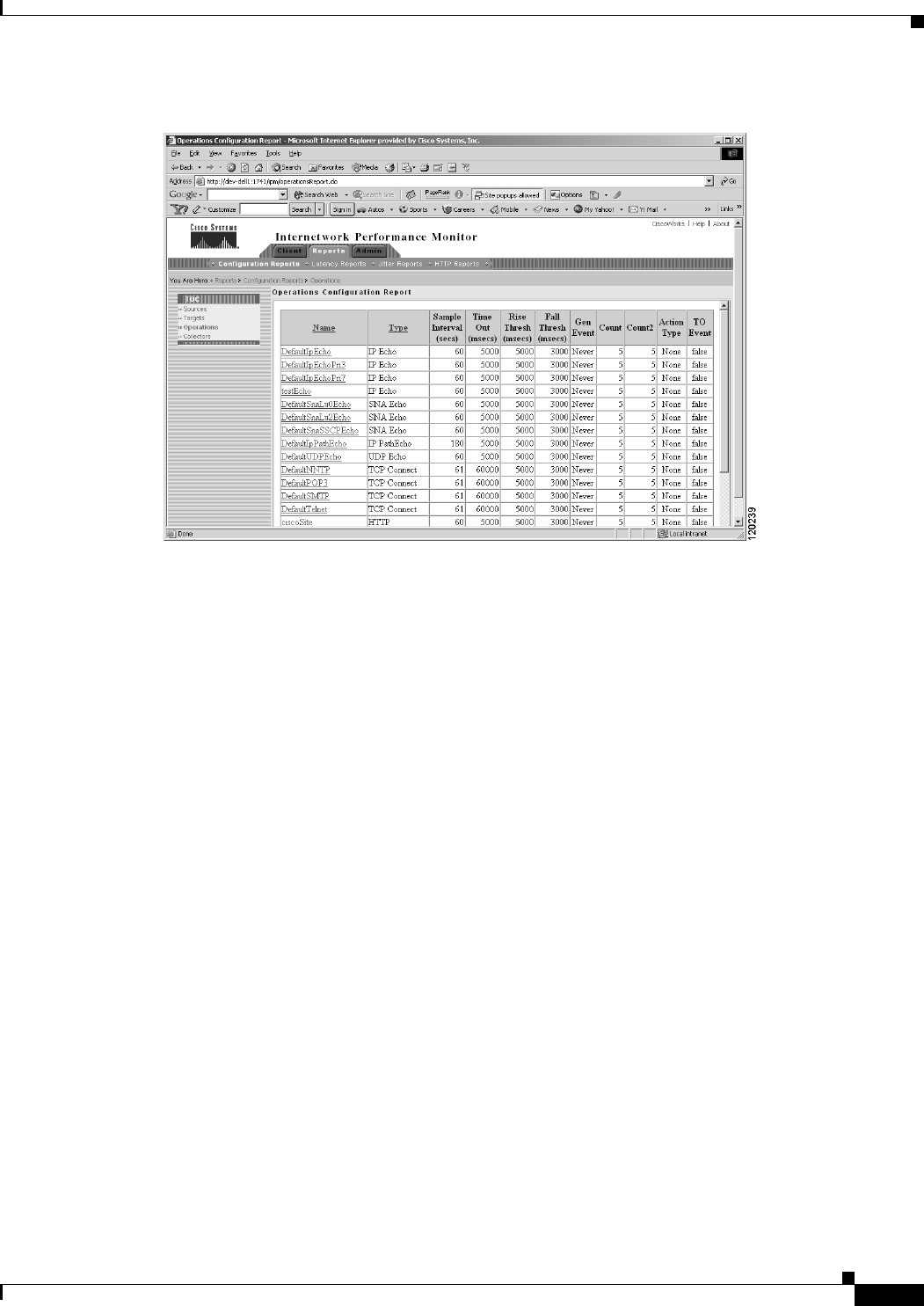

Figure 5-12 Operations Configuration Report Page
Viewing Collector Configuration Information
You can display information about all collectors defined to IPM. The configuration information
displayed includes the collector name, source, target, operation, current status, collector type, and links
to latency, jitter, and HTTP reports for various time periods.
To view configuration information for the collectors defined to IPM, select Internetwork Performance
Monitor > Reports > Configuration Reports > Collectors on the CiscoWorks homepage. The
Collector Information page (Figure 5-13) appears.
