Chapter 1 Overview and Physical Description
Rack-Mounting Considerations

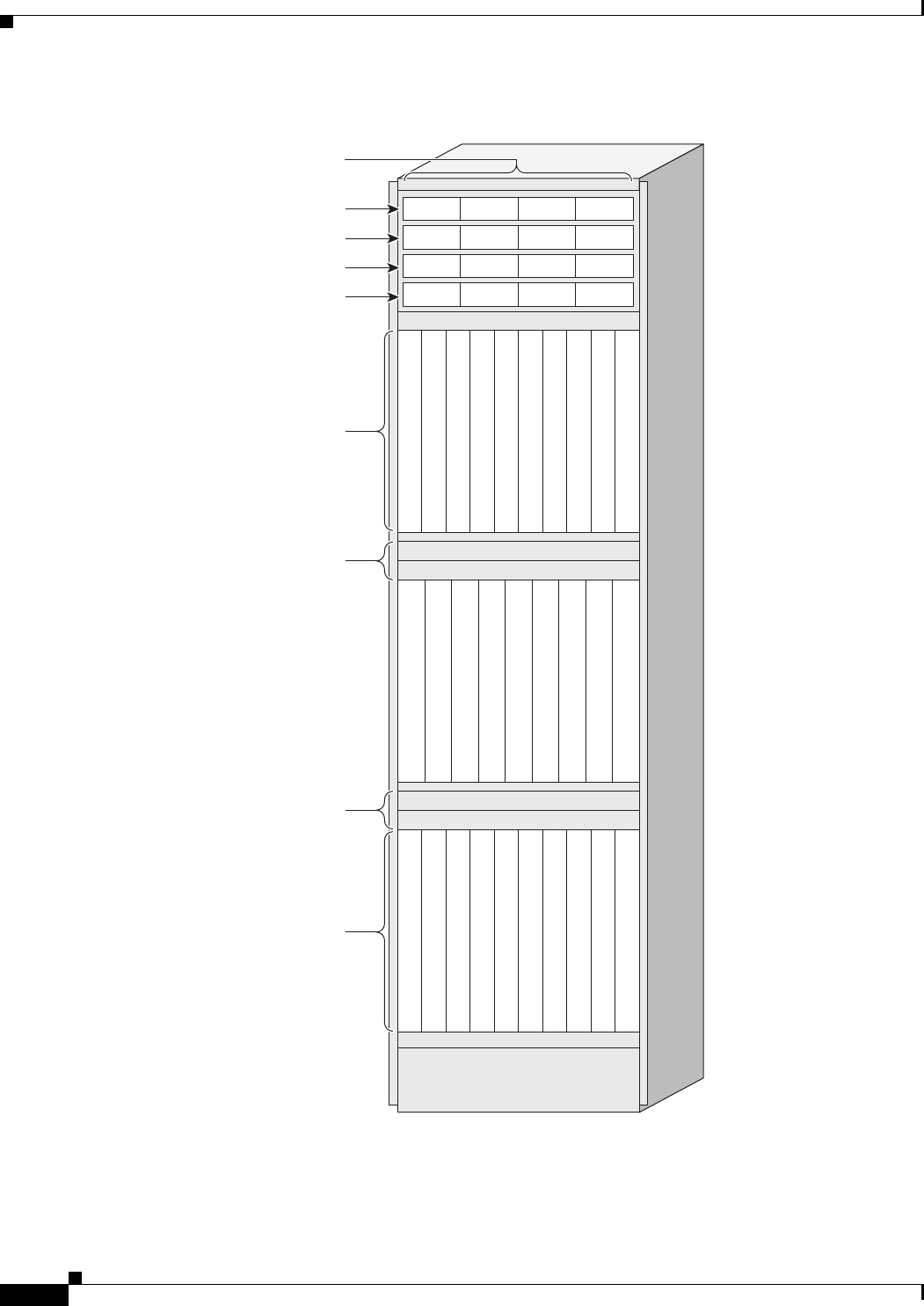

Figure 1-21 Cisco ASR 9922 Router Components and Slot Numbering
302423
M3M2M1M0
M7M6M5M4
M11M10M9M8
M15M14M13M12
Power shelves/trays
PS0
Power modules
PS1
PS2
PS3
Fan trays
Fan trays
Line cards
Line cards
LC0
LC1
LC2
LC3
LC4
LC5
LC6
LC7
LC8
LC9
Slot 0
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
Slot 9
FT0
FT1
FT2
FT3
LC19
LC18
LC17
LC16
LC15
LC14
LC13
LC12
LC11
LC10
Slot 19
Slot 18
Slot 17
Slot 16
Slot 15
Slot 14
Slot 13
Slot 12
Slot 11
Slot 10
RP0
FC0
FC6
RP1
FC1
FC2
FC3
FC4
FC5
