Chapter 1 Overview
Network Examples with Autonomous Access Point/Bridges
Root Access Point on a Wired LAN
An autonomous access point connected directly to a wired LAN provides a connection point for wireless
users. If more than one autonomous access point is connected to the LAN, users can roam from one area
of a facility to another without losing their connection to the network. As users move out of range of one
access point, they automatically connect to the network (associate) through another access point. The
roaming process is seamless and transparent to the user. Figure 1-5 shows access points acting as root
units on a wired LAN.

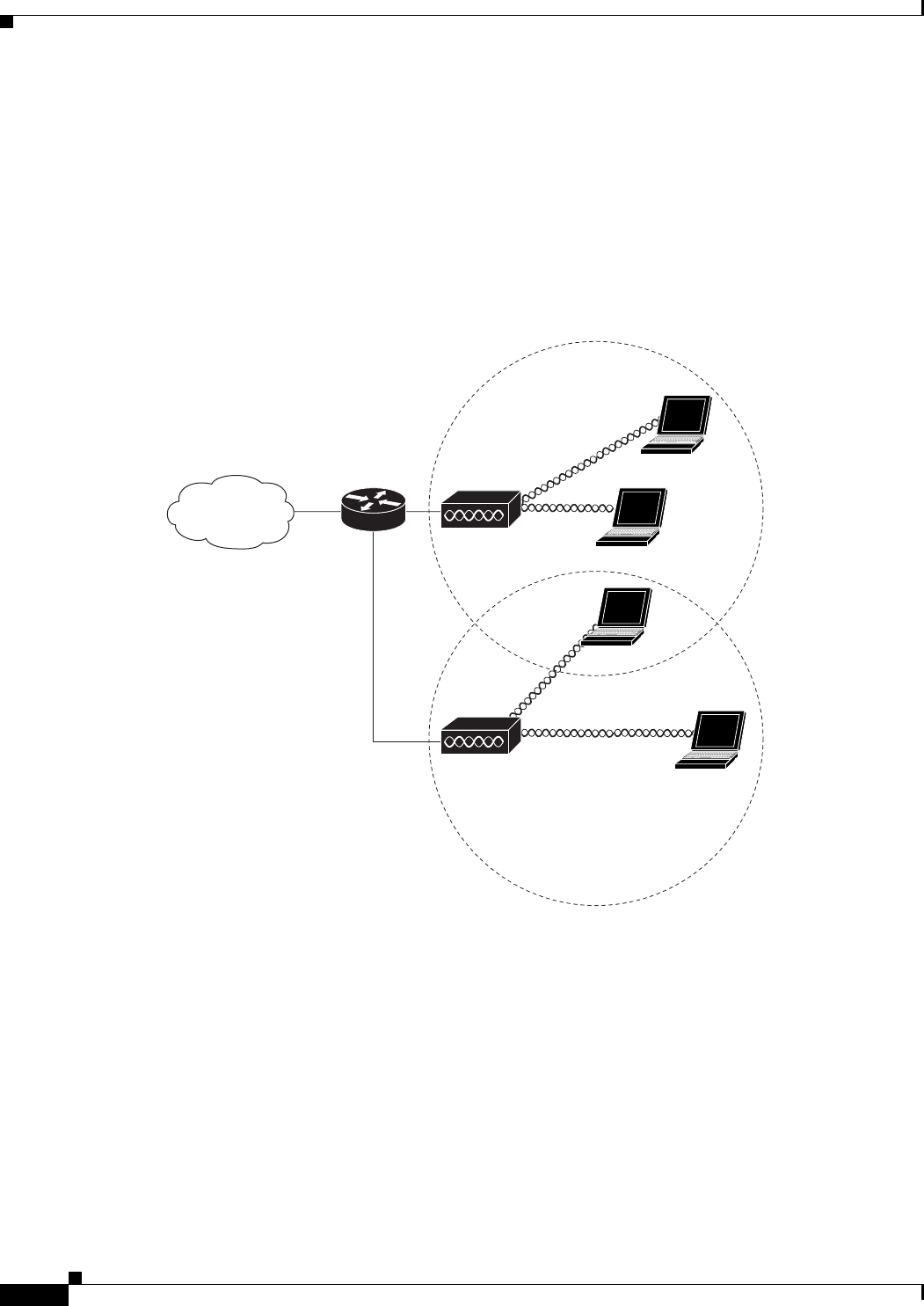

Figure 1-5 Access Points as Root Units on a Wired LAN
Access point
Access point
135445
