Chapter 1 Overview
Key Features

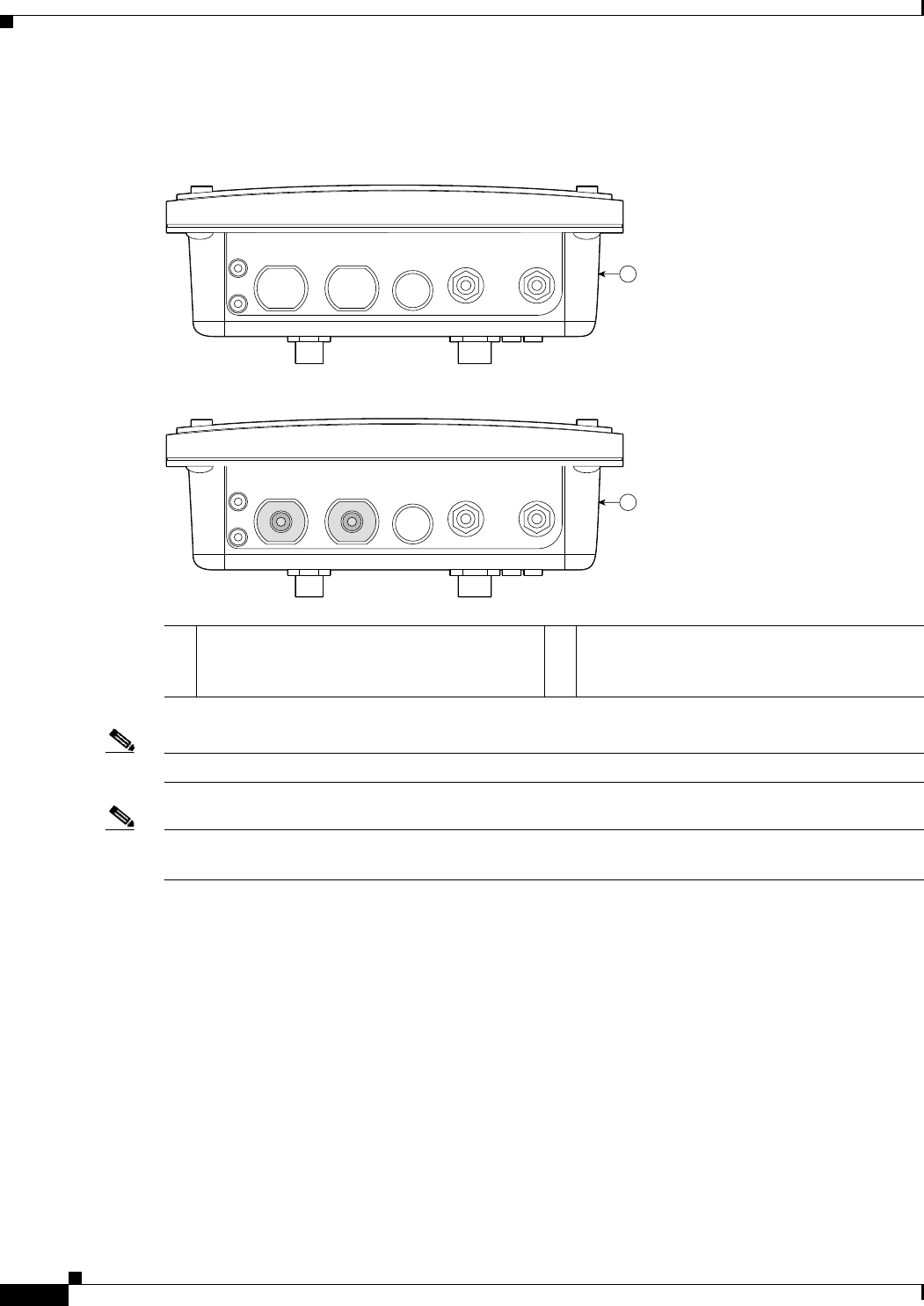

Figure 1-1 shows the two outdoor access point/bridge configurations.
Figure 1-1 Access Point Configurations
Note Antenna connectors are available only on the external antenna access point/bridge configuration.
Note The external antenna access point/bridge configuration does not ship with an external antenna. An
external antenna must be purchased.
Power
The access point/bridge receives inline power from the Cisco Aironet Power Injector (hereafter called
the power injector). Dual-coax cables are used to provide Ethernet data and power from the power
injector to the access point/bridge. The power injector is an external unit designed for operation in a
sheltered environment, such as inside a building or vehicle. The power injector also functions as an
Ethernet repeater by connecting to a Category 5 LAN backbone and using the dual-coax cable interface
to the access point/bridge.
The power injector is available in two models:
• Cisco Aironet Power Injector LR2—standard version (included with the access point/bridge)
–
48-VDC input power
–
Uses the 48-VDC power module (included with the access point/bridge)
1 Integrated antenna access point/bridge
configuration
2 External antenna access point/bridge
configuration with external antenna
connectors
117059
1
2
