Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1
OL-14284-01
Chapter 4 Advanced Correlation Scenarios
IP Interface Failure Scenarios
The following correlation information is provided:
• device unreachable on the CE:
– The Syslog alarm is correlated by flow to the possible root cause, for example, a device
unreachable alarm on CE1
ATM Examples
Similar examples involving ATM technology have the same result, assuming that a failure in an
unmanaged network causes the status of the IP interface to change to down (ILMI is enabled).
Ethernet, Fast Ethernet, Giga Ethernet Examples
Interface Example 6
In this example there is an unreachable CE due to a failure in the unmanaged network.

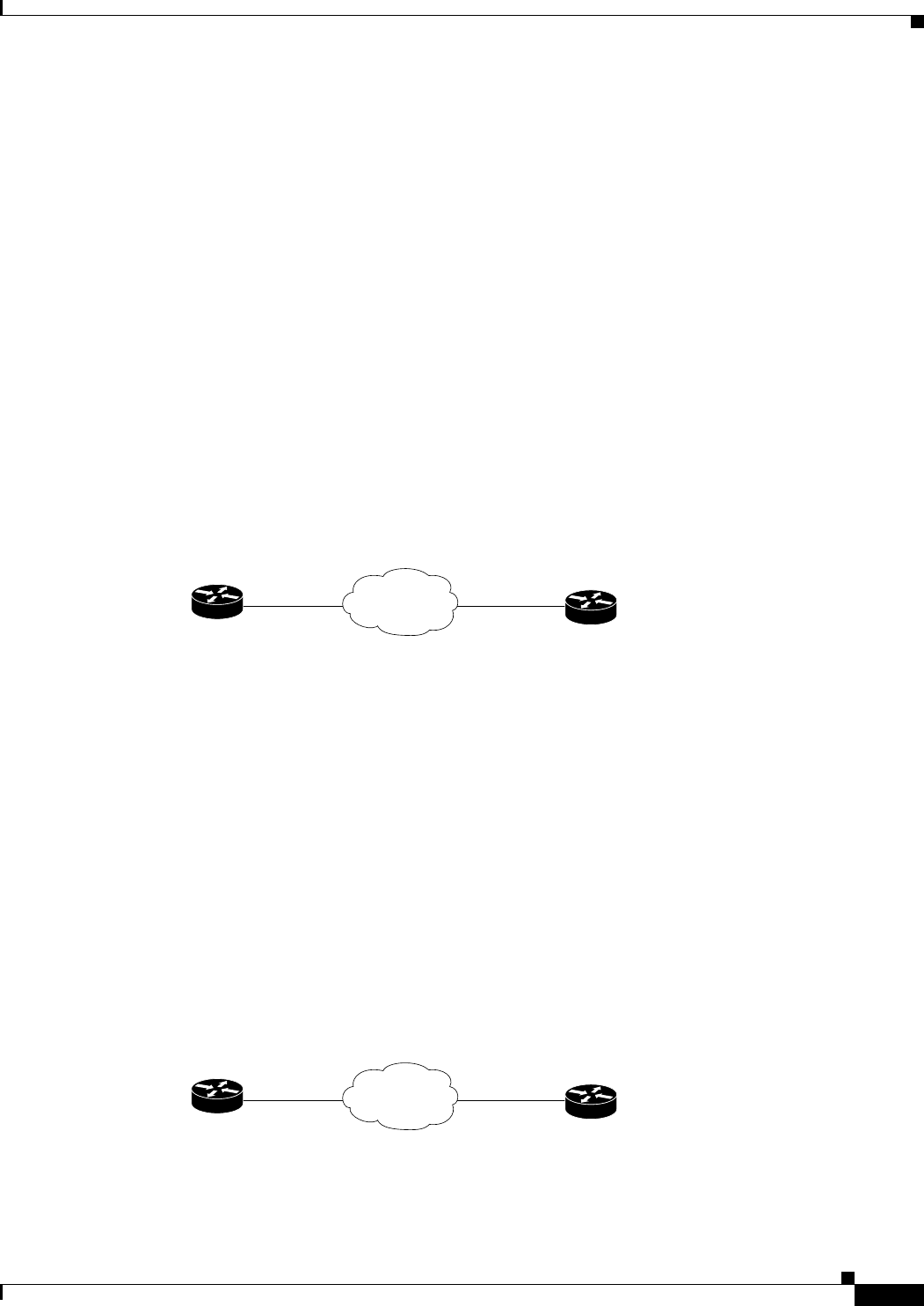

Figure 4-8 Interface Example 6
The following failures are identified in the network:
• A device unreachable alarm is generated on the CE.
• A cloud problem alarm is generated.
The following correlation information is provided:
• No alarms are generated on a PE for Layer1, Layer2 or for the IP layers.
• The device unreachable alarm is correlated to the cloud problem alarm.
Interface Example 7
In this example there is a link down on the PE that results in the CE becoming unreachable.
Figure 4-9 Interface Example 7
PE1
Etherenet
cloud
180438
CE1 unreachable
Subinterface with
IP configured
Subinterface with
IP configured
PE1
Etherenet
cloud
180439
CE1 unreachable
Subinterface with
IP configured
Subinterface with
IP configured
Link is "down"
