Chapter 1 Fault Management Overview
Severity Propagation
From an operator’s point of view, the managed entity is always a complete ticket. Operations such as
Acknowledge, Force-clear or Remove are always applied to the whole ticket. The ticket also assumes an
overall, propagated severity.
Sequence Association and Root Cause Analysis
There are two different types of relationships in Cisco ANA alarm management:
• Sequence Association—The association between events, which creates the event sequences and
alarms.
• Root Cause Analysis—The association between alarms (event sequences) which represents the root
cause relationship.
The following figure shows how both types of relationship are implemented in the ticket hierarchy:

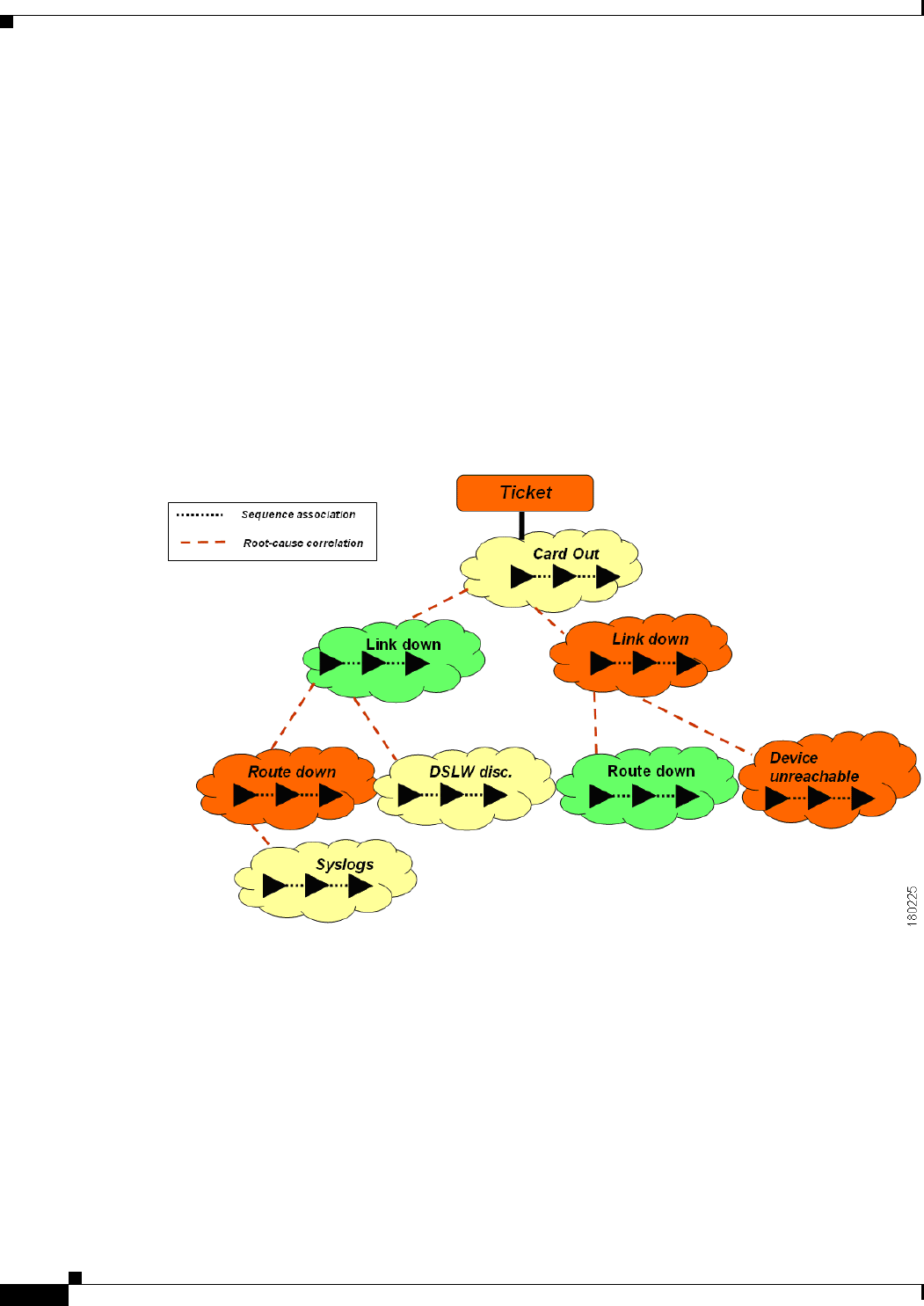

Figure 1-6 Sequence Association vs. Root Cause Analysis
In the above figure, the alarms are correlated into a hierarchy according to root cause. Within each alarm
is its respective event sequence representing the lifecycle of the alarm.
Severity Propagation
Each event has an assigned severity (user-configurable). For example, a link-up event may be assigned
critical severity, while its corresponding link-up event will have normal severity.
