Instruction Manual
Table Of Contents
- Cisco7010 and Cisco 7505 ChassisReplacementInstructions
- Product Overview
- Prerequisites
- Replacing the Chassis
- Replacing a Rack-Mounted Chassis
- Removing the Existing Chassis from the Rack
- Step 1 Turn off the system power and disconnect the power cord and all interface cables from the ...
- Step 2 Have a second person support the chassis while you perform this step. From the front of th...
- Step 3 Pull the chassis out of the rack and place it on the floor or a table.
- Step 4 Use a number2 Phillips screwdriver to loosen and remove the two M4 x 10-mm, Phillips flat...
- Step 5 Pull the ears off the chassis, and place the ears and all fasteners aside.
- Installing the New Chassis in the Rack
- Step 1 Position the chassis so that the end that will be in the front of the rack is closest to y...
- Step 2 Attach the right chassis ear to the chassis first. Hold the ear in the orientation shown i...
- Step 3 Insert the two studs through the holes on the side of the chassis. The ear should be flush...
- Step 4 Insert two M4 x 10-mm, Phillips flathead screws through the ears and into the chassis side...
- Step 5 Repeat Steps2through4 for the left ear. The strip of mounting holes on the front of eac...
- Step 6 Lift the chassis and move it to the rack. Avoid sudden twists or moves to prevent injury.
- Step 7 Insert the rear of the chassis into the rack, pushing it back until the ears meet the fron...
- Step 8 From the front of the rack, insert all eight 10-32x3/8-inch, slotted screws (four on eac...
- Step 9 When all screws are inserted, use a 1/4-inch, flat-blade screwdriver to tighten each one.
- Removing the Existing Chassis from the Rack
- Installing the Cable Management Brackets
- Figure7 Cable Management Brackets—Cisco 7010 Shown
- Step 1 If you have new brackets to install on the new chassis, proceed to Step4. If you are remo...
- Step 2 At the interface processor end of the existing chassis, push the cables out of the cutouts...
- Step 3 Use a number1 Phillips screwdriver to remove the sixpanhead screws (threeper bracket) t...
- Step 4 At the interface processor end of the new chassis, place a bracket on one of the inner sid...
- Step 5 Insert and finger-tighten three M3 Phillips screws from the inner side of the chassis, thr...
- Step 6 When all three screws are inserted, use the number1 Phillips screwdriver to tighten the s...
- Step 7 Repeat Steps 4 through 6 for the second bracket.
- Step 8 When connecting the network interface cables or installing processor modules with the inte...
- Moving Processor Modules
- Figure8 Ejector Levers and Captive Installation Screws
- Step 1 Before moving any processor modules, ensure that you have met the following prerequisites ...
- Step 2 Note the slot location of the interface processor you will move. Before removing the inter...
- Step 3 If necessary, disconnect any interface cables that are connected to the processor module.
- Step 4 Use a screwdriver to loosen both of the captive installation screws. (See Figure8a.)
- Step 5 Place your thumbs on the end of each ejector and simultaneously pull them both outward, aw...
- Step 6 Grasp the carrier handle with one hand and pull the processor module straight out of the s...
- Step 7 Place the processor module in the same slot position in the new chassis and align the notc...
- Step 8 While keeping the carrier at a 90-degree orientation to the backplane, carefully slide the...
- Step 9 Using the thumb and forefinger of each hand to pinch each ejector, simultaneously push bot...
- Step 10 Use a screwdriver to tighten the two captive screws to prevent the processor module from ...
- Step 11 Repeat Steps2through10 for the remaining interface processors.
- Step 12 Repeat Steps3through10 for the SP (or SSP) and RP in the Cisco 7010, and the RSP1 in t...
- Checking the Installation
- Step 1 Ensure that the system power switch is in the off position, then reconnect the power cable...
- Step 2 Connect all interface cables to the appropriate interface processor ports. Ensure that all...
- Step 3 Ensure that you have either a console terminal connected to the system console port or a p...
- Step 4 Turn on the system power. The DC OK LED should go on and stay on. If if does, proceed to t...
- Step 5 While the system initializes, the yellow boot error LED on the RP should go on for about t...
- Step 6 When the system boot is complete, the RP or RSP1 begins to initialize the interface proces...
- Step 7 If the enabled LED on a single interface processor remains off, suspect that the interface...
- Step 8 If an enabled LED still fails to go on after performing these steps, suspect that the spec...
- Step 9 Verify that the console terminal displays a script and system banner similar to the follow...
- Step 10 After the system initializes, use the various show commands to display the status of the ...
- show Command Descriptions and Examples
- Replacing a Rack-Mounted Chassis
- Cisco Information Online

2 Cisco 7010 and Cisco 7505 Chassis Replacement Instructions
Product Overview
Product Overview
The Cisco 7010 is the five-slot model in the Cisco 7000 series. The Cisco 7010 provides three
interface processor slots. Figure 1 shows the interface processor end of the Cisco 7010. The Route
Processor (RP) and Switch Processor (SP) (or Silicon Switch Processor [SSP]), which are required
system components in all Cisco 7000 Series routers, occupy the two top slots. The remaining three
slots support any combination of interface types: Ethernet, Token Ring, FDDI, and so forth.

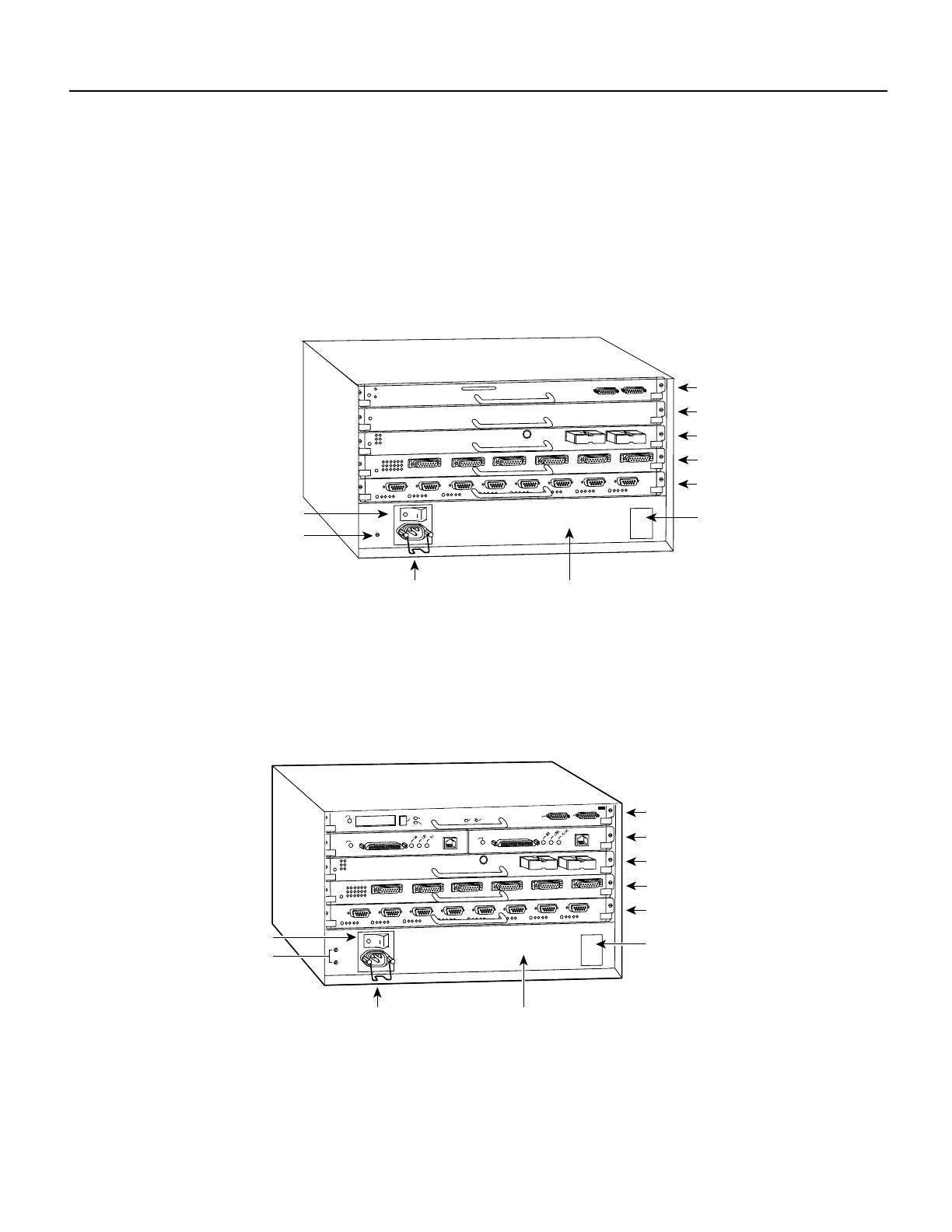

Figure 1 Cisco 7010—Interface Processor End
The Cisco 7505 is a five-slot model that provides four interface processor slots. Figure 2 shows the
interface processor end of the Cisco 7505. The Route Switch Processor (RSP1), which is a required
system component in the Cisco 7505 router, occupies the top slot. The remaining four slots support
any combination of interface types: Ethernet, Token Ring, FDDI, and so forth.
Figure 2 Cisco 7505—Interface Processor End
The interface processor end of the chassis also contains the AC power receptacle (a DC-input power
supply is also available, but not shown), the system power on/off switch, and the DC OK power
status LED, all of which are part of the power supply but accessible through cutouts in the chassis
frame. (See Figure 1 or Figure 2.) To the left of the power switch and receptacle cutout is the chassis
ground screw that provides a chassis ground connection for ESD equipment or a grounding wire.
H2359
RP slot
SP or SSP slot
Interface processor slot 1
DC OK LED
Power switch
Chassis ground
screw
Power receptacle
Interface processor slot 2
Interface processor slot 0
AC-input power supply
H2761
RSP slot
DC OK LED
o
wer switch
Chassis
grounding
receptacles
Power receptacle AC-input power supply
EJECT
SLOT 0
SLOT 1
NORMAL
CPU HALT
RESET
AUX.
CONSOLE
ROUTE SWITCH PROCESSOR
ENABLE
ENABLE
Interface processor slot 1
Interface processor slot 2
Interface processor slot 0
Interface processor slot 3
