Task 8Using CiscoWorks 2000 Resource Manager Essentials
About CiscoWorks 2000 RME
"
Basic Dial NMS Implementation Guide
Using CiscoView
CiscoView is a GUI-based device management software application that lets you access dynamic status,
statistics, and comprehensive configuration information for Cisco products.
To inspect device-specific characteristics on different Cisco devices, follow these steps:
Step 1
From the top-level map in HPOV, select a device.
Step 2
Go to
Monitor
:
CiscoView
.
Step 3
Select and view different system components.

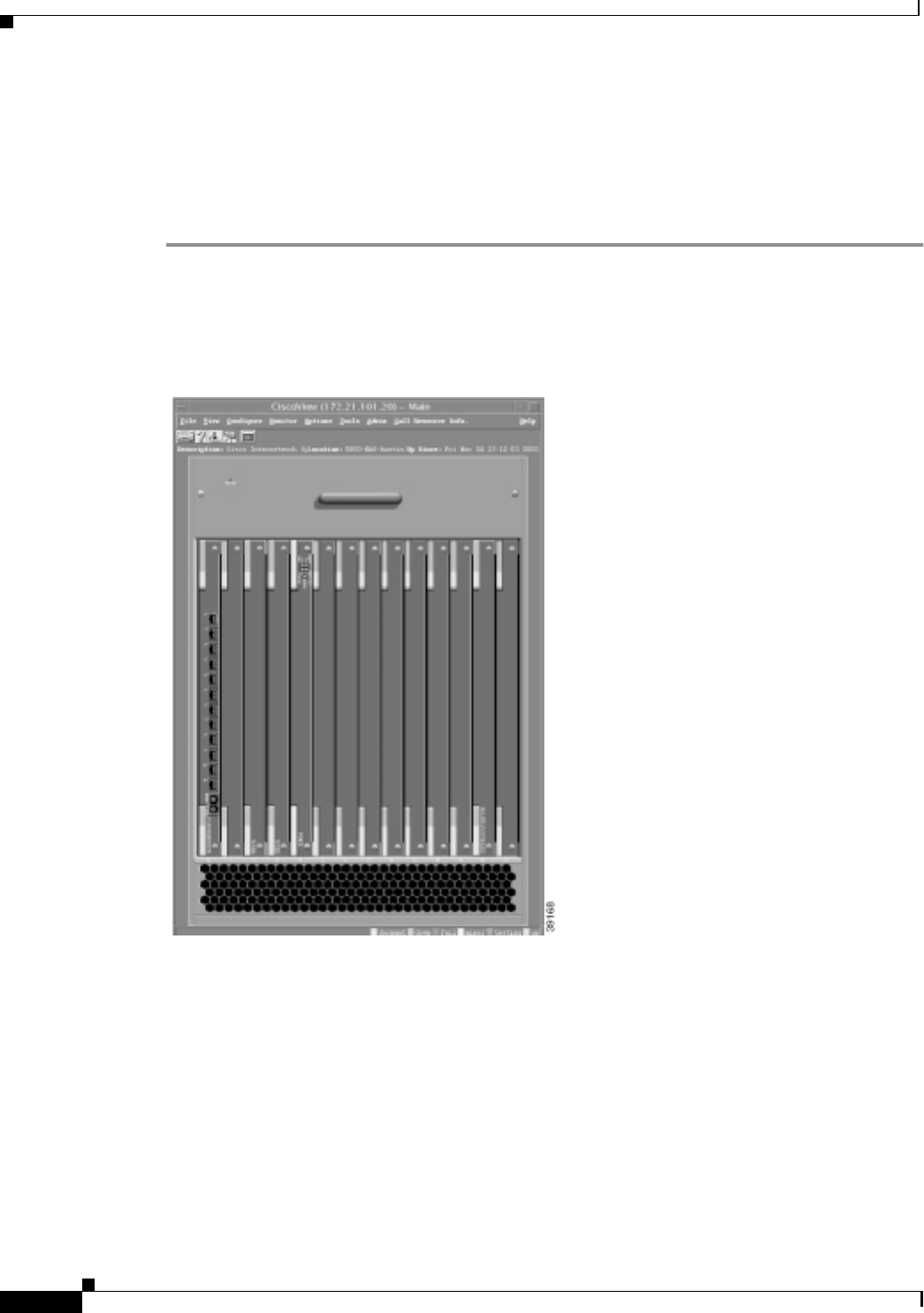

Figure 38 Card Positions in the Cisco AS5800 Dial Shelf
