F-1
Cisco Aironet 1130AG Series Access Point Hardware Installation Guide
OL-8369-05
APPENDIX
F
Priming Lightweight Access Points Prior to
Deployment
This section describes an optional procedure designed to prime or stage your lightweight access points
in a convenient location rather than after they are installed in possibly difficult to reach locations. This
process can be used when a DHCP server is not reachable by your deployed access point and it helps
limit potential installation problems to primarily Ethernet and power areas.
Figure F-1 illustrates a typical priming configuration for your lightweight access points.

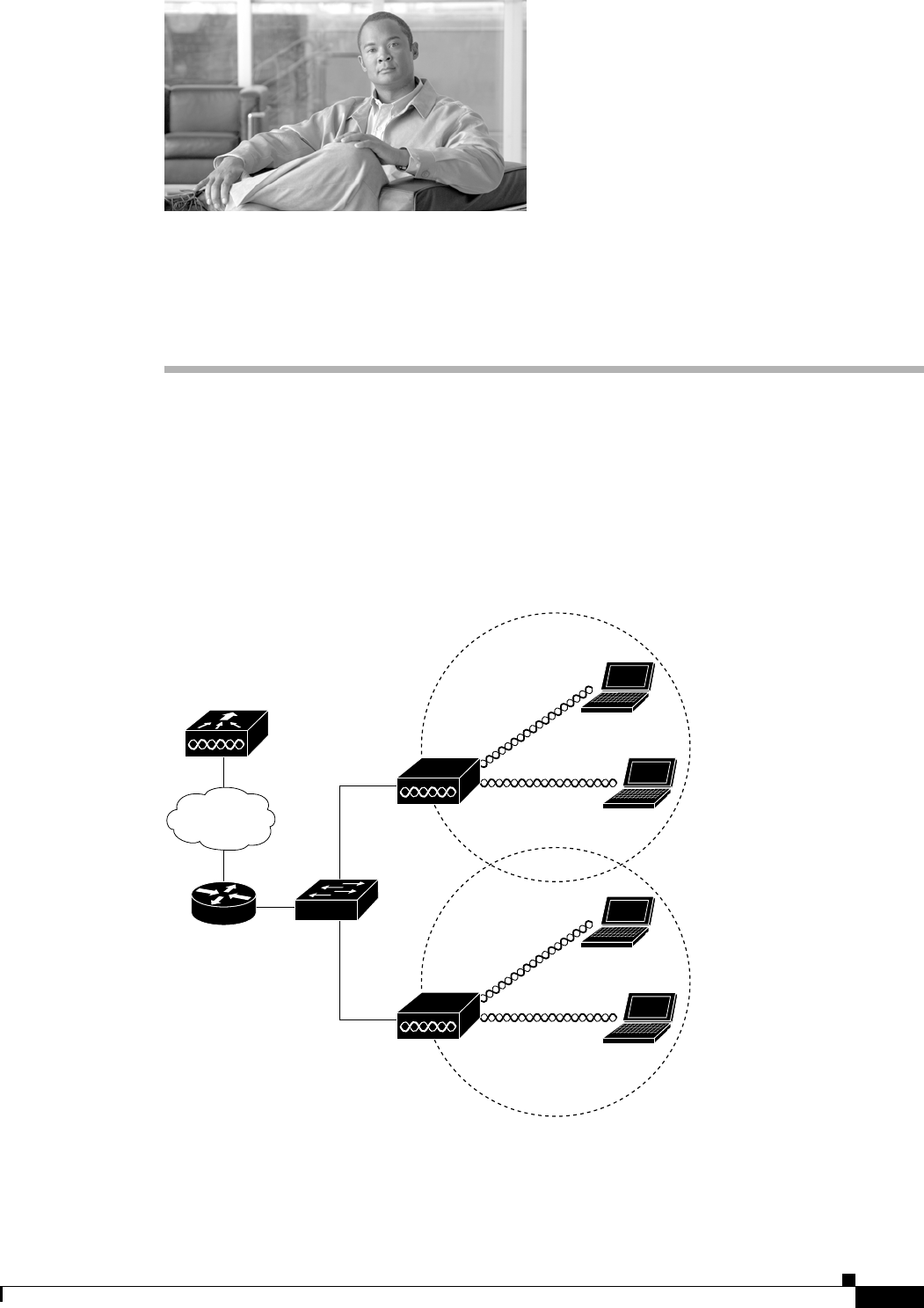

Figure F-1 Typical Lightweight Access Point Priming Configuration
158085
LWAPP
LWAPP
