Cisco CompactFlash Adapter for Bootflash Upgrade Installation Note
78-17277-04
Installing the SP Bootflash Memory Upgrade Kit

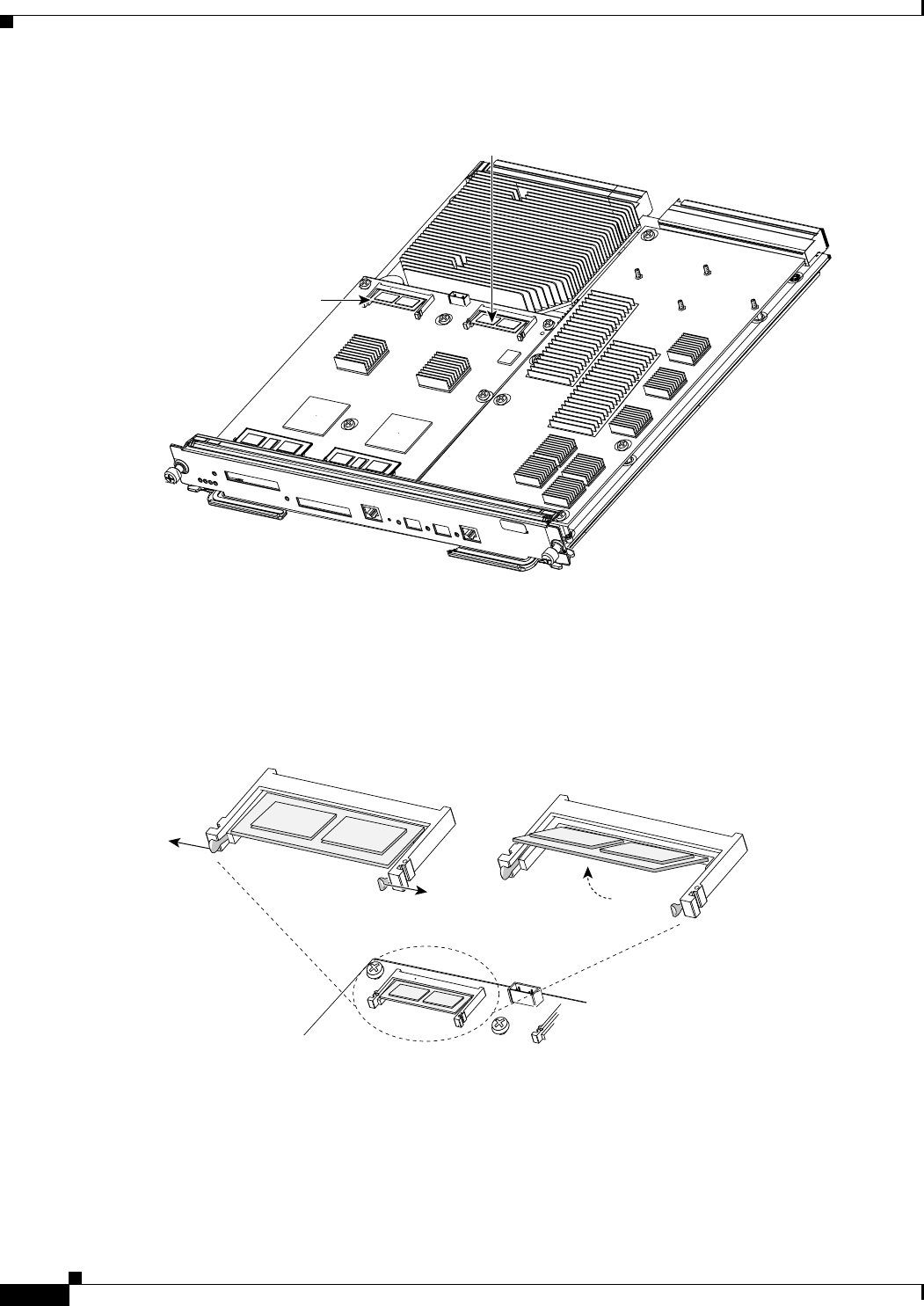

Figure 4 SP and RP DIMM Locations on the Supervisor Engine 720
Step 2
Release the SP DIMM from the socket by simultaneously releasing the two locking spring clip tabs on
either side of the DIMM socket. (See Figure 5, left view.) The DIMM will flip up in the socket. (See
Figure 5, right view.)
Step 3 Hold the DIMM by its edges and carefully remove it from the DIMM socket.
Figure 5 Removing the DIMM
Step 4
Immediately place the DIMM in an antistatic bag.
144402
RP Bootflash
SP Bootflash
144403
