8-14
Cisco ONS 15454 Installation and Operations Guide
November 2001
Chapter 8 Performance Monitoring
Performance Monitoring for Electrical Cards
8.5 Performance Monitoring for Electrical Cards
The following sections define performance monitoring parameters for the EC1, DS1, DS1N, DS3,
DS3N, DS3-12E, DS3N-12E, and DS3XM electrical cards.
8.5.1 EC1 Card Performance Monitoring Parameters

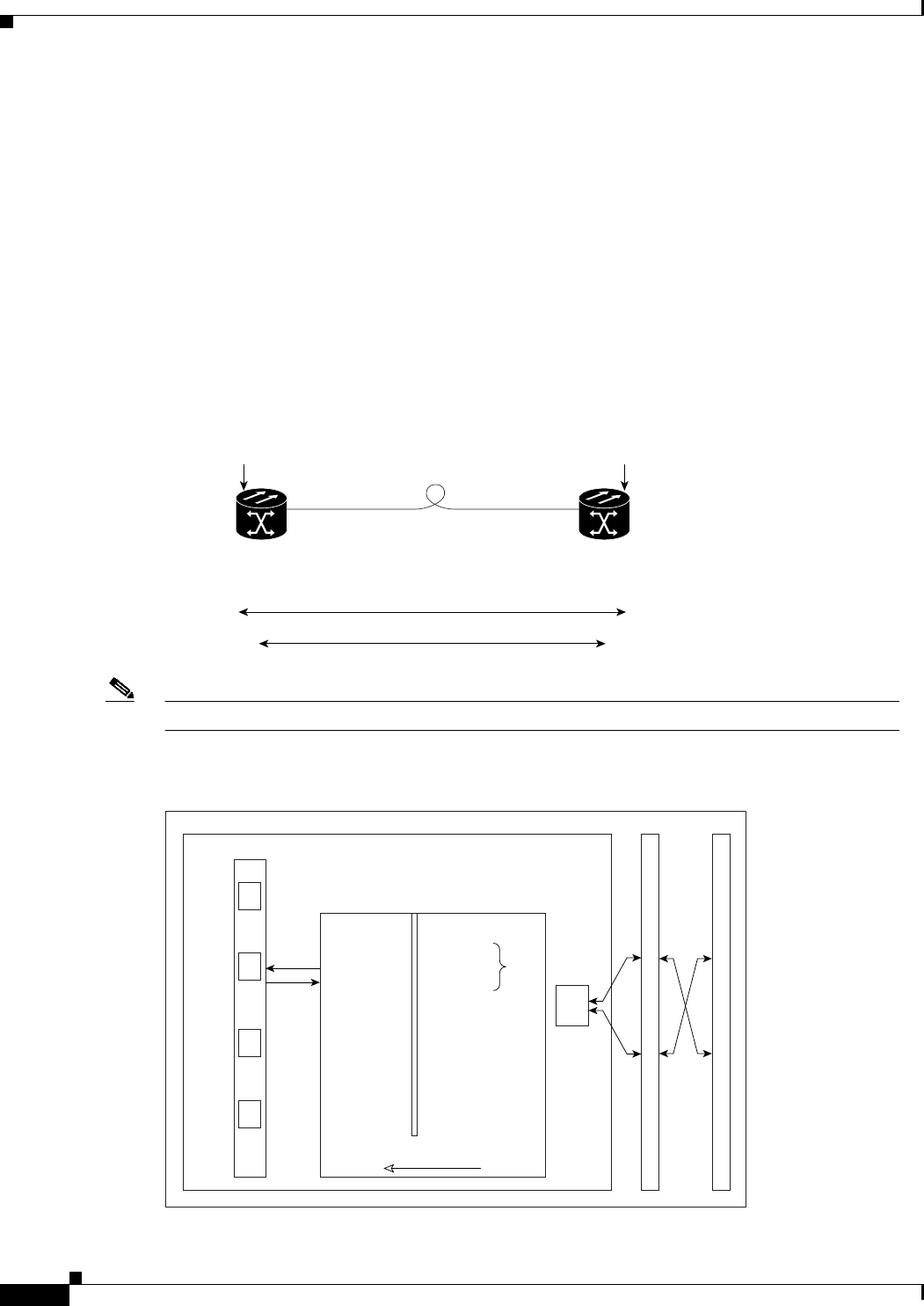

Figure 8-11 shows signal types that support far-end PMs. Far-end performance monitoring is not
reported for EC1. Figure 8-12 shows where overhead bytes detected on the application specific
integrated circuits (ASICs) produce performance monitoring parameters for the EC1 card.
Figure 8-11 Monitored signal types for the EC1 card
Note The XX in the illustration above represents all PMs listed below with the given prefix and/or suffix.
Figure 8-12 PM read points on the EC1 card
55310
ONS 15454
EC1 OC48
Fiber
Near End
EC1 Signal
EC1 Path (EC1 XX) Far End PMs Not Supported
ONS 15454
EC1OC48
Far End
EC1 Signal
STS Path (STS XX-P) Far End PMs Not Supported
55304
ONS 15454
EC1 Card
LIU
Framer
BTC
Tx/Rx
XC10G Card OC-N
Line Side
Path
Level
SONET Side
STS CV-P
STS ES-P
STS FC-P
STS SES-P
STS UAS-P
CV-S
ES-S
SES-S
SEFS-S
CV-L
SES-L
ES-L
UAS-L
FC-L
PPJC-Pdet
NPJC-Pdet
PPJC-Pgen
NPJC-Pgen
PMs read on Framer
