Chapter 3 Node Setup
Viewing ONS 15454 Inventory
Step 11 Repeat Steps 7–10 at each node that will be timed by the node in Step 3.
3.7 Viewing ONS 15454 Inventory
The Inventory tab (Figure 3-10) displays information about cards installed in the ONS 15454 node
including part numbers, serial numbers, hardware revisions, and equipment types. The tab provides a
central location to obtain information and to determine applicability of ONS 15454 Product Change
Notices (PCNs) and Field Service Bulletins (FSBs). Using the ONS 15454 export feature, you can export
inventory data from ONS 15454 nodes into spreadsheet and database programs to consolidate ONS
15454 information for network inventory management and reporting.

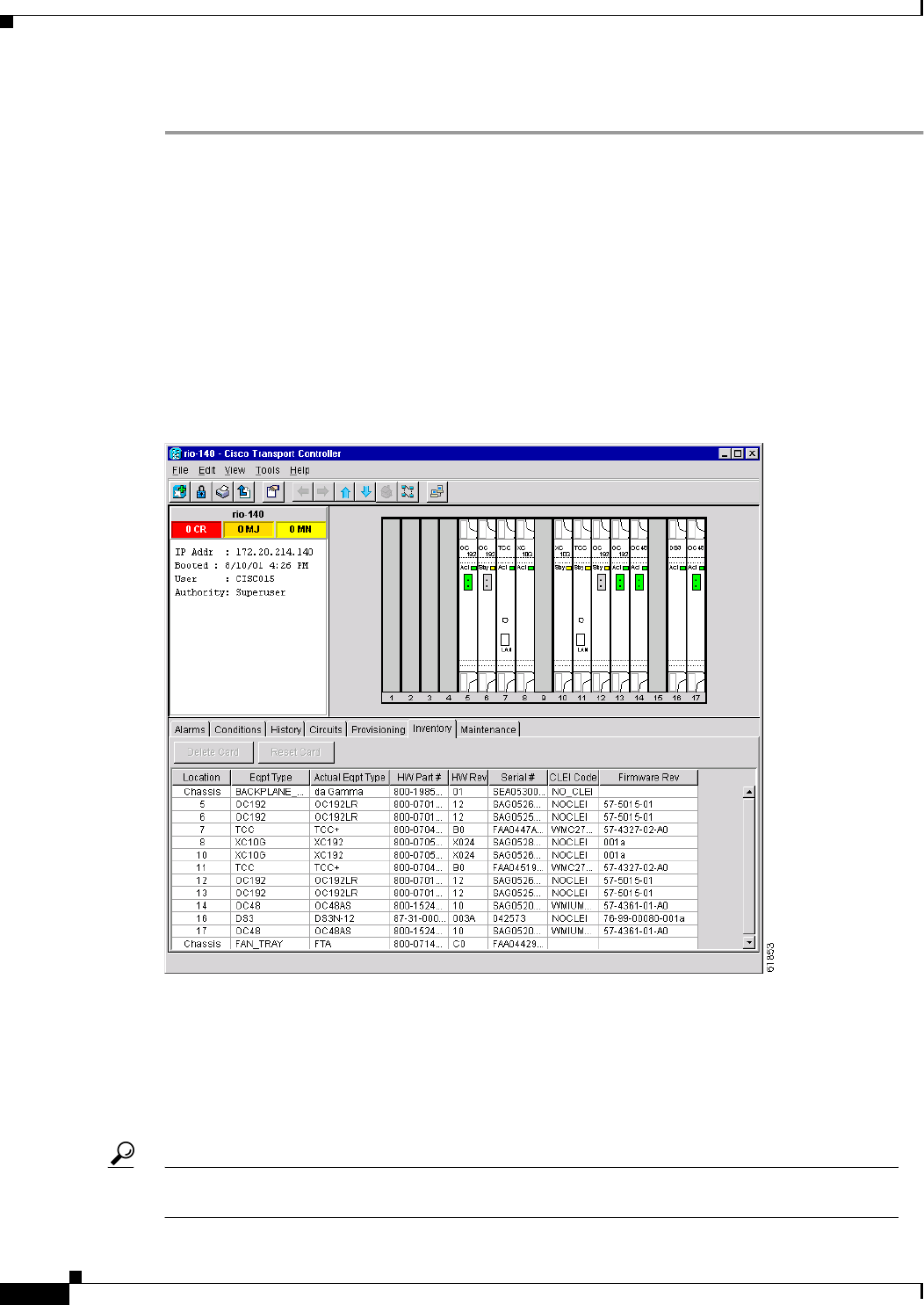

Figure 3-10 Displaying ONS 15454 hardware information
The Inventory tab displays the following information about the cards installed in the ONS 15454:
• Location—The slot where the card is installed
• Eqpt Type—Equipment type the slot is provisioned for, for example, OC-12 or DS-1
• Actual Eqpt Type—The actual card that is installed in the slot, for example, OC12 IR 4 1310 or
DS1N-14
Tip You can pre-provision a slot before the card is installed by right-clicking the slot in node view and
selecting a card type.
