3-4
Cisco ONS 15454 Installation and Operations Guide
November 2001
Chapter 3 Node Setup
Setting Up Network Information

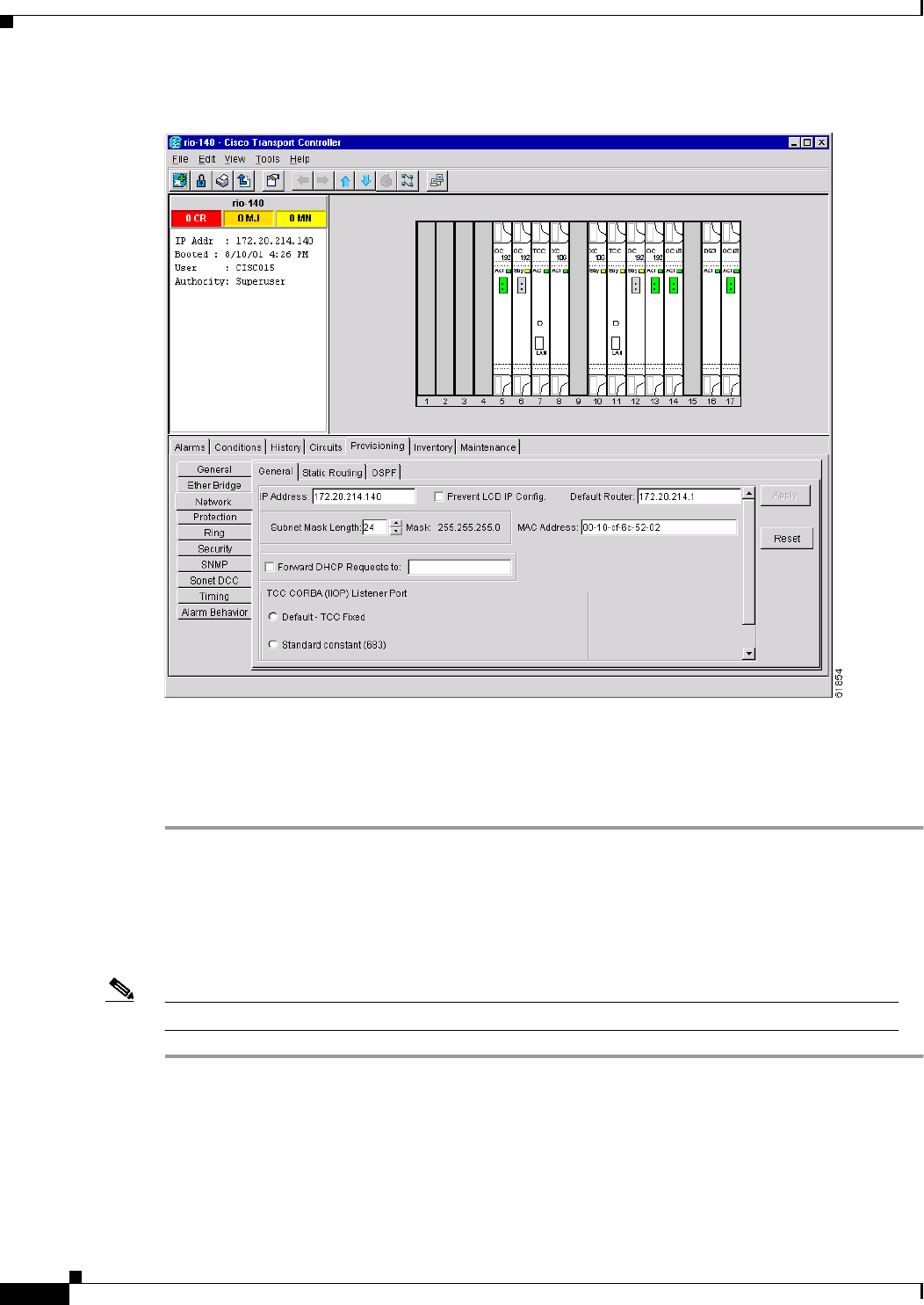

Figure 3-1 Setting up general network information
Step 3
Click Apply.
Step 4 Click Yes on the confirmation dialog box.
Both ONS 15454 TCC+ cards will reboot, one at a time.
Procedure: Change IP Address, Default Router, and Network Mask Using the LCD
You can change the ONS 15454 IP address, subnet mask, and default router address using the Slot,
Status, and Port buttons on the front panel LCD.
Note The LCD reverts to normal display mode after 5 seconds of button inactivity.
Step 1 On the ONS 15454 front panel, repeatedly press the Slot button until Node appears on the LCD.
Step 2 Repeatedly press the Port button until the following displays:
• To change the node IP address, Status=IpAddress (Figure 3-2)
• To change the node network mask, Status=Net Mask
• To change the default router IP address, Status=Default Rtr
