Router Quick Start Guide

ManualsBrandsCisco Systems ManualsNetwork Router7505

Table Of Contents

Quick Start Guide
Cisco 7505 Router
Install the Hardware
- Packing List
Install the Hardware
- Prepare to Install the Router
Install the Hardware
- Rack-Mount the Router (Optional)
Install the Hardware
- Install Interface Processors, Fillers, VIPs, and RSPs
Install the Hardware
- Attach the Cable-Management Brackets
Install the Hardware
- Connect the Power Supply
- Connect the AC-Input Power Supply
  - Step1 Push the cable retention clip away from the power supply receptacle, and push the power ca...
  - Step2 Connect the opposite end of the power cable to an appropriate power source.
- Connect the DC-Input Power Supply
  - Step1 Turn off the power source. Locate the circuit breaker on the panel board that services the...
Install the Hardware
- Step2 Loosen the two captive screws that secure the terminal block cover, as shown in A.
- Step3 Pull the terminal block cover away from the terminal block, as shown in B.
- Step4 Feed the return (RTN) and –48V wires through the large hole in the terminal block cover, a...
- Step5 Attach a nylon cable tie to secure the cables to the terminal block cover.
- Step6 Attach the RTN and –48 leads to the terminal block, as shown in C.
- Step7 Attach the ground cable to the ground terminal.
- Step8 Replace the terminal block cover, as shown in B.
- Step9 Tighten the captive screws on the terminal block cover, as shown in A.
Connect the RSP
- Connect the Console Port
- Connect the Auxiliary Ports
Start and Configure the System
- Step1 Check the following components to make sure they are secure:
- Step2 Check the console terminal to make sure it is connected to the console port and turned on.
- Step3 Turn the system power switch to the on (|) position. The green AC (or DC) OK and fan OK LE...
- Step4 Listen for the system blower; you should immediately hear it operating.
- Step5 Observe the normal LED indicator on the RSP. If this indicator is not on after system init...
- Step6 Wait until the system boot is complete before attempting to verify the status of interface...
- Step7 Observe the LED indicators on the interface processors in your system. When the system boo...
- Step8 Observe the system startup banner. When you start up the router for the first time, the sy...
Start and Configure the System
- Start a Basic Configuration
- Configure Using AutoInstall
Start and Configure the System
- Perform a Basic Configuration Using Setup
Start and Configure the System
- Configure an Ethernet Interface
- Configure a Synchronous Serial Interface
Start and Configure the System
- Perform a Basic Configuration Using Configuration Mode
Install Field Replaceable Units (FRUs)
- Flash Memory Cards
Install Field Replaceable Units (FRUs)
- Format a Flash Memory Card
- Copy Files to Flash Memory
Install Field Replaceable Units (FRUs)
- Make a Flash Memory Card Image Bootable
- Enable Booting from Flash Memory
Install Field Replaceable Units (FRUs)
- Prepare to Remove and Install an RSP
Install Field Replaceable Units (FRUs)
- Remove and Install an Interface Processor, Filler, VIP, or RSP
Install Field Replaceable Units (FRUs)
- Check the RSP Installation
Install Field Replaceable Units (FRUs)
- Check the Interface Processor or VIP Installation
Install Field Replaceable Units (FRUs)
- Copy the Configuration File for an RSP
Install Field Replaceable Units (FRUs)
- Step7 Enter the name of the configuration file. The default is to use the name of the router wit...
- Step8 The system displays the instructions you entered for confirmation. If the instructions are...
Install Field Replaceable Units (FRUs)
- Retrieve the Configuration File for RSPs
Install Field Replaceable Units (FRUs)
- Step7 Enter the show startup-config command to confirm that the configuration file was retrieved...
- Step8 To ensure that the startup configuration file stored in NVRAM is the default running confi...
Install Field Replaceable Units (FRUs)
- Remove and Install Port Adapters
Install Field Replaceable Units (FRUs)
- Remove the Power Supply
Install Field Replaceable Units (FRUs)
- Replace the Power Supply

INSTALL THE HARDWARE

CONNECT THE RSP

TART AND CONFIGURE THE SYSTEM

INSTALL FIELD REPLACEABLE UNITS (FRUS)

Quick Start Guide

Is Cisco documentation helpful? Click here or go to http://www.cisco.com/warp/public/732/docsurvey/rtg/ to

give us your feedback.

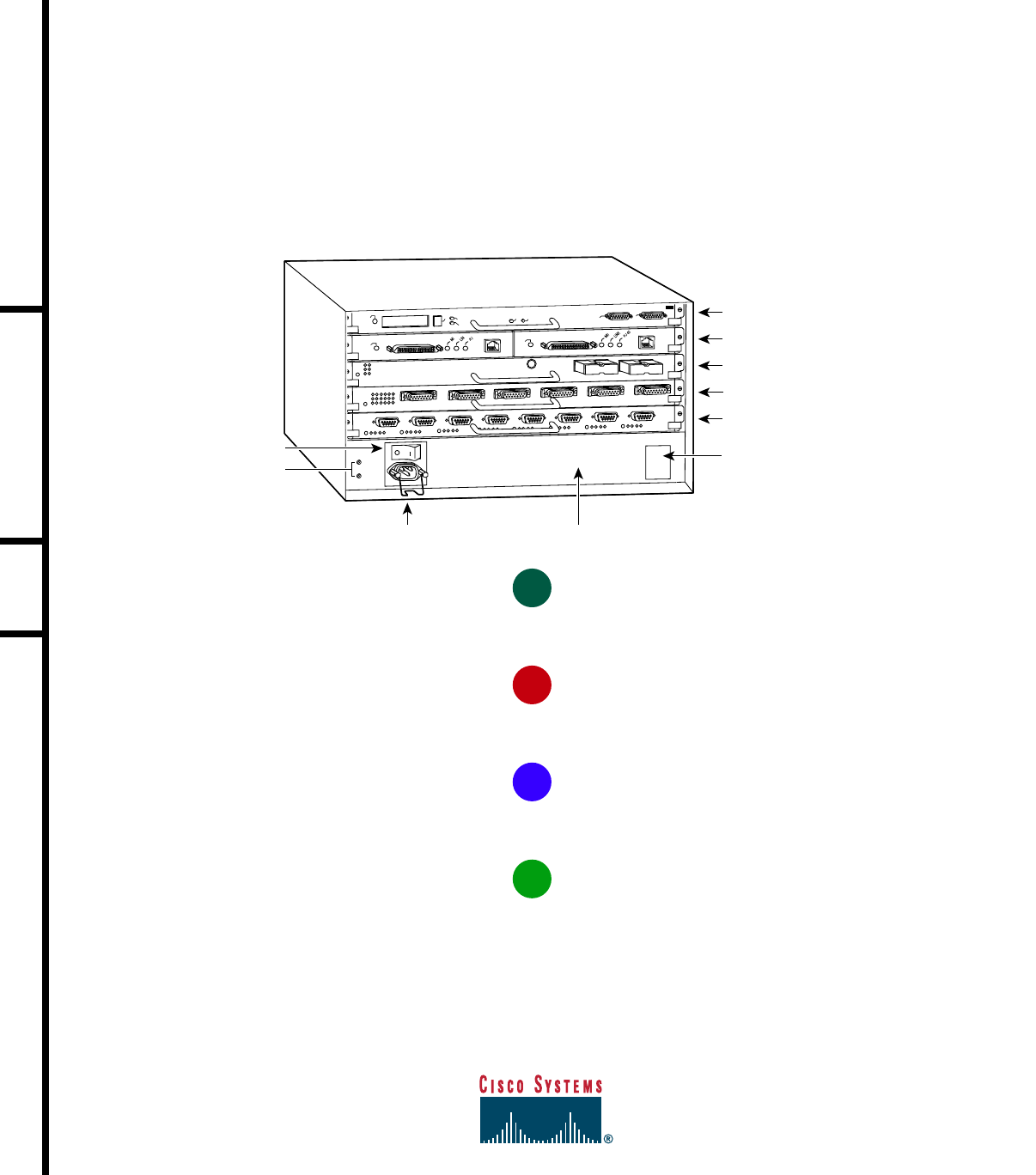

CISCO 7505 ROUTER

H2761

RSP slot

DC OK LED

Power switch

Chassis

grounding

receptacles

Power receptacle AC-input power suppl

EJECT

SLOT 0

SLOT 1

NORMAL

CPU HALT

RESET

AUX.

CONSOLE

ROUTE SWITCH PROCESSOR

ENABLE

Interface processor slot 1

Interface processor slot 2

Interface processor slot 0

Interface processor slot 3
