Appendix C Cable and Port Specifications
Jumper Power Cord

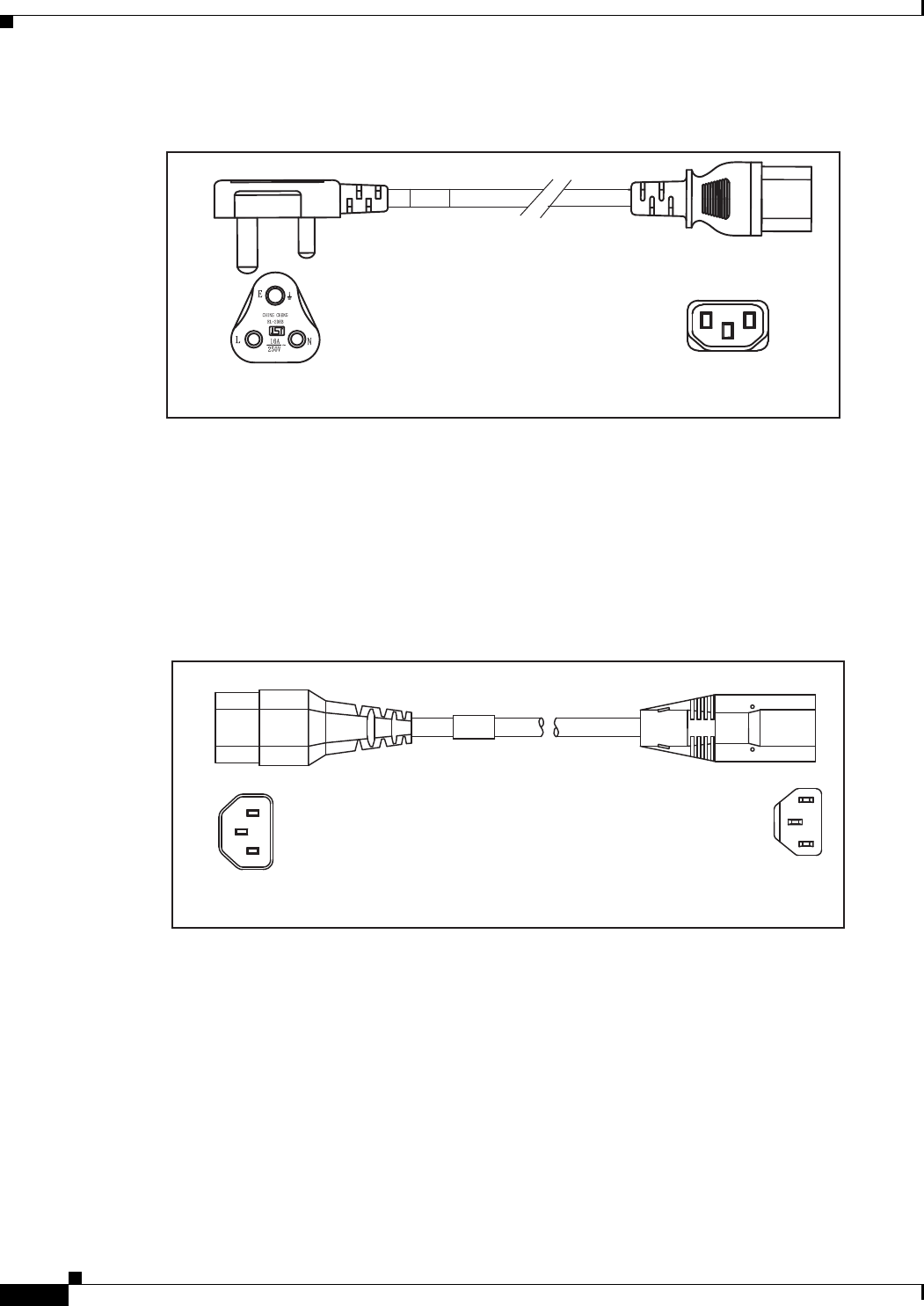

Figure C-14 CAB-IND-10A
Jumper Power Cord
Figure C-15 shows the plug connector on the optional jumper power cord for the Cisco Nexus 6000
Series switches. This cable plugs into the power supply, and the receptacle of a power distribution unit
for a cabinet. This cable comes in 6- and 9-foot (2- and 3-meter) lengths.
Figure C-15 CAB-C13-C14-JMPR, Jumper Power Cord
Connector
EL701B (IEC60320/C13)
Cordset rating 10A, 250V
(8.2 feet) (2.5m)
Plug:
EL 208B (IS 6538-1971)
192259
Cordset rating 10A, 250V
(686mm)
Plug:
SS10A
186569
Connector:
HS10S
