7. The MAC address label on the top of the board has a hexadecimal number on it. It has the
following format: AB1234567890. When programming the MAC address, use the following
format: 0xAB:0x12:0x34:0x56:0x78:0x90. This is an example MAC address.
8. Remember, assign a unique MAC address to each board.

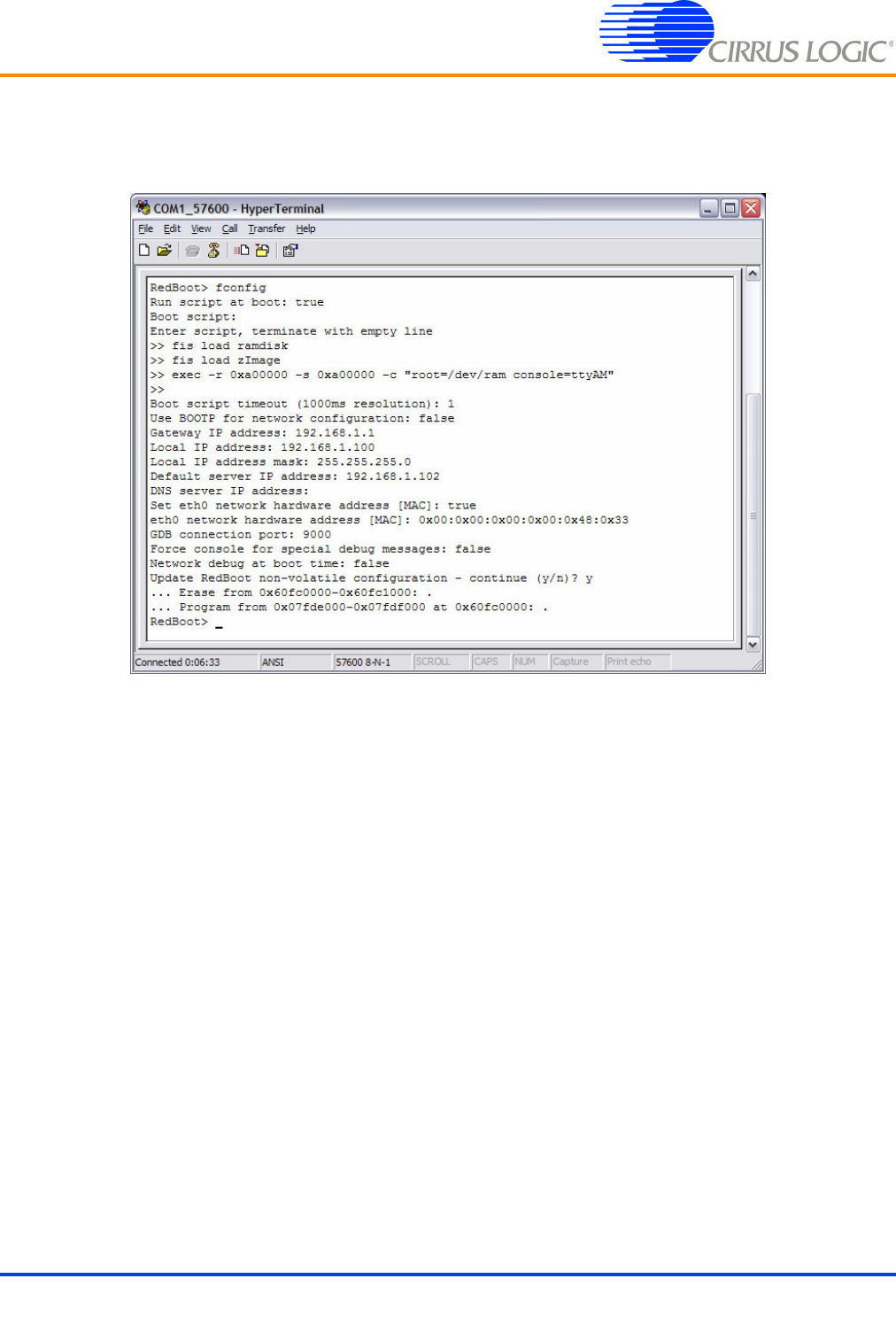

9. Press and release pushbutton S3 "/POR" for the changes to take effect. You should see the
following.
Note: It will say "No image 'image_name' found". That is ok for now. We have not downloaded and programmed those images into
Flash yet
