CS5560
10 DS713PP2
5/4/09
DIGITAL CHARACTERISTICS
T
A
= TMIN to TMAX; VL = 3.3V, ±5% or VL = 2.5V, ±5% or 1.8V, ±5%; VLR = 0V
DIGITAL FILTER CHARACTERISTICS
T
A
= TMIN to TMAX; VL = 3.3V, ±5% or VL = 2.5V, ±5% or 1.8V, ±5%; VLR = 0V
Parameter Symbol Min Typ Max Unit
Input Leakage Current I
in
--2µA
Digital Input Pin Capacitance C
in
-3-pF
Digital Output Pin Capacitance C
out
-3-pF
MCLK
SCLK(i)
SDO
CS
RDY
LSBMSB
t
19
t
18
t
20
t
17
t
15
t
21

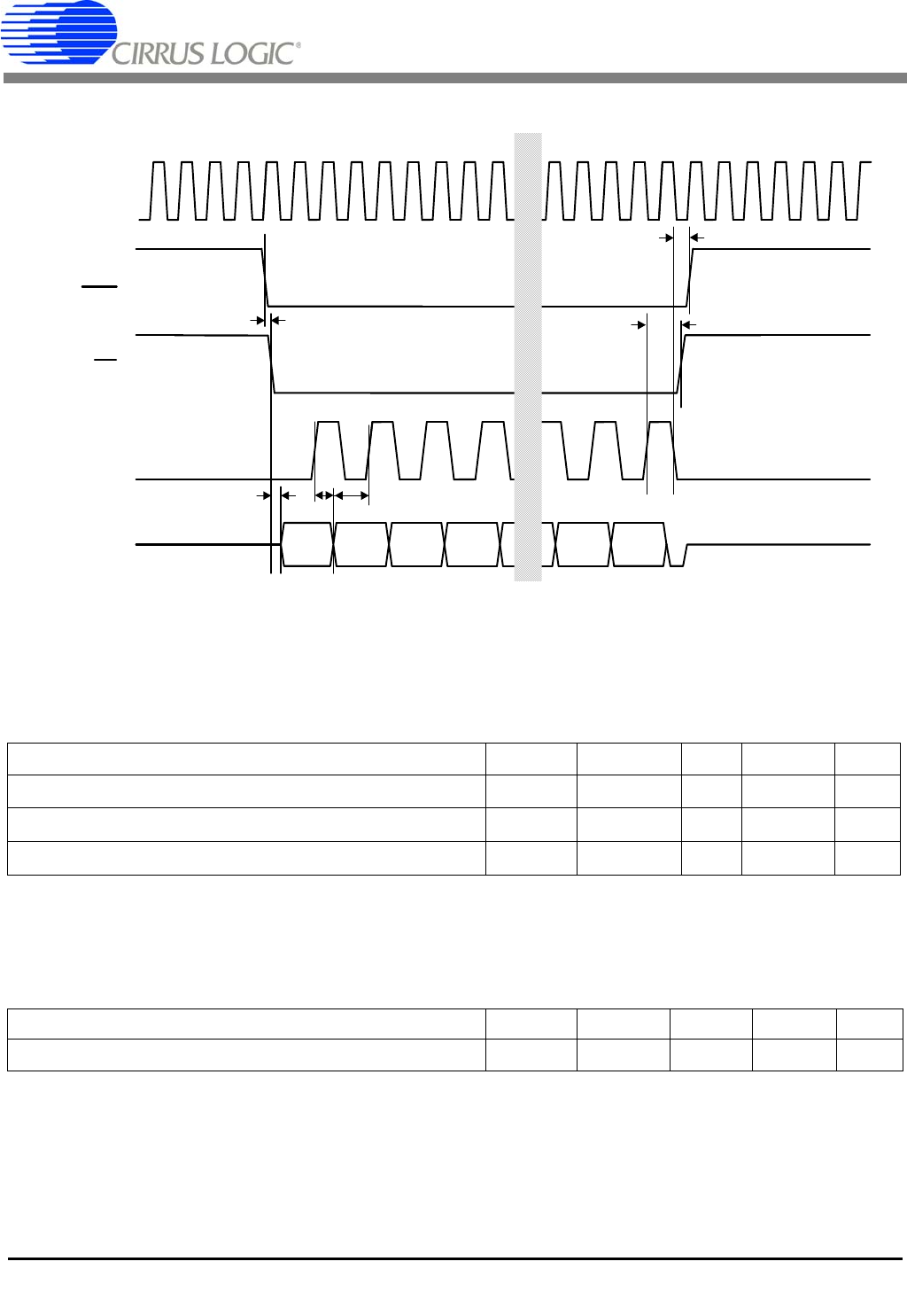

Figure 4. SEC Mode - Discontinuous SCLK Read Timing (Not to Scale)
Parameter Symbol Min Typ Max Unit
Group Delay - - 160 - MCLKs
