4.6.2 Serial Audio Interface Formats
The CODEC_SP and SAI_SP digital audio serial ports support five formats with varying bit depths from
16 to 24 as shown in Figures 10 to 14. These formats are selected using the configuration bits in the reg-
isters, “Functional Mode (address 03h)” on page 47 and “Interface Formats (address 04h)” on page 49.
For the diagrams below, Single-Speed Mode is equivalent to Fs = 32, 44.1, 48 kHz; Double-Speed Mode
is for Fs = 64, 88.2, 96 kHz; and Quad-Speed Mode is for Fs = 176.4, 196 kHz.
Left Channel
Right Channel
CX_SDINx
CX_SDOUT
SAI_SDOUT
+3 +2 +1+5 +4
-1 -2 -3 -4 -5
+3 +2 +1+5 +4
-1 -2 -3 -4
MSB
MSB
LSB LSB
CX_LRCK
SAI_LRCK
CX_SCLK
SAI_SCLK

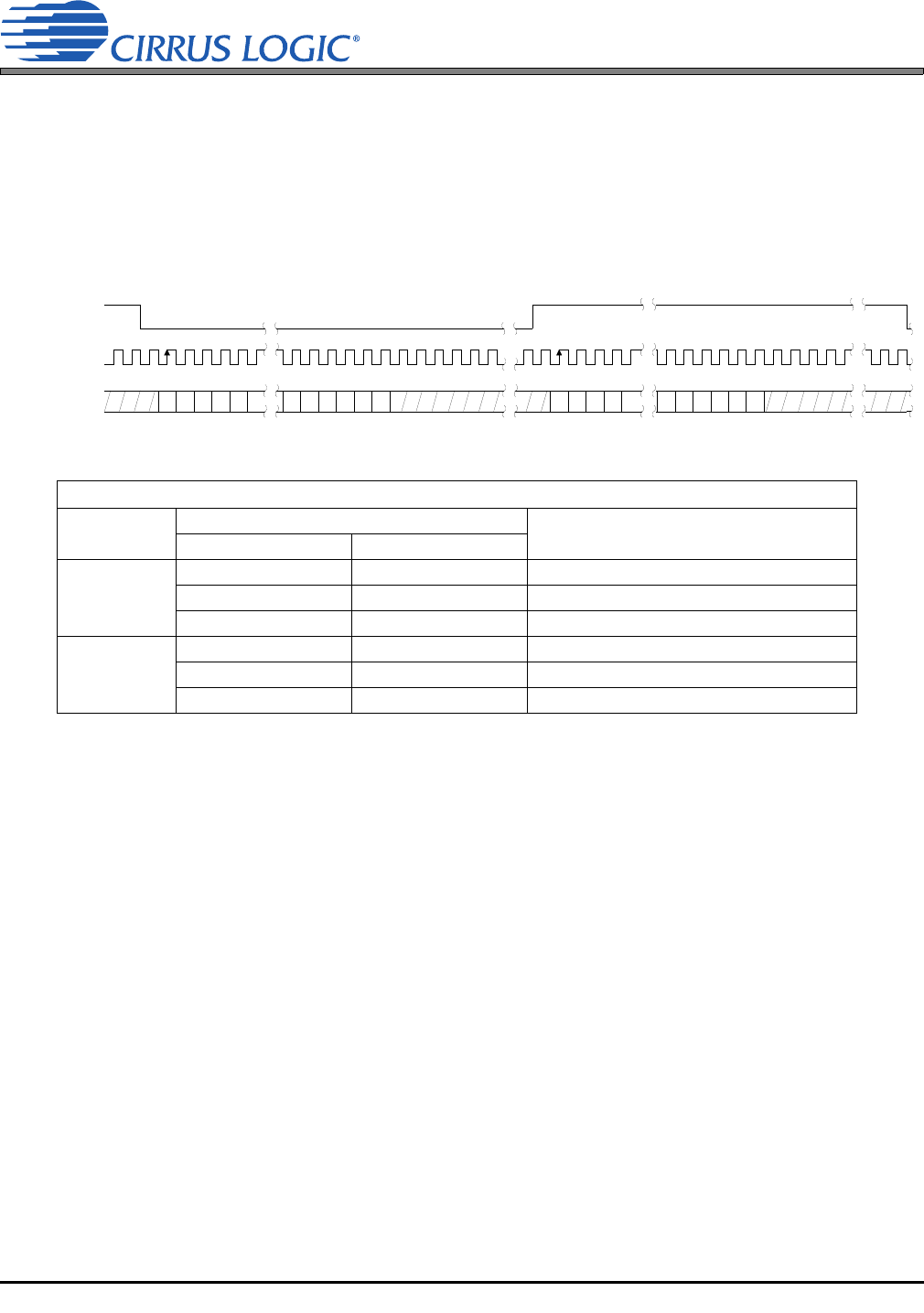

Figure 10. I²S Serial Audio Formats
I²S Mode, Data Valid on Rising Edge of SCLK
Bits/Sample
SCLK Rate(s)
Notes
Master Slave
16
64 48, 64, 128 Fs Single-Speed Mode
64 Fs 64 Fs Double-Speed Mode
64 Fs 64 Fs Quad-Speed Mode
18 to 24
64, 128, 256 Fs 48, 64, 128 Fs Single-Speed Mode
64 Fs 48, 64 Fs Double-Speed Mode
64 Fs 48, 64 Fs Quad-Speed Mode
