DS583F2 11
CS42516
SWITCHING CHARACTERISTICS
(T
A
= -10 to +70° C; VA=VARX = 5 V, VD =VLC= 3.3 V, VLS = 1.8 V to 5.25 V; Inputs: Logic 0 = DGND, Logic 1 =
VLS, C
L
= 30 pF)
Notes:
12. After powering-up the CS42516, RST
should be held low after the power supplies and clocks are set-
tled.
13. See Table 1 on page 25 for suggested OMCK frequencies
14. Limit the loading on RMCK to 1 CMOS load if operating above 24.576 MHz.
15. Not valid when RMCK_DIV in “Clock Control (address 06h)” on page 52 is set to Multiply by 2.
16. 76.5 ns for Single-Speed and Double-Speed modes, 23 ns for Quad-Speed Mode.
Parameters Symbol Min Typ Max Units
RST Pin Low Pulse Width (Note 12)
1--ms
PLL Clock Recovery Sample Rate Range
30 - 200 kHz
RMCK Output Jitter (Note 14)
- 200 - ps RMS
RMCK Output Duty Cycle (Note 15)
45 50 55 %
OMCK Frequency (Note 13)
1.024 - 25.600 MHz
OMCK Duty Cycle (Note 13)
40 50 60 %
CX_SCLK, SAI_SCLK Duty Cycle
45 50 55 %
CX_LRCK, SAI_LRCK Duty Cycle
45 50 55 %
Master Mode
RMCK to CX_SCLK, SAI_SCLK active edge delay
t
smd
0-15ns
RMCK to CX_LRCK, SAI_LRCK delay
t
lmd
0-15ns
Slave Mode
CX_SCLK, SAI_SCLK Falling Edge to CX_SDOUT,
SAI_SDOUT Output Valid
t
dpd
- (Note 16) ns
CX_LRCK, SAI_LRCK Edge to MSB Valid
t
lrpd
-26.5ns
CX_SDIN Setup Time Before CX_SCLK Rising Edge
t
ds
10 - - ns
CX_SDIN Hold Time After CX_SCLK Rising Edge
t
dh
30 - - ns
CX_SCLK, SAI_SCLK High Time
t
sckh
20 - - ns
CX_SCLK, SAI_SCLK Low Time
t
sckl
20 - - ns
CX_SCLK, SAI_SCLK falling to CX_LRCK, SAI_LRCK
Edge
t
lrck
-25 - +25 ns
CX_SCLK
SAI_SCLK
(output)
RMCK
t
smd
t
lmd
CX_LRCK
SAI_LRCK
(output)
sckh
sckl
t
t
MSB
MSB-1
t
dpd
CX_SDOUT
SAI_SDOUT
CX_SDINx
dh
t
ds
t
lrpd
t
lrck
t
CX_SCLK
SAI_SCLK
(input)
CX_LRCK
SAI_LRCK
(input)

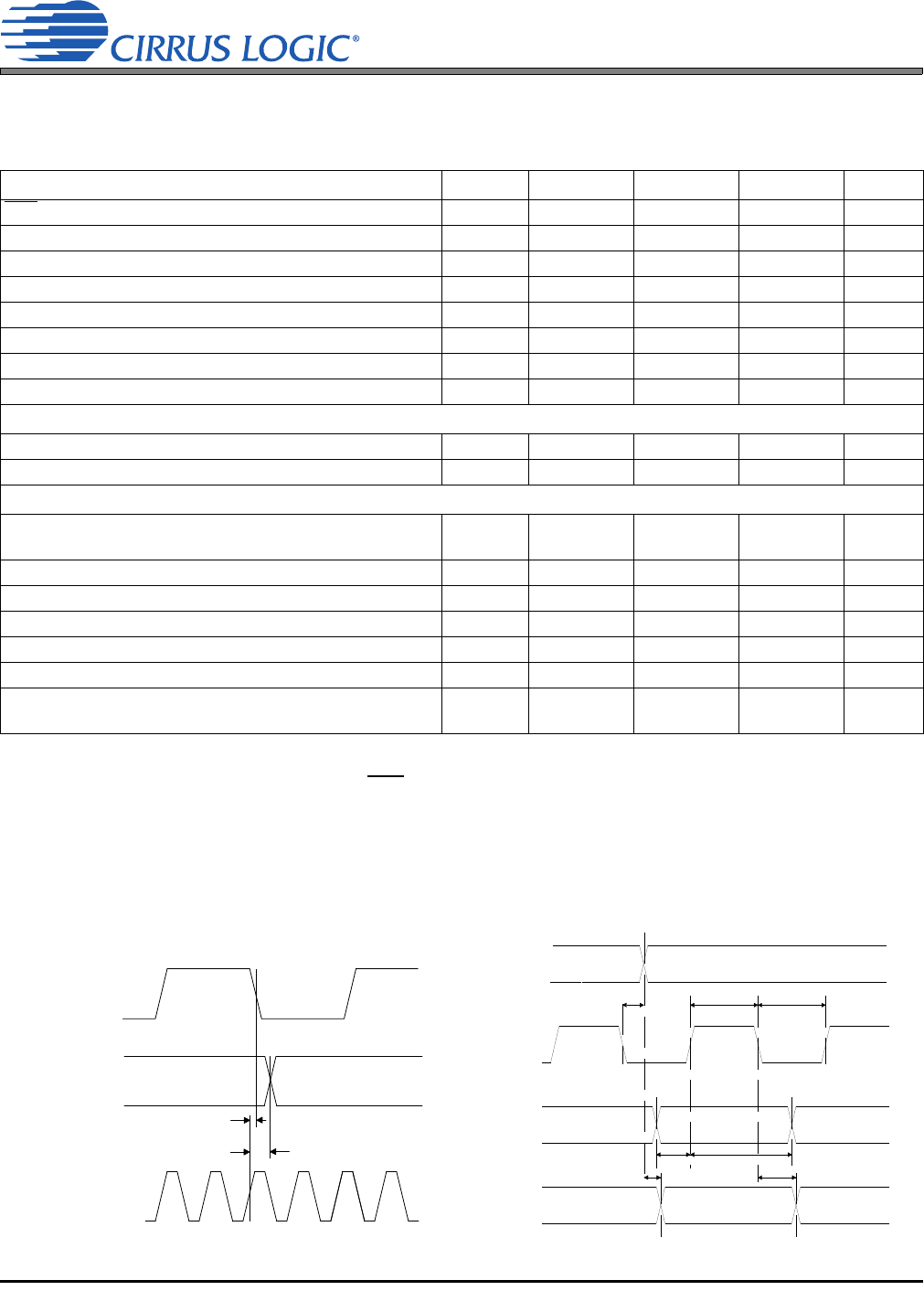

Figure 1. Serial Audio Port Master Mode Timing Figure 2. Serial Audio Port Slave Mode Timing
