10.
T
o confir
m results, click th
e
Quick Measurement
s
t
ab to br
ing it forward, and click the
ST
ART
button.
Results should show a reduction in the I
RMS
value without the load.

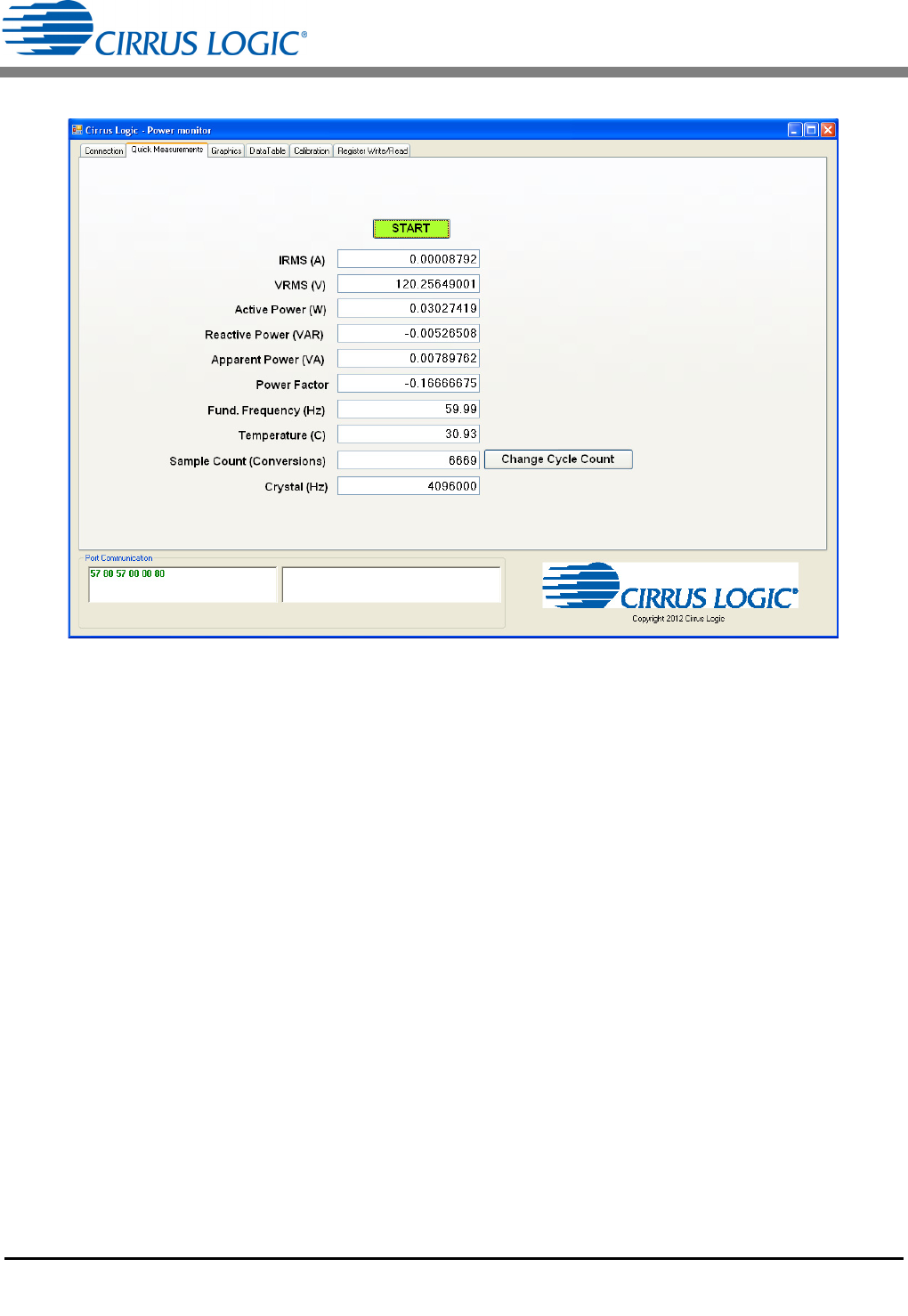

Figure 25. Confirm I
RMS
Reduced After AC Offset Calibration
