- CRD4299-1 AMR: CrystalClear™ AC '97 AMR Reference Design
- Features
- Description
- TABLE OF CONTENTS
- LIST OF FIGURES
- LIST OF TABLES
- Contacting Cirrus Logic Support
- 1. GENERAL INFORMATION
- 2. REFERENCE DESIGN FEATURES
- 3. SCHEMATIC DESCRIPTION
- 4. GROUNDING AND LAYOUT
- 5. AUDIO PERFORMANCE EVALUATION
- Table 1. Reference Designators
- Table 2. Microphone Support Specifications
- Table 3. Full Duplex Specifications
- Table 4. Analog Mixer, Line In to Line Out Specifications
- Table 5. Analog Mixer, Mic In to Line Out Specifications
- 5.1 Plots
- Figure 1. Full Duplex (A-D-PC-D-A): Line In/Out Frequency Response
- Figure 2. Full Duplex (A-D-PC-D-A): Line In/Out Dynamic Range
- Figure 3. Full Duplex (A-D-PC-D-A): Line In/Out THD+N vs. Frequency
- Figure 4. Analog Mixer (A-A): Line In/Out Frequency Response
- Figure 5. Analog Mixer (A-A): Line In/Out Dynamic Range
- Figure 6. Analog Mixer (A-A): Line In/Out THD+N vs. Frequency
- Figure 7. Analog Mixer (A-A): Mic In/Line Out Frequency Response
- Figure 8. Analog Mixer (A-A): Mic In/Line Out Dynamic Range
- Figure 9. Analog Mixer (A-A): Mic In/Line Out THD+N vs. Frequency
- Figure 10. Analog Mixer (A-A): Line In/Out Crosstalk vs. Frequency
- 6. REFERENCES
- 7. SCHEMATIC, LAYOUT, AND BRACKET DRAWINGS
- 8. BILL OF MATERIALS
CRD4299-1 AMR
10 DS319RD1A1
CwGRAPH 0.65 CrystalWare(tm)
20 100 1 k 10 k 20 k
3
2
1
0
-1
-2
-3
-4
-5
-6
-7
6
5
4
3
2
1
0
-1
-2
-3
-4
CRD429~1\99-1MXL.ADXLEFT RIGHT
Frequency (Hz)
Amplitude (dB)
Amplitude (dB)

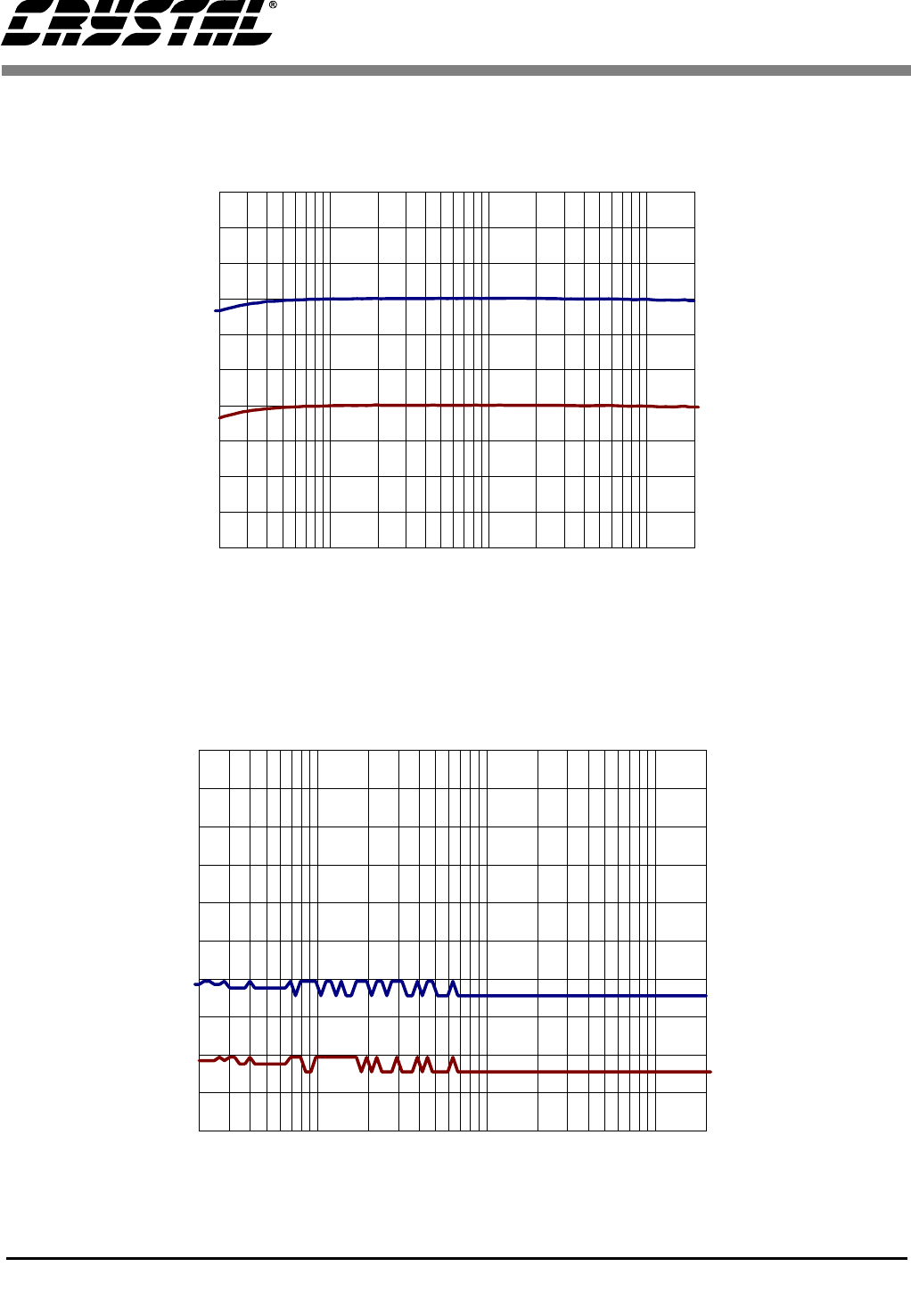

Figure 1. Full Duplex (A-D-PC-D-A): Line In/Out Frequency Response
CwGRAPH 0.65 CrystalWare(tm)
20 100 1 k 10 k 20 k
-60
-65
-70
-75
-80
-85
-90
-95
-100
-105
-110
-50
-55
-60
-65
-70
-75
-80
-85
-90
-95
-100
CRD429~1\99-1NXL.ADXLEFT RIGHT
Frequency (Hz)
Dynamic Range (dB FS A)
Dynamic Range (dB FS A)
Figure 2. Full Duplex (A-D-PC-D-A): Line In/Out Dynamic Range
