CRD4299-1 AMR

CrystalClear™ AC '97 AMR Reference Design

Features

l AMR Audio Codec add-in card designed to

meet the Intel

Audio/Modem Riser

Specification

l High quality, low cost, 2-layer, single sided

adapter board

l CS4299 SoundFusion

Audio Codec ’97

l Complete suite of Analog and Digital I/O

connections:

- Line In, Line Out, Mic In, Modem Audio

connection, CD Audio In, Video In, Aux In,

Headphone Out and Optical Digital Out

l Meets or exceeds Microsoft’s PC 97, PC 98,

and PC 99, both required and advanced,

audio performance requirements.

Description

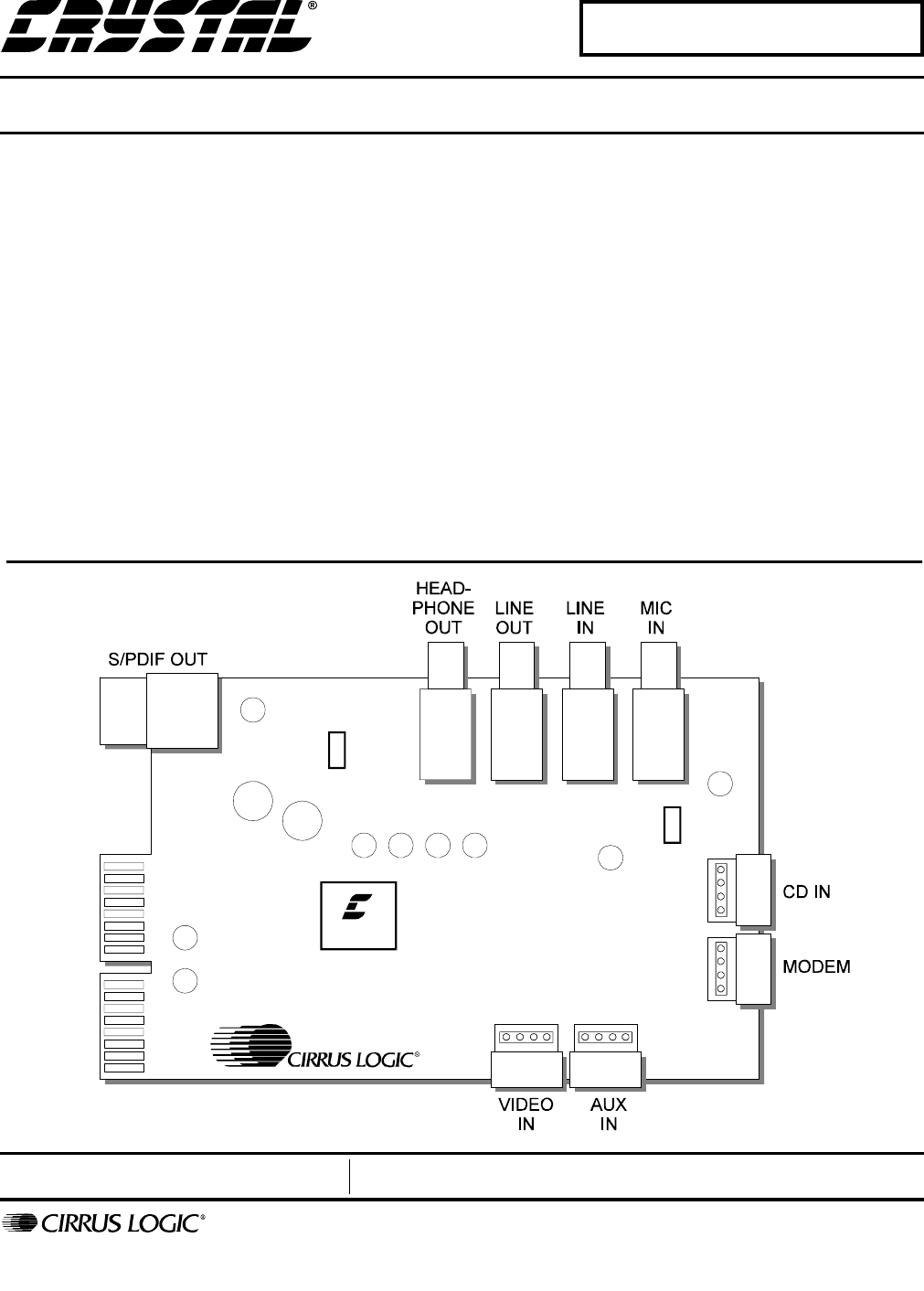

The CRD4299-1 AMR add-in board reference design

showcases Cirrus Logic’s Crystal Audio AC ’97 CS4299

SoundFusion, and is Audio/Modem Riser Specifica-

tion[2], compliant. The CRD4299-1 AMR card is 2.7"

high by 3.6" long.

The CRD4299-1 AMR reference design includes a cus-

tomer ready manufacturing kit. Included in the kit are a

full set of schematic design files (OrCAD

7.2 format),

PCB job files (PADS

ASCII), PCB artwork files

(Gerber) , bracket drawings, and bill of materials. The

design is production ready as is, or can be easily

modified to incorporate specific OEM changes. Docu-

mentation source files are available to assist the OEM to

quickly provide an accurate end user manual.

ORDERING INFO CRD4299-1 AMR

CS4299
