CDB5480U
DS893DB5 37
2.8.3 Setup and Test Window
The Setup and Test window allows the user a way to access CS5480 registers and send commands to
the CS5480 directly. See Figure 31.

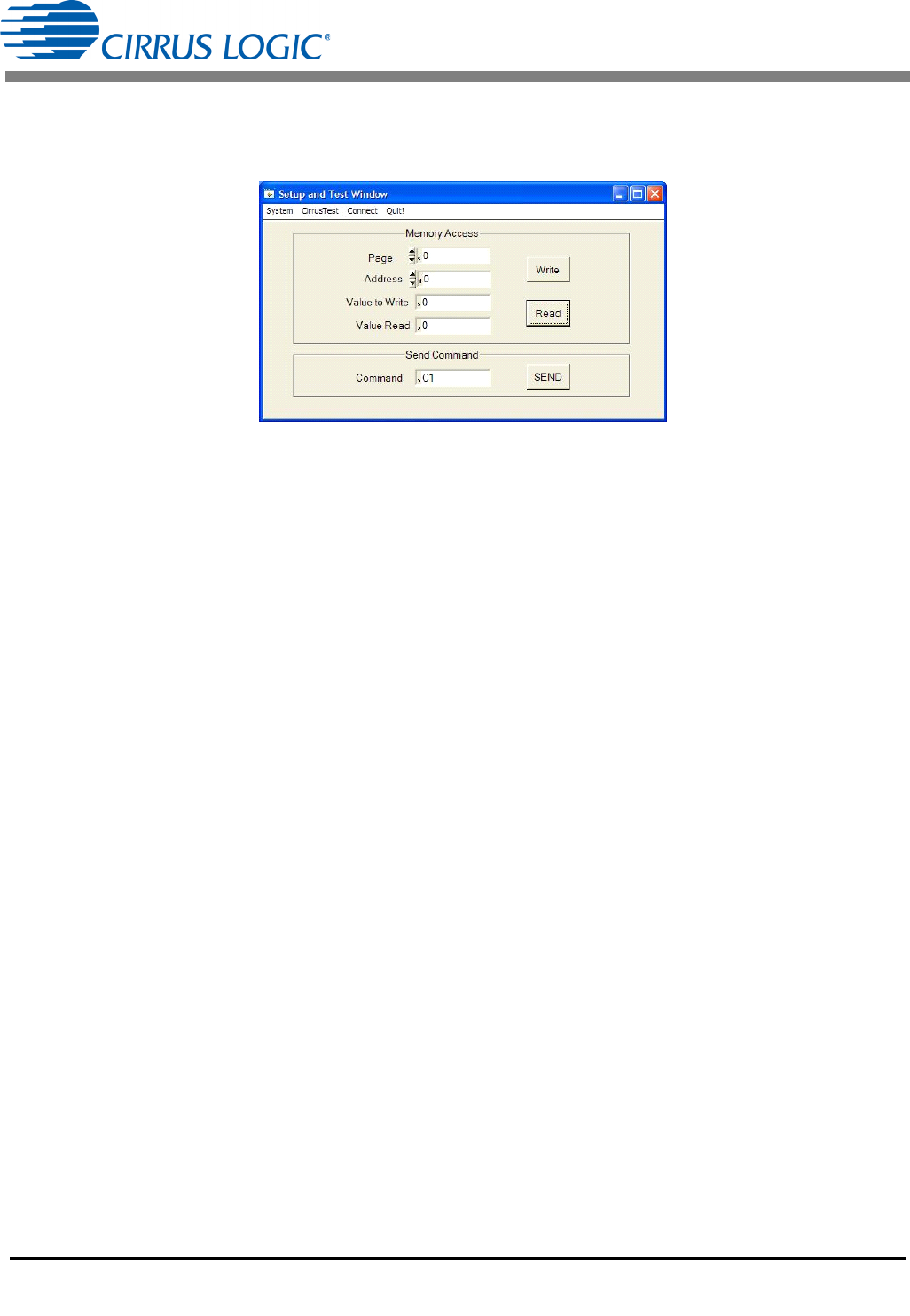

Figure 31. Setup and Test Window
There are three types of transactions: Write, Read, and Send. The CS5480 memory is organized by
pages. In order to properly write a register it is necessary to set the Page, Address, and Value to Write
field and then press the Write button. To read a register it is necessary to set the Page and Address and
then press the Read button. The register result will be displayed in the Value Read field. To send a
command to the CS5480, enter the command in the Command field and press the SEND button. Refer
to the CS5480 data sheet for more details on registers and commands.
