2.8.2 Data Collection to File Window
The Data Collection to File window allows the user to collect instantaneous voltage and current register
data over an extended period of time to a data file. See Figure 30. The following steps are necessary for
data collection to a file:
1. Provide the Time to Collect in seconds.
2. If a delay before data collection is needed, enter the time in seconds for the Delay.
3. Select the voltage and current channel 1 (V1,I1) or voltage and current channel2 (V2,I2).
4. Browse to a directory and enter the file name of the desired file to save.
5. Start the data collection by pressing the START button.
6. The data collection status will be provided in Samples Collected and Time Remaining.
7. The collection will complete without any further interaction by the user or the user may stop the data collec-
tion at any time by pressing the STOP button.

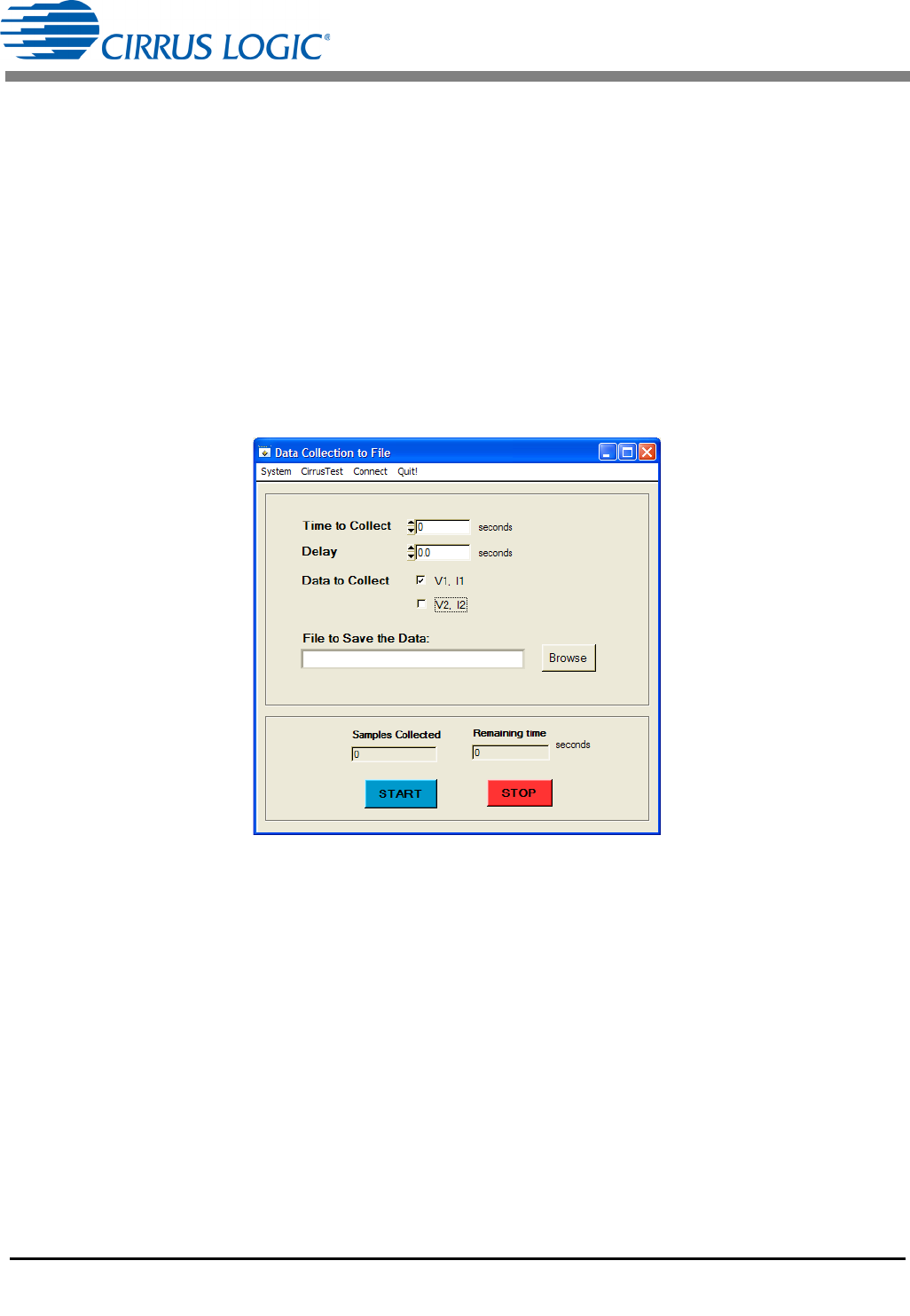

Figure 30. Data Collection to File Window
