CDB5480U
DS893DB5 35
2.8.1.13 Time Domain Information
The following controls and indicators are associated with time domain analysis. Time domain data can be
plotted in the Data Collection window by setting the analysis type selector to Time Domain. See Figure 29.
The time domain plot includes:
• COUNT: displays current x-position of the cursor on the time domain display.
• MAGNITUDE: displays current y-position of the cursor on the time domain display.
• MAXIMUM: indicates the maximum value of the collected data set.
• MINIMUM: indicates the minimum value of the collected data set.

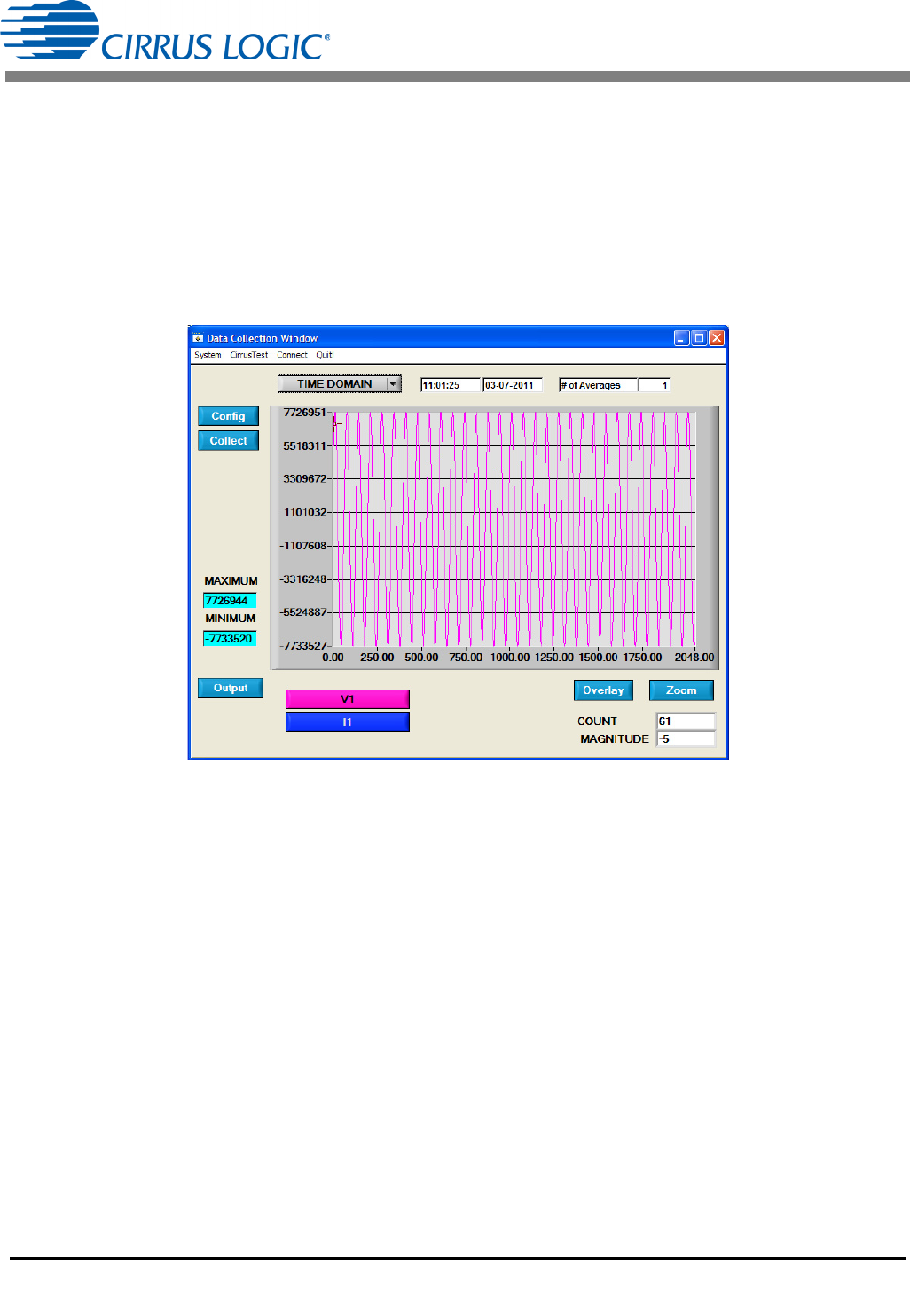

Figure 29. Time Domain Analysis
