CDB5480U
DS893DB5 29

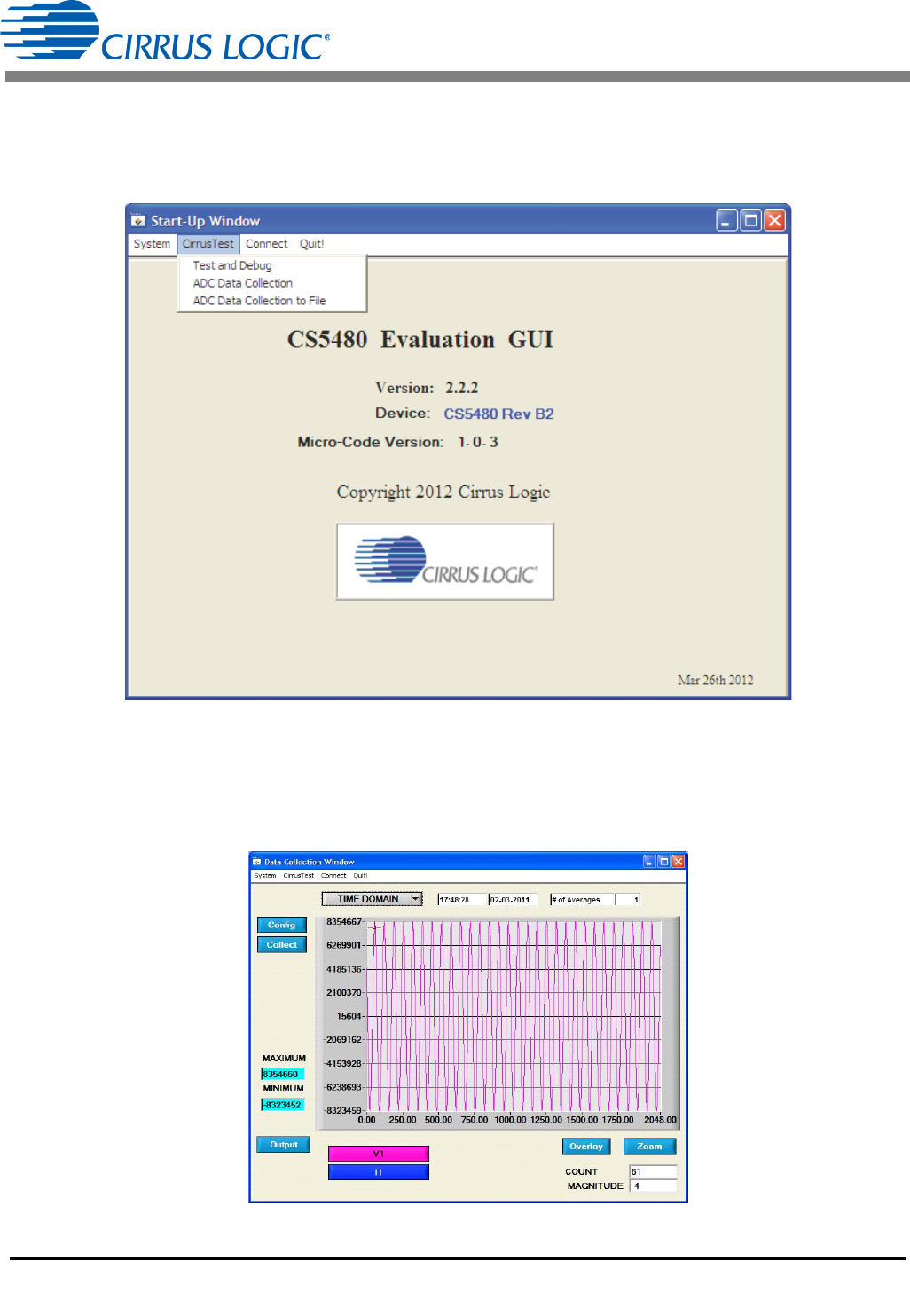

2.8 Cirrus Test Window
The Cirrus Test window provides three options: Test and Debug, ADC Data Collection, and ADC Data
Collection to File. Each window provides a means to evaluate the different functions and performance of
the CS5480. See Figure 22.
Figure 22. Cirrus Test Pull-down Options
2.8.1 Data Collection Window
The Data Collection window allows the user to collect sample sets of data from the CS5480 and analyze
them using time domain, FFT, and histogram plots. The Data Collection window can be accessed by
pulling down the CirrusTest menu, and selecting the ADC Data Collection item. See Figure 23.
Figure 23. Data Collection Window
