CDB5480U
DS893DB5 21
2.5.1 Setup Window
The evaluation software provides access to the common CS5480's internal registers through the Setup
window. See Figure 19. Enter the Setup window by selecting the Setup CS5480 item from the System
menu.

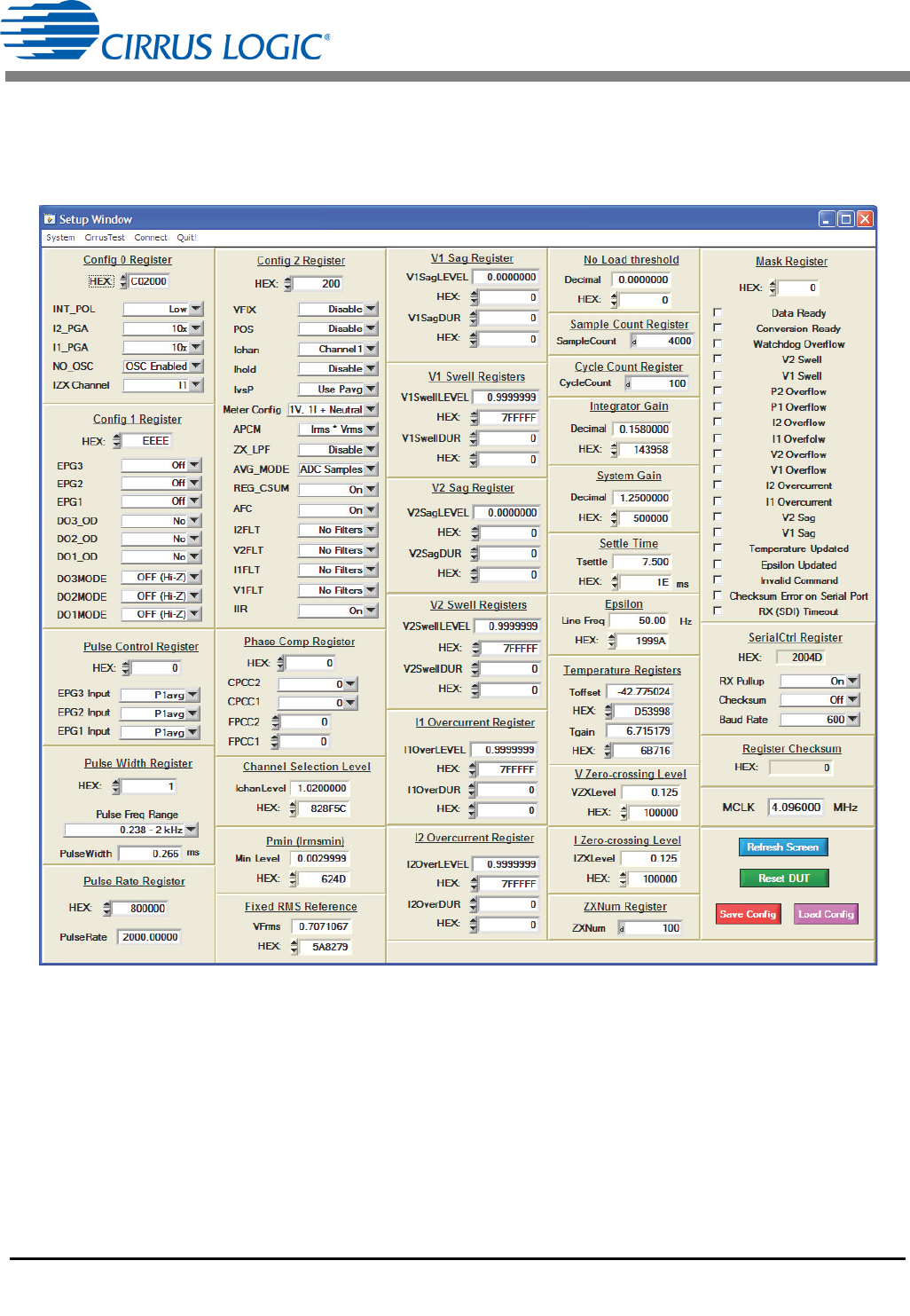

Figure 19. Setup Window
The Setup window displays all of the common CS5480 registers in hexadecimal notation and are decoded
to provide easier readability. Refer to the CS5480 data sheet for information on register functionality and
definitions. The Setup window is segmented by function. Each subsection may contain more than one
CS5480 register in order to configure a particular function. Updating the hexadecimal value of a register
will change the definitions display according to the new hexadecimal value of the register(s). Likewise,
updating the definitions displayed from the list boxes will update the hexadecimal value(s) of the
associated register(s).
